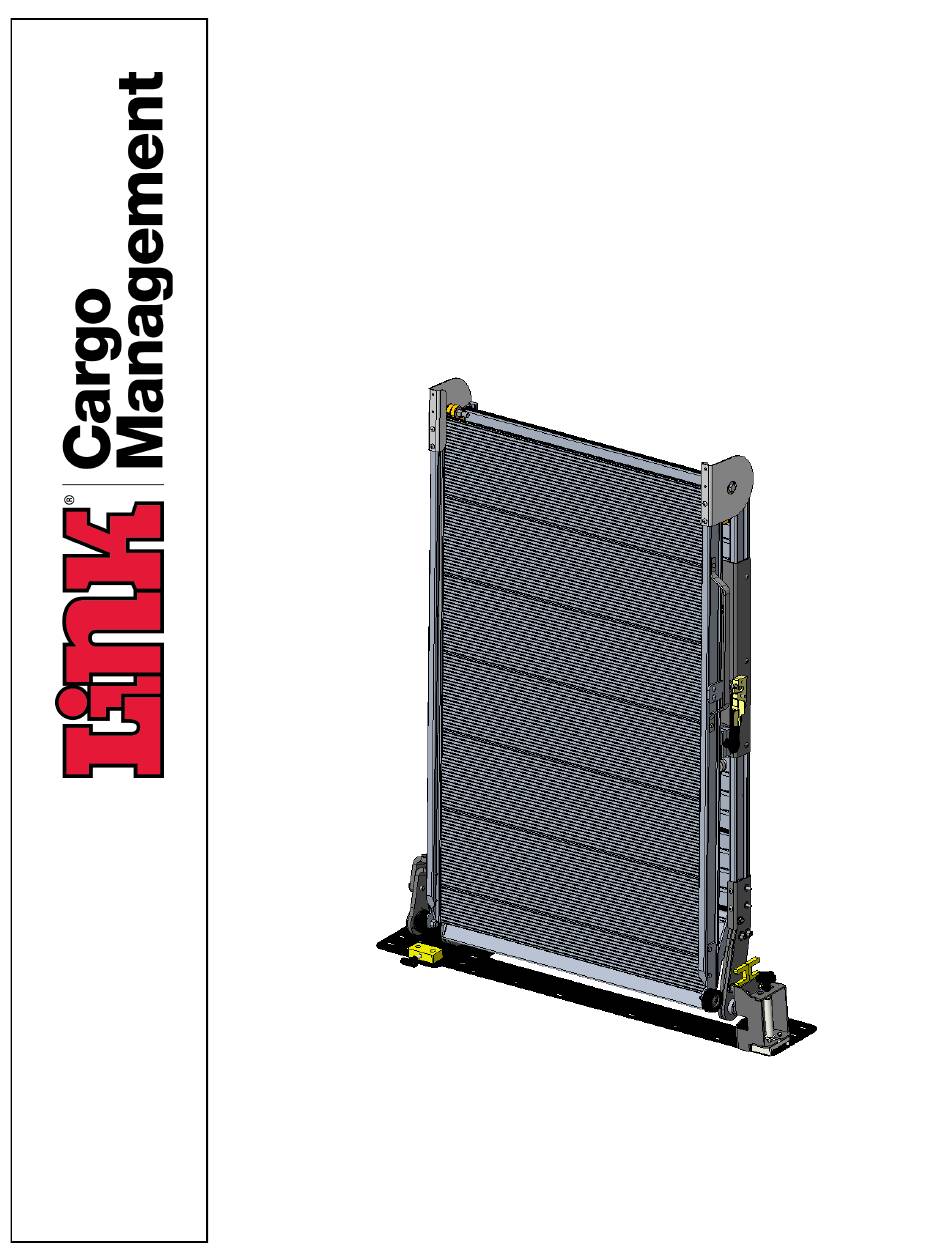

- Page 1 INSTALLATION INSTRUCTIONS LSR90 SERIES RAMPS Link Mfg. Ltd. 223 15th St. N.E. Sioux Center, IA USA The LSR 90 fits full sized cargo vans and box trucks. 51250-2120 www.linkmfg.com QUESTIONS? CALL CUSTOMER SERVICE 1-800-222-6283 78593004 5/18/22...
- Page 2 1. INTRODUCTION Thank you for choosing a Link Cargo Management Products LSR90 Ramp. We want to help you to get the best results from the ramp and to operate it safely. This manual contains information to assist you with its installation.
- Page 3 4. Installation Note: Installation of the LSR90 will vary depending the vehicle model and configuration. Due to variables in vehicles, the fit of the LSR90 should be evaluated before beginning the installation. Some vehicles with a spare tire winch hoist will have a crank insert location in the rear of the vehicle. Do not mount the ramp plate over this feature unless losing access to it is acceptable in your application.
-
Page 4: Base Plate
RAMP HARDWARE INSTALL BOLT WASHER NOTE: ONLY USE SPACER IF THE BOLT HOLE IS BETWEEN THE FLOOR RIBS BASEPLATE SPACER VAN FLOOR FLOOR WASHER FIG. 3 INSIDE CATCH HARDWARE INSTALL BOLT WASHER INSIDE CATCH NOTE: ONLY USE SPACER IF THE BOLT HOLE IS BETWEEN THE FLOOR RIBS SPACER VAN FLOOR... - Page 5 RAMP LEVELING ADJUSTMENT PROCEDURE With the ramp in the folded upright position. Using a 5/8” wrench turning counter clockwise loosen the two 7/16” bolts two full turns.
- Page 6 RAMP LEVELING ADJUSTMENT PROCEDURE CONT. Using the same 5/8” wrench turn the top bolt clockwise to raise the ramp and counter clockwise to lower the ramp. Turning clockwise tighten the two 7/16” bolts...
-
Page 7: Installation Fasteners
INSTALLATION FASTENERS ITEM DESCRIPTION 1/4 X 1 3/4 UNC HEX CAP SCR 1/4 UNC HEX NYLOCK NUT 1/2 UNC FLANGE NUT 1/4 WASHER 1/2 WASHER WASHER-FLOOR SUPPORT SPACER-MOUNT SUPPORT- UNDER FLOOR, INSIDE CATCH SUPPORT- UNDER FLOOR, INSIDE CATCH 1/2 X 2 3/4 UNC BUTTON HD CAP SCR... - Page 8 1/2 TYPE A PLAIN WASHER WASHER-FLOOR SUPPORT SPACER-MOUNT SUPPORT- UNDER FLOOR, INSIDE CATCH SUPPORT- UNDER FLOOR, INSIDE CATCH ASSEMBLY-INSIDE CATCH 1/2 X 2 3/4 UNC SOCKET BUTTON HD CAP SCR LINK MANUFACTURING, LTD. 223 15TH ST. NE, SIOUX CENTER, IA 51250 1-800-222-6283 www.linkmfg.com...
