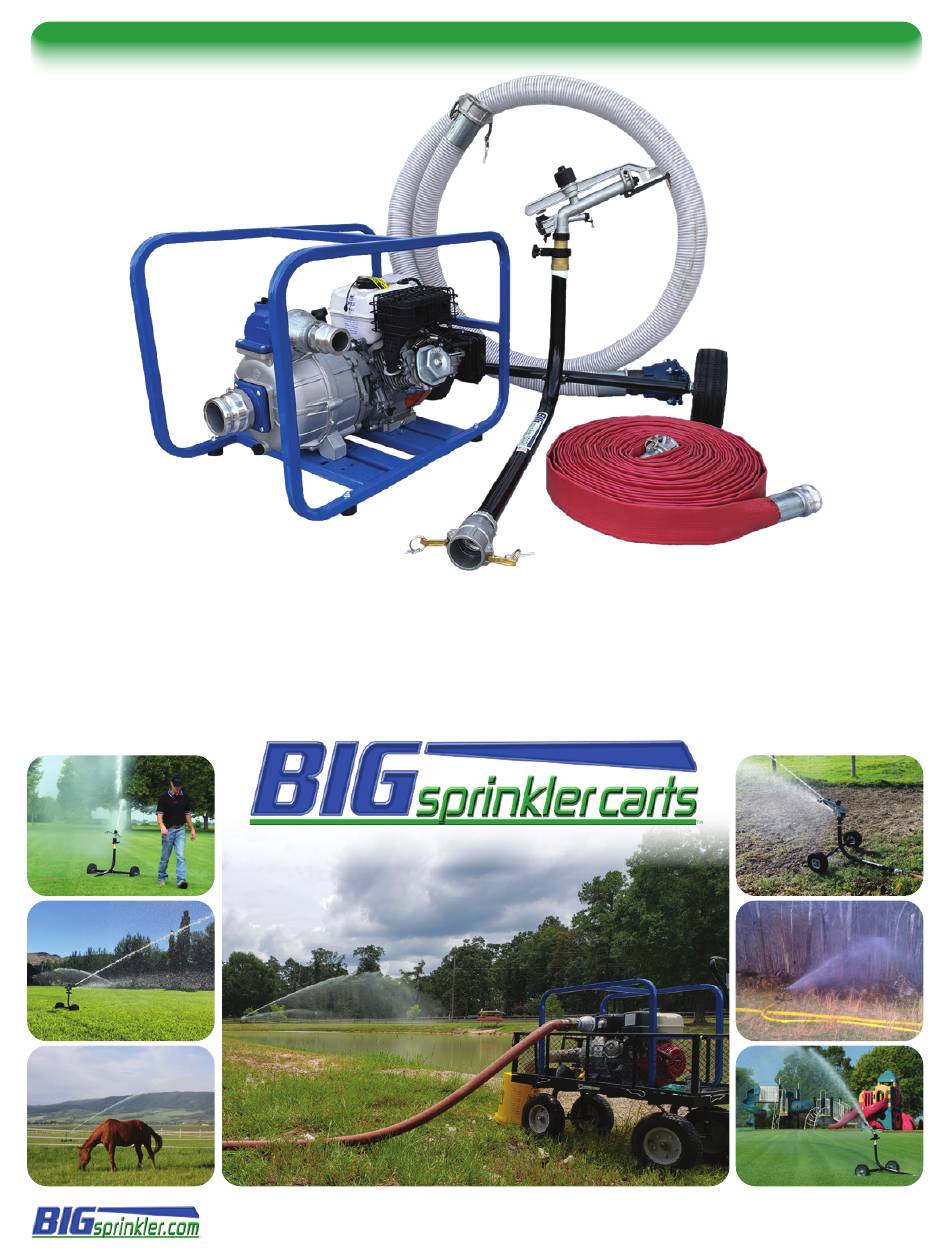

1500H Complete Irrigation Pump Kit
Thank you for purchasing a new BigSprinkler irrigation kit.
This kit is a quick and easy solution
for irrigating larger areas such as gardens, yards, playgrounds, sports fields, horse arenas,
acreages, and much more!
The following manual is a guide for assembly, setup, and operation of your new BigSprinkler
cart and pump. Please read and follow all instructions carefully.
15250 W. Sunshine Road · Yukon, OK 73099 · 1-855-805-7901
Advertisement
Related Manuals for Big Sprinkler 1500H
Summary of Contents for Big Sprinkler 1500H
- Page 1 1500H Complete Irrigation Pump Kit Thank you for purchasing a new BigSprinkler irrigation kit. This kit is a quick and easy solution for irrigating larger areas such as gardens, yards, playgrounds, sports fields, horse arenas, acreages, and much more! The following manual is a guide for assembly, setup, and operation of your new BigSprinkler cart and pump.
-
Page 2: Kit Contents
Kit Contents 1 - 9 HP Honda High Pressure Pump 1 - 1250H Wheeled Sprinkler Irrigation Cart 1 - 100 Ft. Discharge Hose (red) 1 - 15 Ft. Suction Hose Assembly w/ Screen (Clear w/ Grey Helix) - Page 3 Cart Assembly Instructions Please read this manual carefully and follow all safety and assembly instructions below to ensure that your cart is assembled correctly and operates properly upon start-up. If you have any questions please call 405-354-6925. Safety Safety is the main priority and failure to follow these instructions may cause serious injury. BigSprinkler.com is not responsible for product failure, property damage, or personal injury if these procedures and operation instructions are not followed.
- Page 4 Cart Assembly Instructions STEP 1) BODY & AXLE ASSEMBLY Unpack contents from box. The sprinkler cart is shipped with four main components: axle assembly, wheels, cart body, and sprinkler head. First, assemble axle assembly to main body (left image) with the two 3/8”...
- Page 5 Cart Assembly Instructions STEP 3) INSTALLING THE IMPACT SPRINKLER HEAD First, remove the thread protector cap to expose the taped threads, do not remove white thread tape. Place the bottom of the sprinkler on top of the threads and slowly turn clockwise. NOTE: Make sure to begin slowly so that the threads start correctly.
- Page 6 Sprinkler Head Settings The sprinkler head supplied with your cart is a fully adjustable sprinkler that will operate in a full circle pattern or any part of a circle by adjusting the stops at the base of the sprinkler. Refer to the instructions below to set sprinkler head to the desired operating pattern.
- Page 7 Pump Start-Up Instructions Step 1) After contents of kit have been unpacked and assembled, unroll red discharge hose that has been supplied with your kit and make sure there are no twists in the hose and that it is laying flat on the ground. Connect the female end of the discharge hose to the pump discharge port and connect the opposite end to the sprinkler cart.
-
Page 8: Performance Chart
Sprinkler Cart Charts Notice: These specifications are to be used as a guide only and have been calculated at zero wind condi- tions. Performances can vary due to pressure, terrain, wind, and field conditions. 3” High Pressure Self-Priming Irrigation Pump Performance Chart Notice: These specifications are to be used as a guide only and have been calculated at zero wind conditions. -
Page 9: Limited Warranty And Remedy
Warranty LIMITED WARRANTY AND REMEDY: WARRANTY BigSprinkler warrants to the original purchaser only of the products described in the face hereof as of the date of the original invoice, that the product is merchantable and free from defects in material and workmanship. Warranty shall be provided by the original manufacturer of products sold on BigSprinkler for the length of time specified by the manufacturer of the given product.
