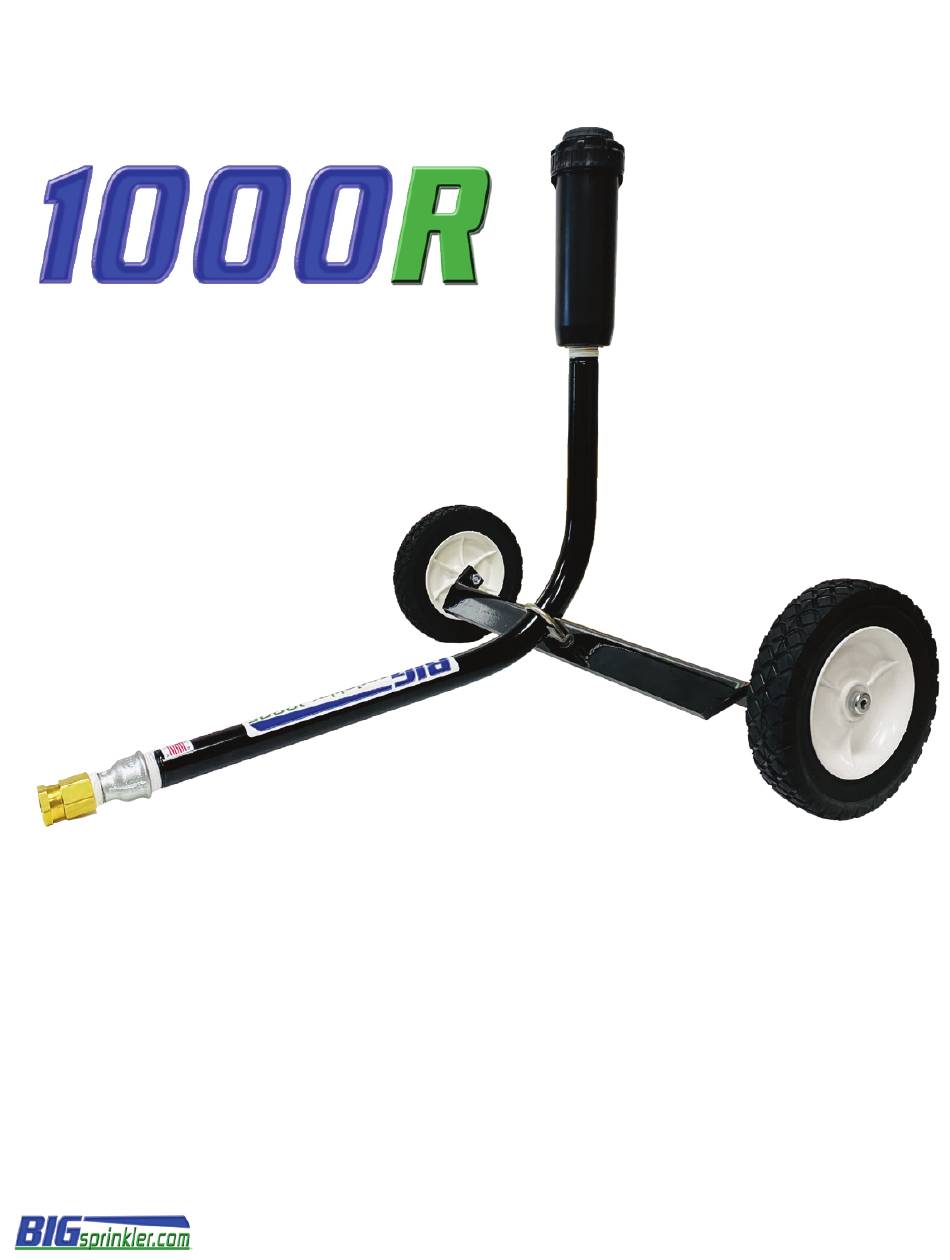

1000R Wheeled Sprinkler Cart
Thank you for purchasing the 1000R Wheeled Sprinkler Cart from BigSprinkler.com
. This sprinkler cart
TM
is an excellent and affordable option for irrigating a variety of areas such as a small or large lawn, gardens,
playgrounds, natural and artificial sports fields, horse arenas or round pens for dust control, and much
more. Our carts are fabricated with care and precision in our Yukon, Oklahoma facility with quality heavy
duty components.
The following manual is a guide for assembly, setup, and operation of your new BigSprinkler
cart. Please
TM
read and follow all instructions carefully.
We also offer accessories such as 3/4" garden hoses, larger pre-made hose kits with quick connects for
easy hook-up and booster pumps that will greatly enhance pressure and performance for your sprinkler cart.
15250 W. Sunshine Road | Yukon, OK 73099 | 1-855-805-7901
Advertisement
Related Manuals for Big Sprinkler 1000R
Summary of Contents for Big Sprinkler 1000R
- Page 1 1000R Wheeled Sprinkler Cart Thank you for purchasing the 1000R Wheeled Sprinkler Cart from BigSprinkler.com . This sprinkler cart is an excellent and affordable option for irrigating a variety of areas such as a small or large lawn, gardens, playgrounds, natural and artificial sports fields, horse arenas or round pens for dust control, and much more.
- Page 2 Cart Assembly Instructions Please read this manual carefully and follow all safety and assembly instructions below to ensure that your cart is assembled correctly and operates properly upon start-up. If you have any questions please call 855- 805-7901. Safety Safety is the main priority and failure to follow these instructions may cause serious injury. BigSprinkler.com is not responsible for product failure, property damage, or personal injury if these procedures and operation instructions are not followed.
- Page 3 Cart Assembly Instructions STEP 1) BODY & AXLE ASSEMBLY First, assemble the axle to the main body. Place (1) flat washer on each of the threaded ends of the u- bracket on the body. Next, align and insert the threaded ends of the u-bracket on the main body through the 2 holes in the axle.
- Page 4 Cart Assembly Instructions STEP 3) INSTALLING THE IMPACT SPRINKLER HEAD First, remove the thread protector cap to expose the taped threads, do not remove white thread tape. Place the bottom of the sprinkler on top of the threads and slowly turn clockwise. NOTE: Make sure to begin slowly so that the threads start correctly.
-
Page 5: Arc Adjustment
Arc Adjustment (i f or der ed w i t h par t cir cle spr ink ler) The internal spring has been removed in order for the Rotor head to NOTE: operate with lower pressures. This will not change the sprinklers performance. Arc Adjustment The arc is adjustable from 40 - 360... - Page 6 Falcon Rotor Sprinkler Head Settings Nozzle Retainer Screw which also acts Pull Up Slot—Insert as the radius adjustment to diffuse the rotor tool here and spray pattern and decrease sprinkler turn 90 degrees throw. to pull stem up and change nozzle size. CAUTION: Always use black plastic hold up tool when changing nozzles.
- Page 7 1000R Sprinkler Cart Chart Notice: These specifications are to be used as a guide only and have been calculated at zero wind conditions. Performances can vary due to pressure, terrain, wind, and field conditions.
-
Page 8: Warranty
Warranty LIMITED WARRANTY AND REMEDY: WARRANTY BigSprinkler.com warrants to the original purchaser only of the products described in the face hereof as of the date of the original invoice, that the product is merchantable and free from defects in material and workmanship. Warranty shall be provided by the original manufacturer of products sold on BigSprinkler.com for the length of time specified by the manufacturer of the given product.
