Series BDF
Large
Displays

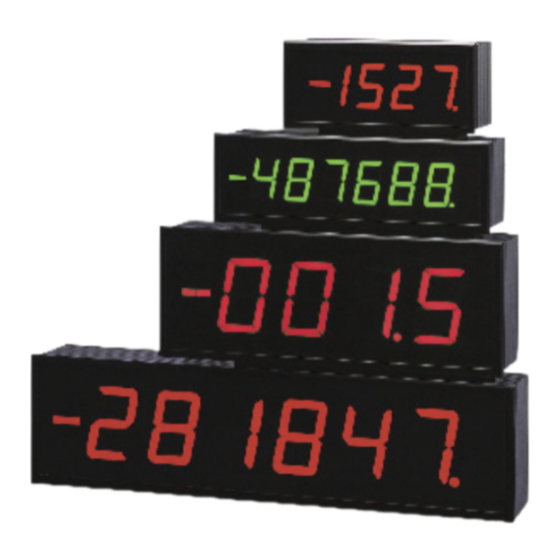

Large Displays for Temperature
BDF-xx-21
BDF-xx-22
BDF-xx-23
BDF-xx-24
BDF-xx-25
BDF-xx-26
BDF-xx-27
BDF-xx-28
IDEAL SOLUTION for reading temperature values at long distances from standard
«Pt100 / RTD» probes and «Thermocouples» signals. Very strong housing and
electrically protected units, designed for all type of industrial applications.
USER'S MANUAL
(1272R01)
for Pt100 / RTD probes
for thermocouple J
for thermocouple K
for thermocouple T
for thermocouple E
for thermocouple S
for thermocouple R
for thermocouple L
Advertisement
Related Manuals for Fema Electronica BDF Series
Summary of Contents for Fema Electronica BDF Series
- Page 1 Series BDF Large Displays Large Displays for Temperature BDF-xx-21 for Pt100 / RTD probes BDF-xx-22 for thermocouple J BDF-xx-23 for thermocouple K BDF-xx-24 for thermocouple T BDF-xx-25 for thermocouple E BDF-xx-26 for thermocouple S BDF-xx-27 for thermocouple R BDF-xx-28 for thermocouple L IDEAL SOLUTION for reading temperature values at long distances from standard «Pt100 / RTD»...
-
Page 2: Order Reference
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Models 21 to 28 Large displays for Pt100 and Thermocouple probes The BDF series of large displays for temperature signals is mocouples. It is recommended to connect the thermocouple composed of instruments model «21» for «PT100 / RTD»... -
Page 3: Front View
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Models Front view MODEL BDF-xx-21 .- Temperature display for «RTD/ PT100» probes in 2 and 3 wire systems, with automatic compensation for the ohmic wire resistance up to 10 Ohms. Sensor curve linearized according to IEC751-DIN43760 MODEL BDF-xx-22 .- Temperature display for Thermo-... -
Page 4: General Specifications
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Model 21 for Pt100 General specifications DISPLAY 4 digits in red color Model 7 segments Led type Sensor PT100 negative sign«-» Temperature -100.0 a +650.0 ºC digit 57mm (2,3”) with BDF-24 Series Accuracy 0.4% ±1 digit digit 100 mm (4”) with BDF-44 Series... -
Page 5: Control Board
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Control board Instrument recalibration On the «Control Board» is placed the «Input Module», and In case a recalibration of the reading values for the displays the jumpers for «Decimal Point» selection. is needed, generate the desired signal at the input terminals Note - Do not operate the potentiometers placed on the (with a «Pt100/RTD»... -
Page 6: Mechanical Dimensions
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Mechanical dimensions Panel cut-out and weights Size 24 Size 24 weight 4 digits 57mm 264mm 120mm 112mm 4 digits 57mm 256mm 112mm 2.3 Kg (2’’) (10,40’’) (4,75’’) (4,41’’) (2’’) (10,07’’) (4,40’’) -
Page 7: Warranty
User’s Manual BDF-xx-20, 21, 22, 23, 24, 25, 26, 27 and 28 Warranty CE Declaration of conformity Manufacturer FEMA ELECTRÓNICA, S.A. All instruments are warranted against all manufacturing Altimira 14 - Pol. Ind. Santiga defects for a period of 24 MONTHS from the shipment date. E08210 - Barberà... - Page 8 other products Panel Meters Panel Meters Panel Meters Standard 96x48mm Small 72x36 mm Miniature 48x24 mm Large Displays Signal Converters Panel Meters 60 & 100 mm digit & Isolators Standard 96x48mm www.fema.es ELECTRONIC INSTRUMENTATION FOR INDUSTRY FEMA ELECTRÓNICA, S.A. Altimira 14 - Pol. Ind. Santiga E08210 Barberà...
