Fema Electronica BDF Series User Manual

Large displays for parallel bcd code. repeater for parallel bcd
Hide thumbs Also See for BDF Series:
Table of Contents

Advertisement

Quick Links

Download this manual

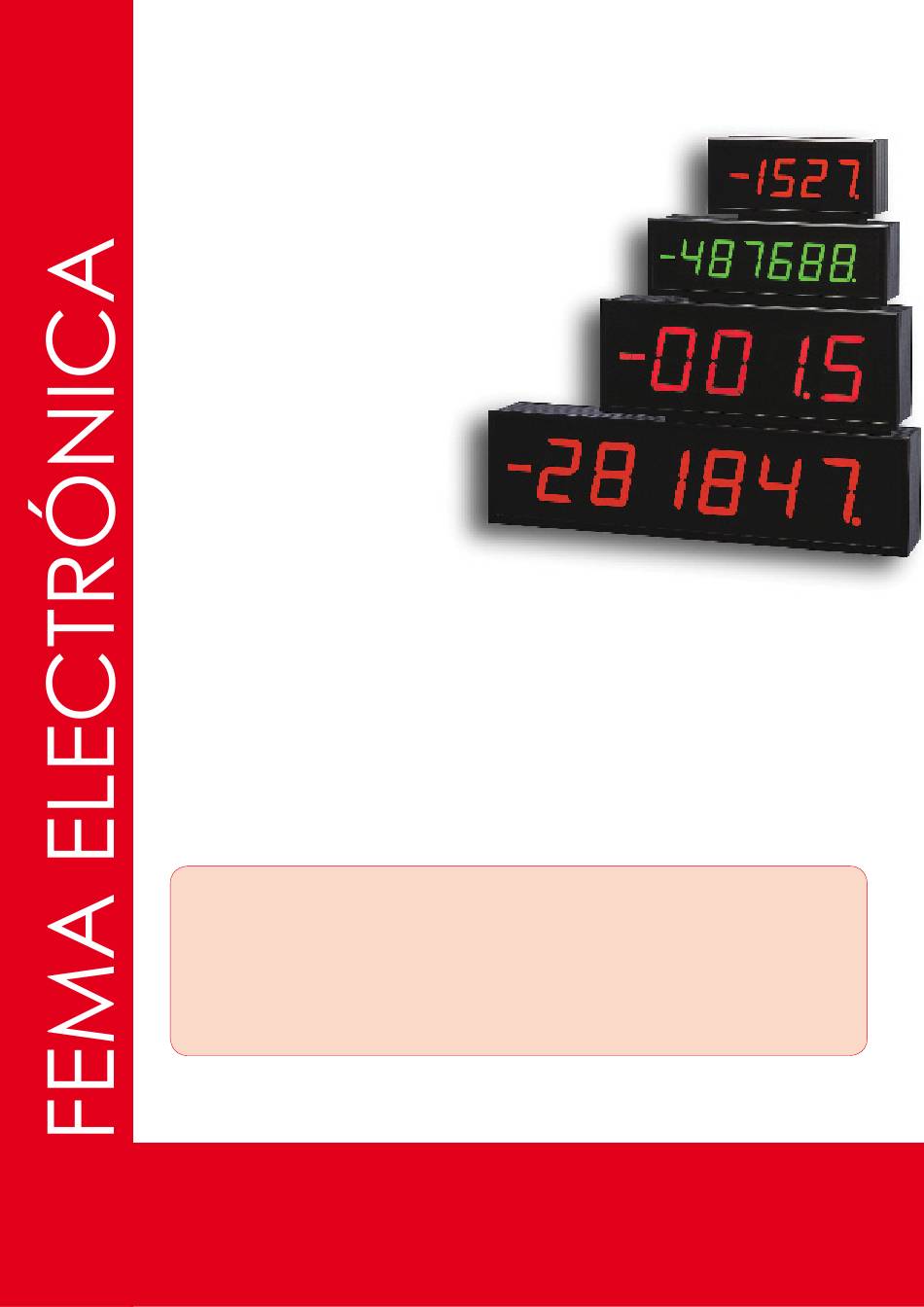

Series BDF
Large
Displays

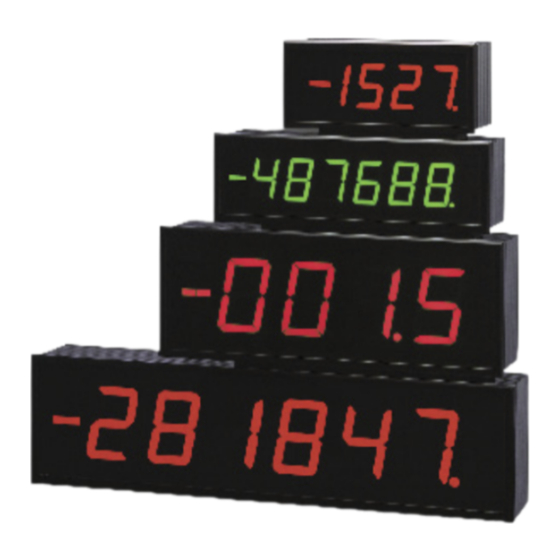

Large Displays for parallel BCD code
BDF-xx-BCD
IDEAL SOLUTION to display numerical values at long distances,
controlled by parallel BCD signal, in 4 and 6 digits format. Very strong
housing and electrically protected units, designed for all type of industrial
applications.
USER'S MANUAL
(1279R01)
Repeater for parallel BCD

Advertisement

Table of Contents
loading

Related Manuals for Fema Electronica BDF Series

Summary of Contents for Fema Electronica BDF Series

  • Page 1 Series BDF Large Displays Large Displays for parallel BCD code BDF-xx-BCD Repeater for parallel BCD IDEAL SOLUTION to display numerical values at long distances, controlled by parallel BCD signal, in 4 and 6 digits format. Very strong housing and electrically protected units, designed for all type of industrial applications.

  • Page 2: Order Reference

    Model BCD Large displays for parallel BCD code The BDF series of large displays for parallel BCD signal is The mechanical of the BDF instruments is a very strong and available in 4 and 6 digits format with 57mm or 100mm digit sturdy aluminium housing anodized in black color, for panel height.

  • Page 3: Front View

    User’s Manual BDF-xx-BCD Front view General specifications Digit 1 DISPLAY 4 or 6 digits in red color 7 segment Led Negative sign reading from -9999 to 9999 in 4 digits reading from -999999 to 999999 in 6 digits decimal point selectable digit 57 mm (2,3”) in BDF-24 and BDF-26 digit 100 mm (4,0”) in BDF-44 and BDF-46 antirreflexive front filter...

  • Page 4: Signal Connections

    User’s Manual BDF-xx-BCD Signal connections Signal connections at male SUB-D connector available at Digit X BCD Value Display the rear of the instrument. D C B A Each digit has 4 connection lines (ABCD) for its BCD code, 0 0 0 0 1 «Hold»...

  • Page 5: Power Supply Connections

    User’s Manual BDF-xx-BCD Power supply connections The power connector allows one terminal for earth and two power terminals. Internal fuse is integrated on the connector and an additional fuse is available as a spare part. The value of the fuses depends on the power supply, and is according to rule IEC127/2 230 Vac - 200 mA fuse time-lag 115 Vac - 400 mA fuse time-lag...

  • Page 6: Mechanical Dimensions

    User’s Manual BDF-xx-BCD Mechanical dimensions Panel cut-out and weights Size 24 Size 24 weight 4 digits 57mm 256mm 112mm 2.3 Kg 4 digits 57mm 264mm 120mm 112mm (2’’) (10,07’’) (4,40’’) (5 lbs) (2’’) (10,40’’) (4,75’’) (4,41’’) Size 44 Size 44 weight 4 digits 100mm 472mm...

  • Page 7: Warranty

    User’s Manual BDF-xx-BCD Warranty CE Declaration of conformity Manufacturer FEMA ELECTRÓNICA, S.A. All instruments are warranted against all manufacturing Altimira 14 - Pol. Ind. Santiga defects for a period of 24 MONTHS from the shipment date. E08210 - Barberà del Vallès This warranty does not apply in case of misuse, accident or BARCELONA - SPAIN manipulation by non-authorized personnel.
  • Page 8 other products Panel Meters Panel Meters Panel Meters Standard 96x48mm Small 72x36 mm Miniature 48x24 mm Large Displays Signal Converters Panel Meters 60 & 100 mm digit & Isolators Standard 96x48mm www.fema.es ELECTRONIC INSTRUMENTATION FOR INDUSTRY FEMA ELECTRÓNICA, S.A. Altimira 14 - Pol. Ind. Santiga E08210 Barberà...

This manual is also suitable for:

Bdf-bcd series
