Summary of Contents for haTmed Q50B

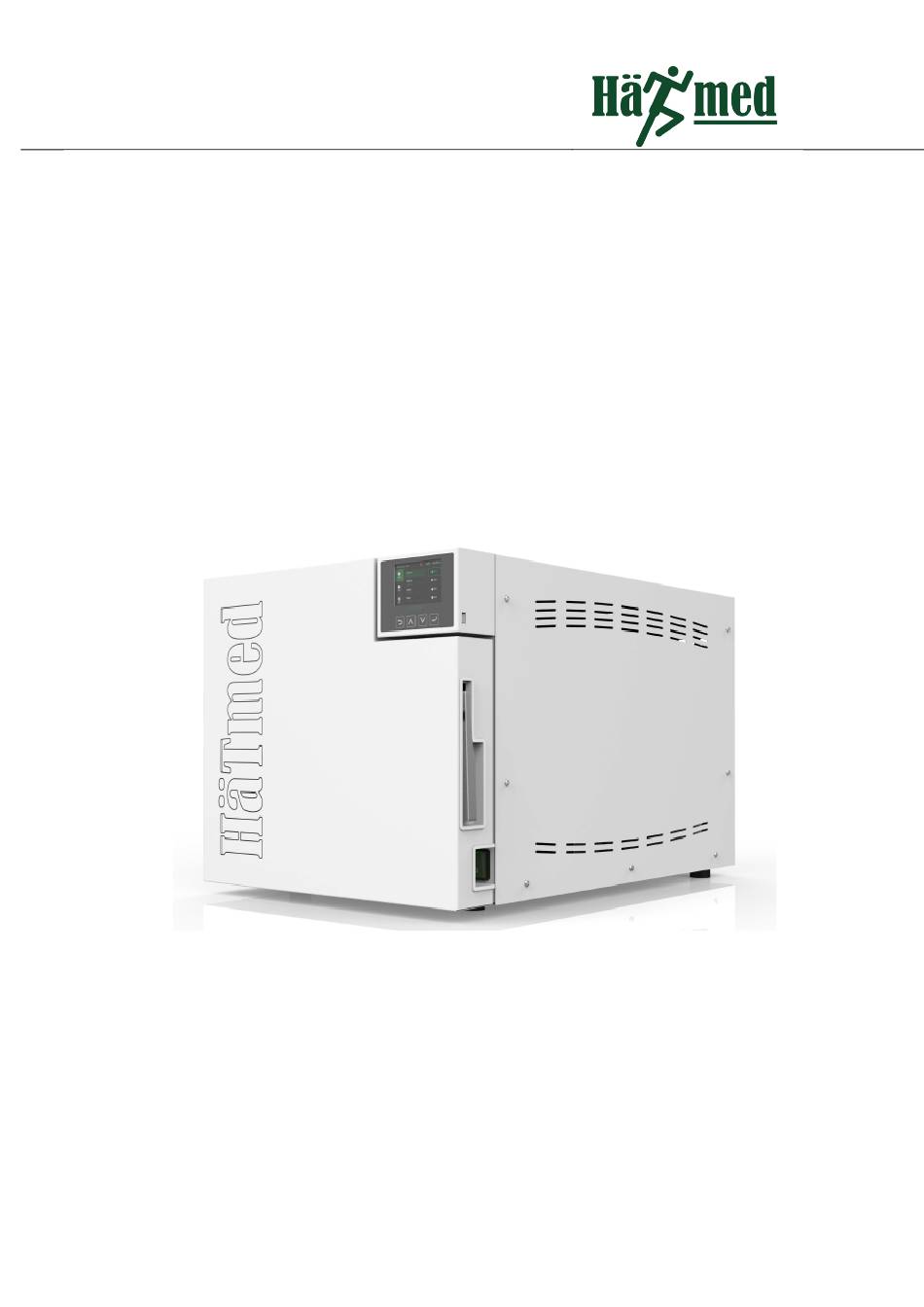

- Page 1 Installation and User Manual Q50B、Q70B H ӓ Tmed (Wuxi) Co., Ltd...
-
Page 2: Scope Of Application
FOREWORD Thank you for using the Q61B small steam sterilizer. This manual describes in detail the installation process, use preparation, standard operation, safety precautions, and maintenance of the Q61B small steam sterilizer . In order to enable you to use this product efficiently and safely, please read the installation and operation manual carefully before use. -
Page 3: Safety Instructions
Logo on the product: logo illustrate Be careful of burns the manufacturer of this medical device . the medical device was manufactured. The unique serial number assigned to this medical device by the manufacturer . The name and address of the authorized agent of this product in the European Union. - Page 4 liquid Ø Do not use this product to sterilize any liquid. sterilization Ø Operators who use this product to sterilize instruments and fabrics must professional be trained professionals. Ø Do not replace the power cord or power plug. Do not use a damaged power cord or power plug.
-
Page 5: Program Introduction
terminated. Loaded items should be repacked for sterilization if necessary. Ø Do not use force to open the door. Ø Use the tray handle to remove the tray. Do not touch the sterilized loaded take out the items, cavity and door cover with bare hands to avoid burns. load Ø... - Page 6 √ √ √ √ √ √ √ no load √ √ √ √ √ √ solid load A small amount of porous and √ √ √ √ permeable mixed load small amount of porous √ √ √ √ √ permeability load Fully loaded porous √...
-
Page 7: Table Of Contents
DIRECTORY Device Description ........................... - 1 - product view ..........................- 1 - 1.1.1 Front view ..........................- 1 - 1.1.2 side view ..........................- 1 - Rear view ..........................- 2 - 1.1.3 inner view ..........................- 2 - 1.1.4 Technical Parameters ....................... - Page 8 automatic setting ........................- 36 - 7.1.1 Automatic preheat setting ....................- 36 - 7.1.2 Automatic print settings ...................... - 37 - 7.1.3 Water quality testing settings ....................- 37 - 7.1.4 extra dry setting ........................- 37 - system settings ........................- 39 - 7.2.1 Modify user password ......................
-
Page 10: Device Description
Device Description product view 1.1.1 Front view Display screen Figure 1.1 Front view 1.1.2 side view Door handle Switch - 1 -... -
Page 11: Rear View
Figure 1.2 Side view 1.1.3 Rear view Test interface Printer interface Safety valve Emergency door opener Power outlet Air intake Heat sink Pure water inlet Waste water outlet Figure 1. 3 rear view 1.1.4 inner view - 2 -... - Page 12 Switch Figure 1.4 Internal view - 3 -...
-
Page 13: Technical Parameters
Technical Parameters parameter name Q50B Q70B physical dimension 560mm*450mm*470mm 680mm*450mm*470mm Package Size 688mm*576mm*688mm 806mm*576mm*688mm Cavity size Φ253mm*355mm Φ253mm*475mm Sterilization chamber 18 L 23 L volume Pressure Vessel Weight 4.8 kg 6.2 kg equipment weight 59.6 kg 64.8 kg Software version Working pressure is less than 0.25Mpa... -
Page 14: Operation Buttons And Menu Introduction
parameters, a fault message will be generated immediately to ensure safety and sterilization during the sterilization process. bacteria quality. realizes simple and efficient operation through an LCD screen and 4 buttons. 1.4.1 Operation buttons and menu introduction 4 buttons in different situations is as follows. button position (face up from left to right) -
Page 15: Emergency Door Opener
(The main page can be switched between the three-level menus by pressing the button ) There is also a USB disk insertion mark in the interface to display the USB access status. status flag illustrate U disk status Indicates the state of the U disk : inserted U disk status Indicates the state of the U disk : not inserted There is also a door lock mark on the interface to display the door lock status. -
Page 16: Vacuum Test
standard sterilization program is repeated 3 times, the Helix program and the 134+ program are repeated 4 times. The pre-vacuum is followed by a heating phase. Steam is continuously injected into the chamber, and the temperature and pressure in the chamber 2. -
Page 17: Installation And Handling Instructions
Installation and Handling Instructions Precautions for unpacking Installation, setup and commissioning should be performed by professionals authorized by the manufacturer of this product. If the product is stored in different places before unpacking, it will take a while before it can be installed and turned on for use. During the process of moving from a place with low temperature to a place with high temperature, the electronic components inside the device will contain water vapor. -
Page 18: Equipment Height Adjustment
Equipment height adjustment Take out the spirit level from the accessory bag and place it at the horizontal position on the top of the product . Adjust the two front pads so that the front of the product is slightly higher than the rear , and the bottom and the table are clamped at 5°-10°... -
Page 19: Waste Water Connection
connect the other end to the distilled water interface on the back of the product , and tighten it. Fill the distilled water tank or bucket with fresh distilled water before using this product . Distilled water is generally stored in the standard distilled water tank with a capacity of 12L, and the whole tank of distilled water can be sterilized up to 20 times. -
Page 20: Handling Instructions
Handling instructions This product should be kept at a humidity of less than 85% and a temperature of -20 C ~ 55 Store and transport under C. this product , perform the drainage procedure first, remove all the pipes on the back (distilled water pipes and drain pipes), and if a printer is connected, remove the printer data cable. -
Page 21: First Time Using
first time using start up Toggle the power switch to turn it on. The power switch position is in the lower right corner of the internal view of the product. Ø Before using for the first time, please be sure to remove the latex plug at the air filter installation hole on the back of the product, and install the air filter included in the accessories. - Page 22 Press the or key to adjust the year, press the key to confirm, and enter the month setting, and press the key again to enter the day setting. After the date setting is completed, select the confirmation menu and press the key to enter the time setting.
- Page 23 Press the or key to adjust the time, and press the key to confirm. Time setting complete - 14 -...
-
Page 24: Switch Door
After the time setting is saved, enter the system home page. switch door Door opening operation: select the door opening menu in standby mode, click the button to open the door , the door lock mark in the system status bar will change status, indicating that the door lock has been opened, at this time, open the door handle on the right side of the front door panel of the product upwards 90 C left and right, then pull the door outward. -
Page 25: Sterilization Procedure
Sterilization procedure Loading items to be sterilized The random accessories of this product include tray rack and tray. The space inside the tray rack is a space that can be effectively sterilized, and the excess part is too close to the barrel wall to easily produce wet packages or burn the package. - Page 26 Simple solid instruments, quick transmission instruments, procedure > 3 1-99 hollow instruments. Packed instruments Express unpacked simple solid Procedure > 3 1-99 instruments. Heat-resistant prions _ instruments suspected of >20 1-99 program being infected by prions fabric the fabric > 1 5 1-99 program - 17 -...
-
Page 27: Sub-Menu
Select the sterilization program as follows: to select the desired Enter the second-level menu of sterilization on the home page, press sterilization program, and press the key to enter the third-level menu of the selected sterilization program. Press the or key to select the sterilization program, press the key to enter the submenu - 18 -... -
Page 28: Accessibility Options
Accessibility options 4.3.1 preheat setting The automatic preheating function can make the product reach the set temperature before the program starts, greatly reducing the time required for each sterilization. After turning on the automatic preheat setting, the chamber will automatically heat up to 110°C. Please be careful of burns! 4.3.2 print automatically After the automatic printing function is turned on and the product is correctly connected to the printer, the... - Page 29 The sterilization program operation process includes 3 stages, pre-vacuum, sterilization and drying. The controller monitors the operation of the equipment and the temperature and pressure in the cavity in real time, and displays relevant information on the screen. When the water quality is poor during the running of the program, the running interface will prompt the poor water quality Sterilization program name Current sterilization stage...
-
Page 30: Manual Stop
manual stop A running program can be stopped manually at any stage. If the sterilization process is stopped before drying begins, the load is not sterilized. If the sterilization process is stopped manually after drying has started, the load has been effectively sterilized but not sufficiently dried. For the case of full packaged items, the possibility of wet packs is very high, and these items will not be able to be stored, because aseptic storage requires high dryness of packaged items. - Page 31 Select the confirmation menu and press the button to stop the sterilization - 22 -...
-
Page 32: Sterilization Program Complete
Sterilization program complete the sterilization program ends normally , the screen displays the program end interface and the message of successful program operation. If the automatic printing function is set and a printer is connected, the product will automatically print the sterilization record. Click the key to open the door. - Page 33 Ø Do not touch the sterilized loaded items, cavity and door cover with bare hands to avoid burns; Ø Always use the tray handles to remove loads; Ø Balance the tray when removing it to prevent the contents from slipping off. Instruments or items with damaged packaging may not have been effectively sterilized and contact with these items could endanger the health of the operator or patient.
-
Page 34: Storage Of Sterile Items
Storage of sterile items The storage time of sterile packs after sterilization varies with the packaging material and storage conditions. It can be stored for up to 6 months under the conditions of full compliance with specifications, such as WS310- 2016 . -
Page 35: Functional Testing And Other Procedures
Functional testing and other procedures vacuum test When installing for the first time, after a long period of non-use, after moving, or during regular inspections, it is recommended to perform a vacuum test to detect the degree of leakage of the product system. The Tester menu is located under the More menu. Before the vacuum test, make sure that the temperature in the cavity is lower than 45°, and if the temperature is too high, a relevant high temperature prompt will be given on the running interface. - Page 36 The vacuum test should be carried out when the system Ø is cooled and the cavity is kept dry; In order for you to successfully complete the vacuum Ø test procedure, please check that the product door is closed and the cooling water valve is open before starting the procedure.
- Page 37 minute balance time is started. After the balance time is over, a 10-minute vacuum test is started. After the test is completed, the system returns to to normal pressure. After the vacuum test is over, the system will prompt the result on the program end interface and save the record in the memory.
-
Page 38: B &D Testing
Ø If the vacuum test fails, do not continue to use the product and contact the manufacturer or authorized dealer immediately. B &D testing B &D test is used to check the steam permeability of this product to porous porous loads, such as cotton fabrics. Select B &D test in the test program interface . - Page 39 terminated, this situation is likely to occur, please open the door to check; Ø Use the drain procedure before handling this product. - 30 -...
-
Page 40: Device Settings
device settings Enter the device setting interface to set the date and time , language setting , view device information and view machine operation information . Entering the user setting menu needs to enter the user password. Date and Time Settings Enter the date setting menu, the date setting operation is as follows: At this time, press the keys to add and subtract the date information,... - Page 41 After the setting is completed, select the confirmation menu, press the save date setting, and automatically enter the time setting. At this time, press keys to add and subtract time information, and press keys to switch between hours and minutes. - 32 -...
-
Page 42: Language Settings
After the setting is completed, select the confirmation menu and press Save Time Setting. language settings Click the [ Language ] menu to enter the language setting interface, select the language through the and keys , and click to complete the setting. Select the language menu, press the key to enter the language setting. -
Page 43: Running Information
At this time, press the keys to select the language, and press to exit the language setting after the setting is completed . running information Running information can view the number of sterilizations that the equipment has currently run - 34 -... -
Page 44: User Settings
user settings Enter the user setting interface to perform automatic preheating, automatic printing, water quality testing, additional drying settings and password settings, system reset, pressure calibration, maintenance information viewing, and custom program parameter settings . Entering the user setting menu needs to enter the user password. Press the key to enter the password input. -
Page 45: Automatic Setting
After entering the password, press the key to enter the user setting. automatic setting Automatic settings can configure some common control options of the device. 7.1.1 Automatic preheat setting - 36 -... -
Page 46: Automatic Print Settings
The automatic preheating setting operation is as follows: Select the automatic preheating menu, and press the button to turn on and off. Figure 6.2 Automatic preheating setting After turning on the automatic preheat setting, the chamber will automatically heat up to 110°C. Please be careful of burns! 7.1.2 Automatic print settings The automatic print setting operation is the same as the automatic preheating setting... - Page 47 Select the extra drying menu, press the button to start the operation, and automatically enter the extra drying time setting after turning on. - 38 -...
-
Page 48: System Settings
Press the or key to adjust the time, and press the key to return, which means the default value is 8 minutes. After the setting is completed, select the confirmation menu and press Set system settings Enter the system setting interface to modify the user password , reset the system , and calibrate at normal pressure . -
Page 49: Modify User Password
7.2.1 Modify user password Modify the user password as follows: Select the modify user password menu, press the key to enter the user password setting. - 40 -... - Page 50 At this time, press the keys to set the password, and press to enter the next password setting after the setting is completed. At this time, press the keys to set the password. After the setting is complete, select the confirmation menu and press the key again to enter the new password.
-
Page 51: System Reset
7.2.2 system reset The system reset operation is as follows: - 42 -... - Page 52 Select the system reset menu and press the key to enter the system reset. At this time , press to select the confirmation menu, and press to reset the system. - 43 -...
- Page 53 - 44 -...
-
Page 54: Maintenance
Maintenance In the maintenance menu, you can check the date of the latest maintenance of the machine, the number of maintenance times, and the number of sterilization operations after maintenance - 45 -... -
Page 55: Sterilization Records
Sterilization records Sterilization records document and store real-time data at each stage of the sterilization process. The memory of this product can store up to two years of sterilization records. Sterilization records are named with serial numbers, such as: 0001.TXT , which can be exported through the USB interface or printed out through a micro-printer. -
Page 56: Export History
At this time, press keys to select the historical record to be viewed, and press to view the detailed information of the record. Press and to turn up and down records, press to select the export and print menu, press to print and export a current historical record. - Page 57 Select the Export menu button to export the records. - 48 -...
-
Page 58: Print History
Press the key during the export process to stop the export. Print history The operation of printing records is the same as exporting history records. Query history A time interval can be set to query historical data within this time period. - 49 -... - Page 59 Select the setting interval menu, press the key to enter and query the time setting. Press to adjust the time, press to enter the next setting. After the start time is set, press to enter the end time setting. - 50 -...
-
Page 60: Automatic Record Printing
After the end time is set, press Automatic record printing After the automatic printing function is turned on and the product is correctly connected to the printer, the sterilization record can be automatically printed after the program ends. Record interpretation The formats for printer output and sterilization records stored in internal memory are as follows - 51 -... - Page 61 - - - - - - - - - - - - - - - - Sterilizer - - - - - - - - - - - - - - - - Product number Cycle Date : 2023.04.17 Date Start Time : 12:57:27 start time run Cycle No.
-
Page 62: Maintenance Of Small Steam Sterilizer
Maintenance of small steam sterilizer Cleaning of Loaded Items before Sterilization Ø Before sterilization, the sterilization load such as mobile phones must be thoroughly cleaned; Ø The dust and pollutants separated in the sterilized load will cause blockage of filters, valves and pipelines, so the unwashed sterilized load is not allowed to enter the product for sterilization ;... -
Page 63: Regular Maintenance
Clean the filters at both Unscrew the nuts at both ends of the water inlet Sterilize ends of the cooling water pipe and rinse with clean water. times inlet pipe Clean the bottom filter of Sterilize wrench Unscrew the filter with a wrench and wash it with the sterilization chamber times clean water... -
Page 64: Troubleshooting And Common Problem Handling
² Check whether the power plug of this product is plugged in; ² If the screen still does not display, please contact an authorized hatmed dealer. 10.2 High consumption of distilled water Phenomenon: The distilled water consumption is much more than the specified amount. -
Page 65: Leakage At The Door Or Water Dripping From Below
Solution: ² Check if the air filter installation hole on the back is blocked; ² Disconnect the side panel, unplug the silicone tube connected to the air filter solenoid valve , and discharge the negative pressure in the cavity ; ²... -
Page 66: Precautions
Precautions 11.1 In order to ensure the safe use of the equipment, please be sure to cut off the power and water source before leaving work or for a long time (more than 8 hours) when it is unattended . 11.2 Only designated distributors are qualified to provide you with spare parts and after-sales service. -
Page 67: Appendix 1 Safety Device Description
Appendix 1 Safety device description In order to ensure the safe and reliable use of the system, a series of protection devices are used to protect key equipment. Preheating system over-temperature protection switch: The preheating system has an over-temperature protection switch. When the temperature exceeds the threshold temperature of the over-temperature protection switch, it will automatically disconnect the power circuit of the preheating system to realize the protection function of the preheating system. -
Page 68: Appendix 2 Piping System Schematic
Appendix 2 Piping System Schematic Piping System Schematic - 59 -... -
Page 69: Appendix 3 Electrical Schematic
Appendix 3 Electrical Schematic Electrical schematic diagram of small steam sterilizer - 60 -... - Page 70 Registrant/Manufacturer: HaeTmed (Wuxi) Co., Ltd. Registrant/Manufacturer Residence: 6F, C7, No.1699, Huishan Road, Wuxi, Jiangsu, China Manufacturing Address: 6F, C7, No.1699, Huishan Road, Wuxi, Jiangsu, China Manufacturing Date: See product label Recommended Period of Use: 8 Years Postcode: 214174 Tel: +86 510 66682078 Fax: +86 510 66682079 Email: info@haetmed.de Website:...
