Summary of Contents for Electrolux Frigidaire Gallery 900 Series

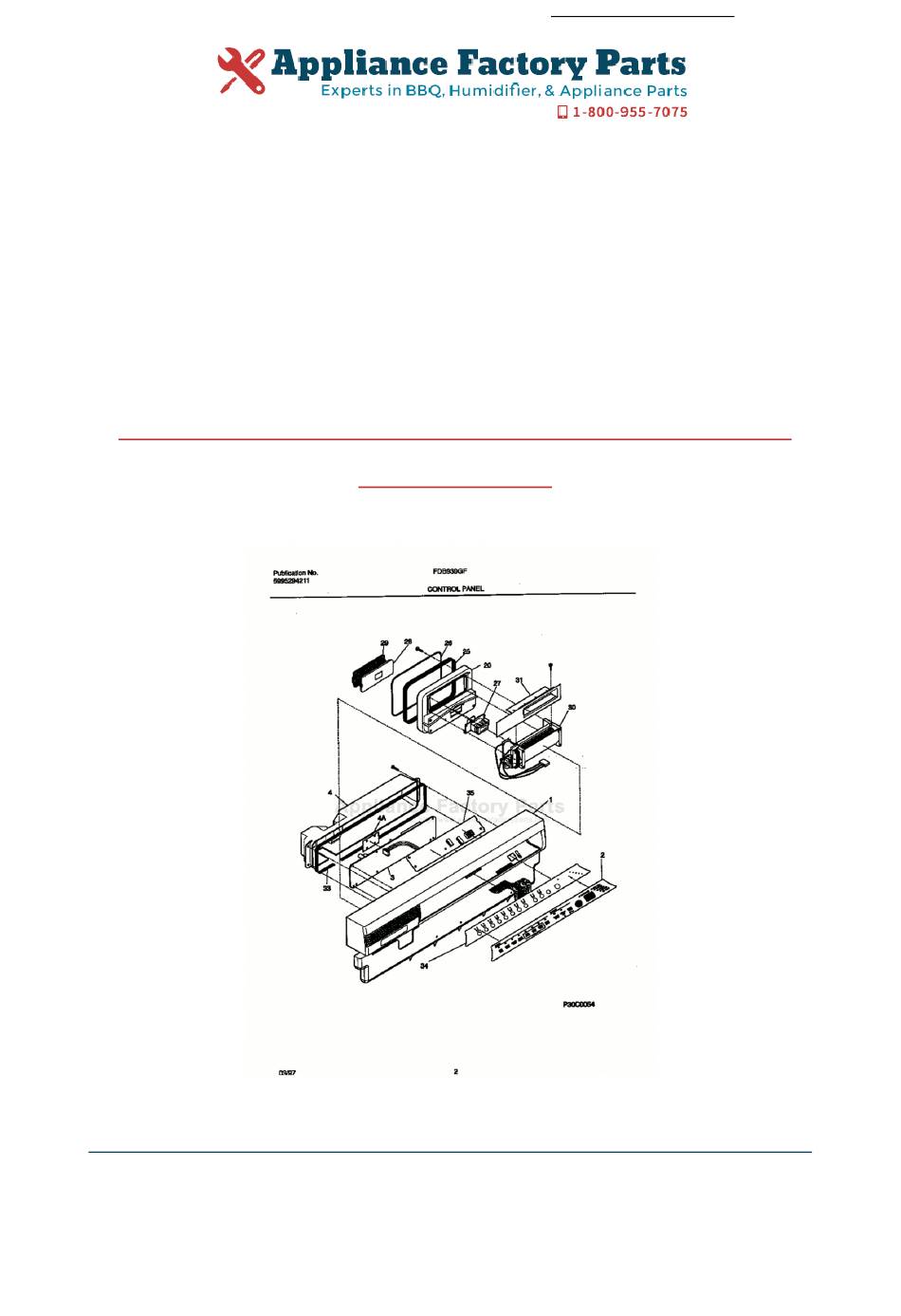

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Electrolux FDB939GFB2 Owner's Manual Shop genuine replacement parts for Electrolux FDB939GFB2 Find Your Electrolux Dishwasher Parts - Select From 406 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
Product Registration Card Please fill in completely, sign and return promptly! Dishwasher Safety Use & Care Manual Instructions ......900 Series Features ......Normal Operating Sounds ........ Operating Instructions ....... Preparing and Loading Dishes....7-12 Dishwasher Dispenser and Detergents ....13-14 Factors Affecting Performance ...... -
Page 3: Important Safety Instructions
Important Safety Instructions • Store dishwasher detergent and rinse agents out of the reach of children. This symbol will help alert you to such • Do not wash plastic items unless marked dangers as personal injury, burns, fire and "dishwasher safe" or the equivalent. Check electrical shock. -
Page 4: Dishwasher Features
Dishwasher Features Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. -
Page 5: Normal Operating Sounds
Operating Instructions Vent Latch Model FDB939 Very Important Information— Getting Started Read Before Operating Your Dishwasher! 1. Load dishwasher (See Preparing and Loading Dishes). 2. Add detergent (See Dishwasher Dispenser & Normal Operating Detergents). 3. Add rinse aid, if needed (See Rinse Aid). Sounds 4. -
Page 6: Operating Instructions
Operating Instructions continued Pots Pans To Cancel a Cycle (115 minutes) (2 washes, 5 rinses, dry) You can cancel a cycle anytime during the (8.4 gallons) (7.0 imp. gallons) (31.8 liters) cycle. Press START/CANCEL pad and the For pots, pans, casseroles and dinnerware dishwasher will start a 90 second drain. -
Page 7: Status Indicator Lights
Operating Instructions continued To select heated dry, press the pad a second Status Indicator Lights time. The light above the pad will turn off. When the ADD-A-DISH light is on, you can add Heated dry provides faster drying since the additional items. -
Page 8: Status Window
Operating Preparing and Instructions Loading Dishes continued Status Window Dish Preparation The Status window indicates the following Scrape away large pieces of food, bones, pits, activity: toothpicks, etc. The continuous filtered wash system will remove remaining food particles. Burned-on foods should be loosened before loading. -
Page 9: Loading The Top Rack
Preparing and Loading Dishes continued Loading the Top Rack Grabbers The two Grabbers offer the ultimate in Important: Do not cover the funnel when flexibility. When closed, load with saucers or loading. small dishes. Open halfway and it's perfect for small casseroles. - Page 10 Preparing and Loading Dishes continued Loading the Top Rack continued Adjustable Mechanism Cup Shelves/Stemware Holders The upper rack is adjustable and can be lowered up to 2 inches for loading taller items Two split cup shelves/stemware holders in upper rack. With the rack lowered, 10" handle your delicate stemware with care.
- Page 11 Preparing and Loading Dishes continued Upper Rack Option Utility Basket SHORT WASH—UPPER RACK option can be The utility basket has two dividers that can be used to wash a wide assortment of items opened to hold longer items or closed for small when you don't have a full load.
-
Page 12: Loading The Bottom Rack
Preparing and Loading Dishes continued Loading the Bottom Rack Lower Rack Option SHORT WASH— LOWER RACK option can The lower rack is best for plates, saucers, be used for lightly soiled pots and pans, large bowls and cookware. Large items should be bowls, casseroles and odd shaped items when placed along the edge so they don't block the you do not have a full load. -
Page 13: Loading The Silverware Basket
Preparing and Loading Dishes continued Loading the Silverware Fold-down Tines The fold-down tines in the lower rack make Basket easy loading of those extra large and hard-to-fit Mix spoons, forks and knives to prevent items. The tines may be left up for normal use nesting. -
Page 14: Dishwasher Dispenser And Detergents
Dishwasher Dispenser & Detergents • Use only fresh automatic dishwashing Filling the Detergent Dispenser detergent. Other types will cause The detergent dispenser has one covered and oversudsing. one uncovered cup. Detergent in the • Add detergent just before starting cycle. uncovered cup falls into the dishwasher when •... -
Page 15: Dishwasher Dispenser
Dishwasher Factors Affecting Dispenser& Detergents Performance continued Rinse Aid Water Pressure Rinse aid greatly improves drying and The hot water line to dishwasher must provide reduces water spots and filming. Water water pressure between 20 and 120 psi. "sheets" off dishes rather than forming water Low water pressure may occur when laundry or droplets that cling and leave spots. -
Page 16: Care And Cleaning
Care and Cleaning Overfill Protector keeps dishwasher from — overfilling and is located in the left front corner of the tub. Burn Hazard • Clean occasionally with household cleaner Allow heating element to cool containing vinegar or bleach to dissolve before cleaning the interior. - Page 17 Care and Cleaning continued Property Damage Hazard Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage. Winterizing A dishwasher left in an unheated place should be protected from freezing.
-
Page 18: Solutions To Common Dishwashing Problems
Solutions to Common Dishwashing Problems • Avoid overloading and improper loading. Before calling for service, review this list. It (See Preparing and Loading Dishes.) may save you both time and expense. This • Use fresh detergent. Old detergent is list includes common experiences that are ineffective. - Page 19 Solutions to Common Dishwashing Problems continued Etching Vapor at Vent • Using too much detergent in soft or •Water vapor escapes from the vent when the softened water causes this film that cannot dishwasher goes into the drying part of be removed.
- Page 20 Solutions to Common Dishwashing Problems continued Removing Spots and Film Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions: 1.
-
Page 21: Consumer Services
Consumer Services Keep your bill of sale, delivery slip or some other appropriate payment record. The date on the bill establishes the warranty period should service be required. Frigidaire Gallery Dishwasher Warranty (continued) Warranty Conditions Warrantor: Frigidaire Company, a division of This warranty gives you specific legal rights;... - Page 22 Consumer Services Frigidaire Gallery Dishwasher Warranty Canada For service under this warranty, contact your local dealer/ WARRANTOR: retailer, authorized FRIGIDAIRE PARTS AND SERVICE Frigidaire Canada depot, or: 866 Langs Drive Cambridge, Ontario FRIGIDAIRE PARTS AND SERVICE N3H 2N7 866 Langs Drive Cambridge, Ontario This dishwasher is a branded product of Frigidaire Canada.
