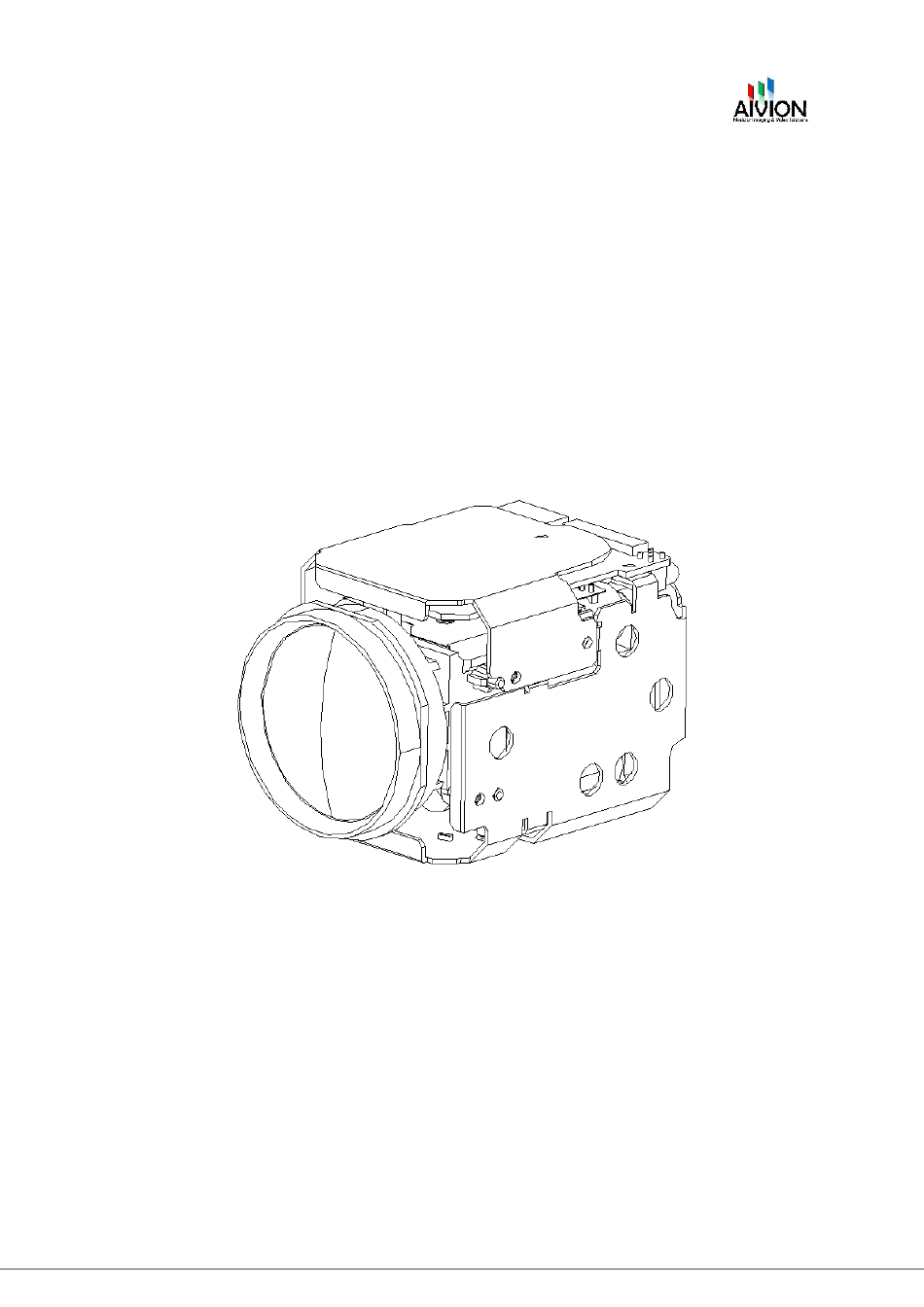

Full-HD 10x Zoom Block Camera Technical Manual
10x Zoom Block
Camera
Technical Manual
Full-HD
AIVION AZM-FS10L
REV. F10F2312 -01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZM-FS10L and is the answer not in the manual?

Questions and answers

Related Manuals for AIVION AZM-FS10L

Summary of Contents for AIVION AZM-FS10L

  • Page 1 Full-HD 10x Zoom Block Camera Technical Manual 10x Zoom Block Camera Technical Manual Full-HD AIVION AZM-FS10L REV. F10F2312 -01...

  • Page 2: Safety Instructions

    Full-HD 10x Zoom Block Camera Technical Manual 1. SAFETY INSTRUCTIONS Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save this instructions for later use. Cleaning Unplug this appliance form wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 3: Table Of Contents

    Full-HD 10x Zoom Block Camera Technical Manual INDEX SAFETY INSTRUCTIONS ......................2 PRECAUTIONS ........................2 FEATURES ..........................4 SPECIFICATION ........................5 OPERATING CAMERA ......................6 5.1. Camera OSD menu ..................... 6 5.2. WHITE BALANCE ......................9 5.3. EXPOSURE ........................9 5.4.

  • Page 4: Features

    Full-HD 10x Zoom Block Camera Technical Manual 3. FEATURES  1/2.8 inch sony STARVIS CMOS image sensor (approx. 2.1 million effective pixels) Progressive scan  WDR (Wide Dynamic Rage) Function  Video signals output HD LVDS : Digital ITU-R BT.1120 - YcbCr4:2:2 16bits Analog : SD CVBS (NTSC/ PAL), 1.0Vp-p 75Ω, Composite HD SDI(optional): SMPTE 292M(1.485Gbps)

  • Page 5: Specification

    Full-HD 10x Zoom Block Camera Technical Manual 4. SPECIFICATION 21Z10S SPECIFICATIONS 1/2.8” Progressive CMOS (Approx. 2.1 mega) Image Sensor Scanning System 16:9 Progressive Sync. System Internal Sensor Effective Pixel 1920(H) x 1080(V) Min. Illumination 0.1Lux (Day), 0.01Lux (Night), 0.001Lux(DSS on) Horizontal Resolution 1000TVL Lens...

  • Page 6: Operating Camera

    Full-HD 10x Zoom Block Camera Technical Manual 5. OPERATING CAMERA 5.1. Camera OSD menu WB CONTROL MODE AWB / ATW / PUSH / INDOOR / OUTDOOR / MANUAL PUSH 0 ~ 100 0 ~ 100 BLUE AE CONTROL MODE AUTO/SHUT PRI/IRIS PRI/AGC PRI/BRIGHT/MANUAL SHUT /30/60/90/100/125/180/250/350/500/725/1000/1500/2K/3K/4K/6K/10K IRIS...
  • Page 7 Full-HD 10x Zoom Block Camera Technical Manual LEVEL 0~255 BACK LIGHT BACKLIGHT DISPLAY OFF/ ON WIDTH 0~48 HEIGHT 0~33 MOVE HOR 0~48 MOVE VER 0~33 AREA DISPLAY OFF/ ON LEVEL 0~20 BLACK MASK OFF/ ON WIDTH 0~48 HEIGHT 0~33 MOVE HOR 0~48 MOVE VER 0~33...
  • Page 8 Full-HD 10x Zoom Block Camera Technical Manual MODE AUTO/ DAY/ NIGHT DISPLAY DAY/NIGHT DELAY [SEC] 0 ~ 60 D->N LEVEL 0 ~ 28 N->D LEVEL 0 ~ 27 NIGHT OFF/ ON COLOR COLOR OFF/ ON BURST OFF/ ON CAM TITLE OFF/ ON ZOOM MAG PRIVACY...

  • Page 9: White Balance

    Full-HD 10x Zoom Block Camera Technical Manual 5.2. WHITE BALANCE AWB : Color temperature is automatically adjusted to 3,000°K ~ 8,000°K ATW : Color temperature is automatically adjusted to 1,900°K ~ 11,000°K INDOOR : Color temperature is manually adjusted to indoor OUTDOOR : Color temperature is manually adjusted to outdoor MANUAL WB : Color Temperature is manually adjustable to adjusting value.

  • Page 10: Focus

    Full-HD 10x Zoom Block Camera Technical Manual FLICKERLESS : This function used only for specific country to remove light flickering when light appears to flutter. 5.4. FOCUS The camera employs a 30x optical zoom lens combined with a 12x digital zoom function. This camera allows you to zoom up to 360×.

  • Page 11: Image Control

    Full-HD 10x Zoom Block Camera Technical Manual DEFOG : This function affects the effect of fog removal. Furthermore, it improves visibility by removing fog, clouds, smoke, and dust. 5.6. IMAGE CONTROL COLOR LEVEL Color level is the colorfulness of a color relative to its own brightness. SHARPNESS As you increase this value, the picture outline becomes stronger and clearer.

  • Page 12: System Setup

    Full-HD 10x Zoom Block Camera Technical Manual NIGHT : The camera keeps black/white mode constantly. CAM TITLE OSD character camera name settings.. ZOOM MAGNIFICATION Display the Zoom scale. PRIVACY It is possible to set the size of the area and a video Mask.

  • Page 13: Video Output Format

    Full-HD 10x Zoom Block Camera Technical Manual 6. Video Output Format 6.1. Video Mode Video output : 1080p - 2200x1125@30/60 fps, 2640x1125@25/50 fps 2200x1125@29.97/59.94 fps (optional) 1080i - 2200x562(563)@60 fps, 2640x562(563)@50 fps 2200x562(563)@59.94 fps (optional) 720p - 1650x750@60 fps, 1980x750@50 fps, 3300x750@30 fps, 3960x750@25 fps 1650x750@59.94 fps (optional), 3300x750@29.97 fps (optional) Pixel clock : 74.25MHz, 148.5MHz 74.25/1.001 MHz (optional), 148.5/1.001 MHz (optional)

  • Page 14: Output Timing Chart

    Full-HD 10x Zoom Block Camera Technical Manual 6.2. Output Timing Chart Output Timing Chart(1920x1080p@30/60/29.97/59.94)
  • Page 15 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1920x1080p@25/50)
  • Page 16 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1920x1080i@60/59.94)
  • Page 17 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1920x1080i@50)
  • Page 18 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1280x720p@60/59.94)
  • Page 19 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1280x720p@50)
  • Page 20 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1280x720p@30/29.97)
  • Page 21 Full-HD 10x Zoom Block Camera Technical Manual Output Timing Chart(1280x720p@25)
  • Page 22 Full-HD 10x Zoom Block Camera Technical Manual Video Data Start/Stop Format EAV and SAV CODE (MSB) (LSB) Preamble Status word EAV and SAV Sequence The EAV and SAV sequences are shown in Table A. The status word is defined as: F = “0”...

  • Page 23: Camera Interface

    Full-HD 10x Zoom Block Camera Technical Manual 7. Camera Interface 7.1. Camera Interface B connector: (optional) Connector – KYOCERA 00-6200-509-130-000+ ( 1.0mm pitch 9pin, Bottom Contact ) Name Level 1.0mm pitch FFC/FPC Cable (9pin) RXD (UART input) CMOS 5V (High Min. 2.5V) TXD (UART output) CMOS 5V (High Min.
  • Page 24 Full-HD 10x Zoom Block Camera Technical Manual C connector: HD-SDI video output Connector –MMCX(micro-miniature coaxial)Female Jack A connector : USL00-30L-C (KEL) Recommended cable ASSY : Cables - micro coaxial cable #42AWG Connectors - USL20-30S (KEL) Camera Side A connector pin assignment (KEL USL00-30L) TXOUT3+ (LVDS) DC (7~15V)

  • Page 25: Lvds Interface

    Full-HD 10x Zoom Block Camera Technical Manual 7.2. LVDS Interface LVDS Single Output only LVDS Single/Dual Output...
  • Page 26 Full-HD 10x Zoom Block Camera Technical Manual LVDS Data Mapping Single Mode (16bits) Dual Mode (16bits)

  • Page 27: Application Of Recommended Circuit Camera Reception

    Full-HD 10x Zoom Block Camera Technical Manual 7.3. Application of recommended circuit Camera Reception (Only for Digital Output Model) LVDS Rx(THC63LVD104C) circuit (Single Output Only)
  • Page 28 Full-HD 10x Zoom Block Camera Technical Manual LVDS Rx(THC63LVD1024) circuit (Single output)

  • Page 29: Key Application Recommended Circuit

    Full-HD 10x Zoom Block Camera Technical Manual LVDS Rx(THC63LVD1024) circuit (Dual output) 7.4. Key Application recommended circuit...

  • Page 30: Dimensions

    Full-HD 10x Zoom Block Camera Technical Manual 8. Dimensions Front Back Bottom Left Right...

  • Page 31: Visca Protocol

    Full-HD 10x Zoom Block Camera Technical Manual APPENDIX A VISCA Protocol Specification: 9600/ 19200/ 38400/ 115200bps, 8bit data, 1stop bit, none parity Command Packet (3~ 16bytes) Comments Inquiry 8X QQ RR ... FF 8X: 0x80+ camera address X = 1 to 7 :camera address QQ: 01-Command/ 09-Inquiry RR: Category 00(Interface) 04(cam1) 06(Pan/Tilt) 07(cam2)
  • Page 32 Full-HD 10x Zoom Block Camera Technical Manual Command Packet Reply Packet IF_Clear 8X 01 00 01FF X0 50 FF IF_Clear 88 01 00 01 FF 88 01 00 01 FF (broadcast) Inquiry Packet Reply Packet CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = 002B: Vender ID HHHH = Model ID...
  • Page 33 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CAM_Power 8x 01 04 00 02 FF Power ON/OFF (Always On) CAM_Zoom Stop...
  • Page 34 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments AF Sensitivity Normal 8x 01 04 58 02 FF AF Sensitivity High/Low 8x 01 04 58 03 FF CAM_AFMode Normal AF 8x 01 04 57 00 FF AF Movement Mode Interval AF 8x 01 04 57 01 FF...
  • Page 35 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain (0 to 0xFF)
  • Page 36 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting 8x 01 04 0C 02 FF Down 8x 01 04 0C 03 FF Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position (1 to 0x17) (refer Table) Gain Limit 8x 01 04 2C 0p FF...
  • Page 37 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_HR 8x 01 04 52 02 FF High-Resolusion Mode ON/OFF 8x 01 04 52 03 FF CAM_NR Noise Reduction 8x 01 04 53 0p FF p: NR Setting (0:OFF 1:Low ~ 5:High) 2D/3D NR 8x 01 05 53 0p 0q FF p: 2DNR level (0: OFF, 1 to 5: level 1 to 5)
  • Page 38 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_AutoICR 8x 01 04 31 02 FF Auto ICR switching Alarm ON/OFF AlarmReply 8x 01 04 31 03 FF (Reply) y0 07 04 31 02 FF ICR OFF ->...
  • Page 39 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_MultiLineTitle Title Set1 8x 01 04 73 1L 00 nn pp qq 00 L: Line Number 0~0xA 00 00 00 00 00 FF nn: H-position 0~0x1F pp: Color 0:WHT 1:YEL 2:MAG 3:RED qq: Blink 0:Not blink 1:Blinks Title Set2...
  • Page 40 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_PrivacyZone SetMask 8x 01 04 76 mm nn 0r 0r 0s 0s mm: Mask Settings nn: 00-Modify, 01-New rr: W ss: H Display 8x 01 04 77 pp pp pp pp FF Mask Display ON/OFF pp pp pp pp: Mask Settings (0: OFF, 1: ON) SetMaskColor...
  • Page 41 Full-HD 10x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_Register 8x 01 04 24 mm 0p 0p FF mm: Register No. (=00-7F) Value pp: Register Value (=00-7F) CAM_ 8x 01 04 5F pp FF pp: Chroma Suppress setting level ChromaSuppress 00: OFF, 1 to 3: ON (3 levels).
  • Page 42 Full-HD 10x Zoom Block Camera Technical Manual Register Set Command Set Command Packet Comments BaudRate 8x 01 04 24 00 00 0p FF p: 0-9600 1-19200 2-38400 3-115200 Monitoring Mode 8x 01 04 24 72 0p 0p FF pp: 1-1080i@59.94 2-1080i@60 4-1080i@50 6-1080p@29.97)
  • Page 43 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On (Always On) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position (refer Table) CAM_DZoomModeInq 8x 09 04 06 FF...
  • Page 44 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain CAM_RGainOffsetInq 8x 09 7E 01 43 FF...
  • Page 45 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_DefogInq 8x 09 04 37 FF y0 50 02 0p FF On p: Defog level (0:auto,1:low,2:mid,3:high) y0 50 03 00 FF CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture(Sharpness-edge enhancement) CAM_HRModeInq...
  • Page 46 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments MemoryInq 8x 09 04 3F FF y0 50 pp FF pp: Memory number recalled last MemSaveInq 8x 09 04 23 0X FF y0 50 0p 0p 0q 0q FF X: 00 to 07 (Address) ppqq: 0x0000 to 0xFFFF (Data) DisplayModeInq...
  • Page 47 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments MDWindowInq 8x 09 04 1D 0m FF y0 50 pp qq rr ss FF m: Select Detection Frame (0 1 2 3) pp: Start Horizontal Position (00 to 0x3C) qq: Start Vertical Position (00 to 0x28) rr: Stop Horizontal Position (01 to 0x3C) ss: Stop Vertical Position (01 to 0x28)
  • Page 48 Full-HD 10x Zoom Block Camera Technical Manual Inquiry Command : Register Inquiry Command Command Packet Inquiry Packet Comments BaudRate 8x 09 04 24 00 FF y0 50 00 0p FF p: 0-9600 1-19200 2-38400 3-115200 Monitoring Mode 8x 09 04 24 72 FF y0 50 0p 0p FF pp: 1-1080i@59.94 (optional) 2--1080i@60...
  • Page 49 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Lens Control System Inquiry Commands Command Packet 8x 09 7E 7E 00 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) [7:4] [3:0] Zoom Position (HH) 4000h(7AC0h) [7:4] [3:0]...
  • Page 50 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Camera Control System Inquiry Commands Command Packet 8x 09 7E 7E 01 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) [7:4] [3:0] R Gain (H) [7:4] [3:0] R Gain (L)
  • Page 51 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Other Inquiry Commands Command Packet 8x 09 7E 7E 02 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) ICR Mode (1:Color 0:BW) Auto ICR Alarm (1: On, 0: Off) [2:1] Auto ICR 2: On 0: Off 3:On(Color) Power 1: On 0: Off...
  • Page 52 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Extended Function1 Query Command Command Packet 8x 09 7E 7E 03 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) [7:4] [3:0] Digital Zoom Position (H) [7:4] [3:0] Digital Zoom Position (L)
  • Page 53 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Extended Function2 Query Command Command Packet 8x 09 7E 7E 04 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) [7:2] [1:0] VE 0: Off 2: VE On [7:0] [7:3] [2:0]...
  • Page 54 Full-HD 10x Zoom Block Camera Technical Manual Block Inquiry Command Extended Function3 Query Command Command Packet 8x 09 7E 7E 05 FF Byte Comments [7:4] Destination Address [3:0] Source Address [7:0] Completion Message (50h) [7:4] [3:0] Color Hue (0h(− 14 degrees) to Eh(+ 14 degrees)) [6:0] Magenta Gain [6:0]...
  • Page 55 Full-HD 10x Zoom Block Camera Technical Manual TABLE. Shutter Speed Value NTSC 1/10000 (1/20000) 1/10000 (1/20000) 1/6000 (1/12000) 1/6000 (1/12000) 1/4000 (1/8000) 1/3500 (1/7000) 1/3000 (1/6000) 1/2500 (1/5000) 1/2000 (1/4000) 1/1750 (1/3500) 1/1500 (1/3000) 1/1250 (1/2500) 1/1000 (1/2000) 1/1000 (1/2000) 1/725 (1/1450) 1/600 (1/1200) 1/500 (1/1000)
  • Page 56 Full-HD 10x Zoom Block Camera Technical Manual Gain Table Gain Limit Table Value Gain Value Gain Limit +60 dB +60 dB +55.7 dB +55.7 dB +51.4 dB +51.4 dB +47.1 dB +47.1 dB +42.9 dB +42.9 dB +38.6 dB +38.6 dB +34.3 dB +34.3 dB +30 dB...
  • Page 57 Full-HD 10x Zoom Block Camera Technical Manual IRIS Exposure Comp. Color Gain value IRIS value comp value Color gain F1.6 (+7) 10.5 dB 200% (+6) 9.0 dB 190% F2.4 (+5) 7.5 dB 180% F2.8 (+4) 6.0 dB 170% F3.4 (+3) 4.5 dB 160% (+2) 3.0 dB 150%...
  • Page 58 Full-HD 10x Zoom Block Camera Technical Manual Digital Zoom Combine Mode Optical Zoom * Enabled during Dzoom On Optical Zoom Optical Zoom Digital Zoom Digital Zoom Ratio Position Data Ratio Position Data ×1 0000 ×1 4000 ×2 17C5 ×2 6000 ×3 22AD ×3...
  • Page 59 Full-HD 10x Zoom Block Camera Technical Manual Wide/Tele Limit Limit Setting Wide Limit Tele Limit Focus Near Limit Value Position Near Limit x1.0 x1.03 x9.6 2000 Over Inf x1.05 x9.0 3000 x1.08 x8.46 4000 x1.11 x8.0 6000 x1.14 x7.76 8000 x1.17 x7.37 C000...
  • Page 60 Full-HD 10x Zoom Block Camera Technical Manual Initial Settings Custom Recall : Custom Preset Function Memory Recall : Camera memory Function Mode Factory Reset Custom Recall Memory Recall Zoom Position Wide end D-Zoom On/Off D-Zoom Separate/Combine Combine D-Zoom Position Focus Position Focus Auto/Manual Auto Near Limit...
  • Page 61 Full-HD 10x Zoom Block Camera Technical Manual Mode Factory Reset Custom Recall Memory Recall Spot AE On/Off Spot AE Starting point (X1, Y1) 04h, 04h Spot AE End point (X2, Y2) 0Ah, 0Ah Spot AWB On/Off Spot AWB Starting point (X1, Y1) 04h, 04h Spot AWB End point (X2, Y2) 0Bh, 0Bh...
  • Page 62 Full-HD 10x Zoom Block Camera Technical Manual APPENDIX B PELCO Protocol PELCO “D” Byte Format Command Message Command Data BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5 BYTE 6 BYTE 7 Zoom Tele 0xFF CamID 0x00 0x20 0x00 0x00 Checksum Zoom Wide...
  • Page 63 Full-HD 10x Zoom Block Camera Technical Manual Revision History Version Date Description Remarks 2308-01 Update Wide/Tele limit 2310-01 Add Spot AWB, ICR color mode, Min Shutter...
