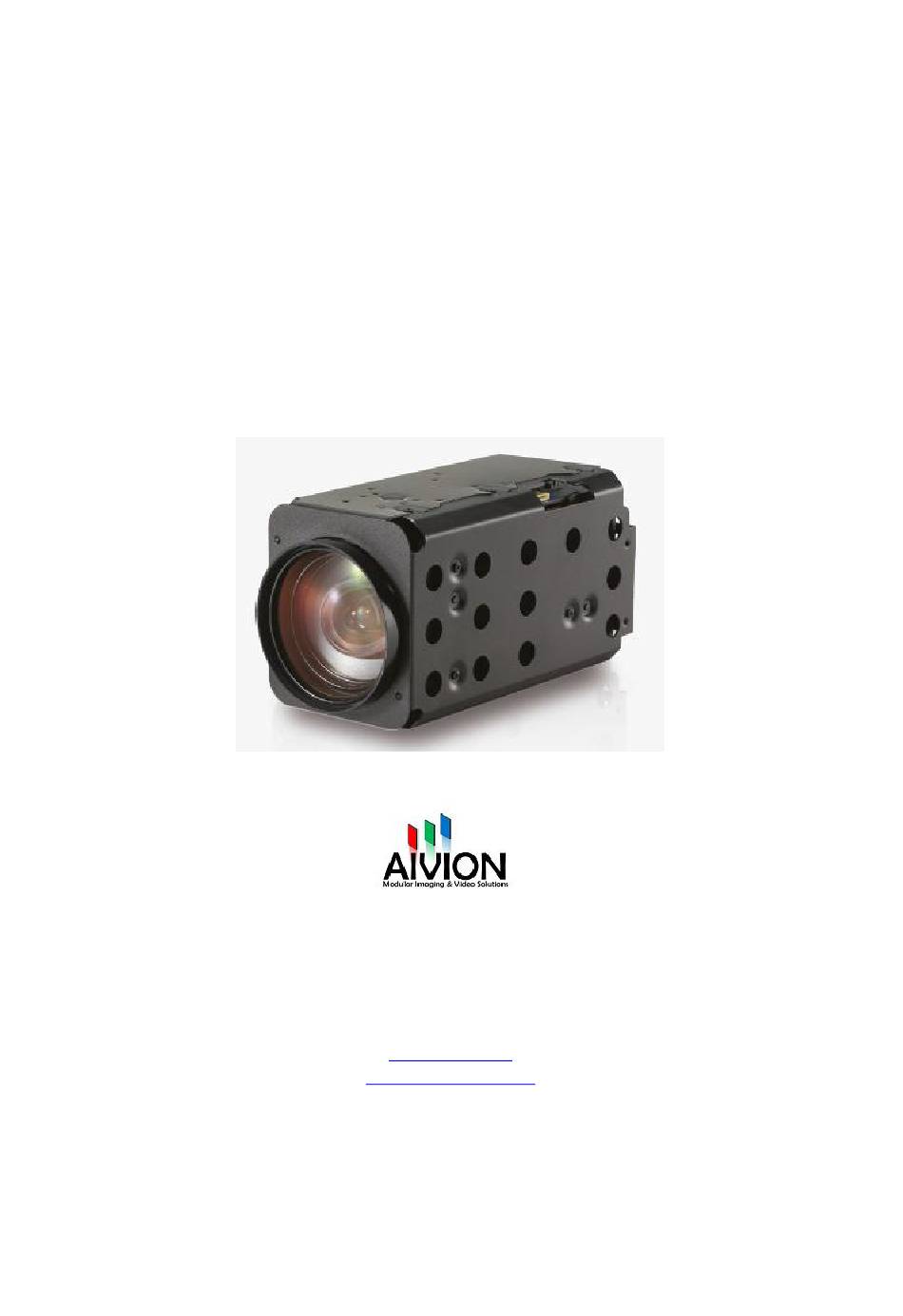

Wide Quad HD 36x Zoom Camera Module Technical Manual
AZM-WQHS36L-LL
Wide Quad HD 36x Zoom Camera Module
Technical Manual
techsupport@avion.com
Contact:
sales@aivion.com
Version : V1.0.0
Date: 01. Aug. 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the User Manual and is the answer not in the manual?

Questions and answers

Related Manuals for AIVION User Manual

Summary of Contents for AIVION User Manual

  • Page 1 Wide Quad HD 36x Zoom Camera Module Technical Manual Version : V1.0.0 Date: 01. Aug. 2019 AZM-WQHS36L-LL Wide Quad HD 36x Zoom Camera Module Technical Manual Contact: sales@aivion.com techsupport@avion.com...

  • Page 2: Manual Contents

    3. Module General Specification 4. Interface Connector Specification 5. Interface Signal Specification 6. Cable specifications 7. Timing Chart 8. Pixel data format 9. Block Diagram 10. Reliability 11. Function 12. Protocol 13. Command List 14. OSD Menu Contact: sales@aivion.com techsupport@avion.com...
  • Page 3 • Intelligent motion detection You can transmits an alert signal when it detects motion of an object on the screen. This feature is useful when you have to monitor several screens simultaneously. Contact: sales@aivion.com techsupport@avion.com...
  • Page 4 The Image Stabilizer function reduces image blurring caused by, for example, vibration, which allows you to obtain images without much blurring. • Output Digital output : LVDS Analog output : HD (optional), CVBS (optional) • Protocol This camera supports the VISCA protocol (PELCO-D, PELCO-P optional) Contact: sales@aivion.com techsupport@avion.com...
  • Page 5 Remove dust or dirt on the surface of the lens with a blower (commercially available). Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They may damage the surface finish and/or impair the operation of the camera. Contact: sales@aivion.com techsupport@avion.com...
  • Page 6 White Balance Mode Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext Red Gain 0 ~ 20 steps (Manual mode only) Blue Gain 0 ~ 20 steps (Manual mode only) Chroma 0 ~ 20 steps Contact: sales@aivion.com techsupport@avion.com...
  • Page 7 9V to 15V DC Power Source 500mA Current Consumption General -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) Storage Temperature External Dimension 55.6(W) x 64(H) x 124(D) 404g Weight Contact: sales@aivion.com techsupport@avion.com...
  • Page 8 CMOS 5V CMOS 5V DC IN 9 ~ 15V DC DC IN 9 ~ 15V DC DC IN 9 ~ 15V DC DC IN 9 ~ 15V DC DC IN 9 ~ 15V DC Ref. USL00-30L-C (KEL Cop.) Contact: sales@aivion.com techsupport@avion.com...

  • Page 9: Connector Specification

    9 ~ 15V DC ADKEY OSD Control Day & Night Control Input D/N-IN (Normal : open, Active : 0V) MD-OUT Motion Detection output 485-DIR RS-485 control signal VBS-OUT Composite Video Output DC IN 9 ~ 15V DC Ref. 05002HR-24J05 (YEONHO) Contact: sales@aivion.com techsupport@avion.com...
  • Page 10 The external wired remote controller connecter. 3. MD (J302-12) Port giving signal output of Motion Detection Alarm 4. 485-DIR (J302-13) Port giving output of TxD/RxD direction in RS-485 communication ● TxD : High (+3.3V) ● RxD : Low (Ground) Contact: sales@aivion.com techsupport@avion.com...
  • Page 11 (YEONHO) POWER  The camera uses the LVDS transmitter IC chip. The LVDS receiver IC chip(THC63LVD1024, THC63LVD104C, BU90R102) is recommended.  Recommended connectors and cables. - Cable : #42 thin coaxial cable - Connector : USL20-30S (KEL) Contact: sales@aivion.com techsupport@avion.com...
  • Page 12 Wide Quad HD 36x Zoom Camera Module Technical Manual Version : V1.0.0 Date: 01. Aug. 2019 AZM-WQHS36L-LL 6. Cable Specifications: ①, ② : Connecting to USL20-30S (KEL) ③ : #42 thin coaxial cable ④ : Binding tape Contact: sales@aivion.com techsupport@avion.com...

  • Page 13: Timing Chart

    148.5MHz. The following diagrams show horizontal and vertical timing for 1440-line progressive systems. ① Frame timing relationship for 1440-line progressive systems. ② Data stream over one video line – 1440p 30fps – 1440p 25fps Contact: sales@aivion.com techsupport@avion.com...
  • Page 14 74.25MHz (30/25fps). The following diagrams show horizontal and vertical timing for 1080-line progressive systems. ① Frame timing relationship for 1080-line progressive systems. ② Data stream over one video line – 1080p 30fps – 1080p 25fps Contact: sales@aivion.com techsupport@avion.com...
  • Page 15 74.25MHz. The following diagrams show horizontal and vertical timing for 720-line progressive systems. ① Frame timing relationship for 720-line progressive systems. ② Data stream over one video line – 720p 60fps – 720p 50fps Contact: sales@aivion.com techsupport@avion.com...
  • Page 16 Wide Quad HD 36x Zoom Camera Module Technical Manual Version : V1.0.0 Date: 01. Aug. 2019 AZM-WQHS36L-LL Timing Chart – 720p 30fps – 720p 25fps Contact: sales@aivion.com techsupport@avion.com...
  • Page 17 V = “1” during vertical blanking H = “0” at SAV, H = “1” at EAV P3–P0 = protection bits P3 = V ⊕H P2 = F ⊕H P1 = F ⊕V P0 = F ⊕V ⊕H Contact: sales@aivion.com techsupport@avion.com...
  • Page 18 Wide Quad HD 36x Zoom Camera Module Technical Manual Version : V1.0.0 Date: 01. Aug. 2019 AZM-WQHS36L-LL 8. Pixel data format Output format ① Single LVDS mode ② Dual LVDS mode Contact: sales@aivion.com techsupport@avion.com...

  • Page 19: Block Diagram

    AZM-WQHS36L-LL 9. Block Diagram CMOS Sensor LENS 1/1.8" 6.48M Pixel MEMORY LENS DRIVE (ZOOM/FOCUS/IRIS/D&N) DC/DC CONV. +3.3V +1.8V +1.2V VIDEO LVDS Transmitter → HD : Digital (LVDS) EX-SDI → Analog SD : VBS ← DC12V ↔ TxD/RxD Contact: sales@aivion.com techsupport@avion.com...
  • Page 20 (1) Focus operation cycle : 500,000cycles (2) Operation condition : See below (3) Test condition : Normal temperature 1cycle Near side 1V pause more than Sensor 400steps position more than s400step Far side 1V pause 1-2phase drive 360pps wobbling 5times 960pps Contact: sales@aivion.com techsupport@avion.com...
  • Page 21 (2) Operation condition : See below (3) Test condition : Normal temperature OPEN CLOSE 3±1sec 3±1sec 4. IRCF (1) IRCF operation cycle: 200,000cycles (2) Operation condition : See below (3) Test condition : Normal temperature A=150ms B=850ms Contact: sales@aivion.com techsupport@avion.com...
  • Page 22 The interval time and active time for AF movements and for the timing of the stops can be set. - Zoom trigger mode (One push mode) : When the zoom is changed with the TELE or the WIDE buttons, the pre-set value becomes that for AF mode. Then it stops. Contact: sales@aivion.com techsupport@avion.com...
  • Page 23 - Manual control of R and B gain. ● Indoor mode - 3700K base mode ● Outdoor mode - 5100K base mode ● Auto-Ext mode - This mode operating on a wider range of color temperatures than Auto mode. Contact: sales@aivion.com techsupport@avion.com...
  • Page 24 ※ WDR doesn’t work in Manual Exposure Mode and Shutter Priority Mode. Contact: sales@aivion.com techsupport@avion.com...
  • Page 25 9. Sharpness (Aperture) This function adjusts the enhancement of the edge of objects in the picture. 10. Freeze It captures an image in the field memory of the camera so that this image can be output continuously. Contact: sales@aivion.com techsupport@avion.com...
  • Page 26 : x (pp) = B0h(-50h) ~ 50h y (qq) = D3h(-2Dh) ~ 2Dh ※ Can be set in Non-Interlock mode only. Fixed as (0,0) in Interlock mode. - Mask Size w (rr) = B0h(-50h) ~ 50h h (ss) = D3h(-2Dh) ~ 2Dh Contact: sales@aivion.com techsupport@avion.com...
  • Page 27 1B h Yellow 0C h 1C h Magenta 0D h 1D h - Pan/Tilt angle (ppp, qqq) : Range of angle (PAN : -180˚ ~ 180˚, TILT : -90˚ ~ 90˚) : Angle resolution (360˚ / 4096) Contact: sales@aivion.com techsupport@avion.com...
  • Page 28 Eliminate amount of fog on display screen. When DEFOG is ON, ACE and WDR function can not turn on. 17. Lens Initialize Initialize the zoom and focus of the lens. Even when power is already on, it initialize the Zoom and the Focus. Contact: sales@aivion.com techsupport@avion.com...
  • Page 29 ※ When you use this function, you have to block the lens for blocking lights into the lens. 19. Custom Preset As with the position preset function, the camera shooting conditions can be stored and recalled. The settings are recalled when the power is turned on. Contact: sales@aivion.com techsupport@avion.com...
  • Page 30 ● ID : 1~7 (VISCA), 1~255(Pelco-D, Pelco-P) ● Baud rate : 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps ● Data bit : 8 ● Start bit : 1 ● Stop bit : 1 ● Non parity bit Contact: sales@aivion.com techsupport@avion.com...

  • Page 31: Pelco-D Protocol Command List

    Focus Mode 02 : Manual ● ID : Camera ID (1 ~ 255) ● XX : Speed (10h < XX ≤ 40h) ● CS(Check Sum) : An 8bit sum of byte 2 ~ 6 in the message. Contact: sales@aivion.com techsupport@avion.com...

  • Page 32: Pelco-P Protocol Command List

    Go to Zoom (01 ~ 05) Preset ● ID : Camera ID (1 ~ 255) ● XX : Speed (10h < XX ≤ 40h) ● CS(Check Sum) : An XOR sum of byte 1 ~ 7 in the message. Contact: sales@aivion.com techsupport@avion.com...
  • Page 33 (memories) for commands, so that up to three commands including the commands currently being executed can be received. When the camera receives commands, it notifies the sender which command buffer was used using the socket number of the ACK message. Contact: sales@aivion.com techsupport@avion.com...
  • Page 34 - Sent from the peripheral device to the controller when a device is removed from or added to the network. The address must be re-set when this message is received. Y0 38 FF – Y : 9 ~ F (Camera address + 8) Contact: sales@aivion.com techsupport@avion.com...

  • Page 35: Command List

    : Active Time (0(1sec) ~ 255(256sec)), rs : Interval Time (0(1sec) ~ 255(256sec)) CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s pqrs : Zoom Position 0t 0u 0v 0w FF tuvw : Focus Position Contact: sales@aivion.com techsupport@avion.com...
  • Page 36 8x 01 04 0C 03 FF Direct 8x 01 04 4C 00 00 0p 0q FF pq : Gain Position (0 ~ Ah) Gain Limit 8x 01 04 2C 0p FF p : Gain Limit (0 ~ Ah) Contact: sales@aivion.com techsupport@avion.com...
  • Page 37 Reset 8x 01 04 02 00 FF Aperture Control 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq : Aperture Gain (0~Ah) Contact: sales@aivion.com techsupport@avion.com...
  • Page 38 8x 01 04 15 03 FF On/Off 8x 01 04 15 10 FF CAM_DispSel 8x 01 04 14 00 0p FF Display Item On(1)/Off(0) p : bit[0] - ID, bit[1] - Title, bit[2] - Zoom Position bit[3] - System Message Contact: sales@aivion.com techsupport@avion.com...
  • Page 39 Non-Interlock Mask Settings 0p 0p 0q 0q 0r 0r 0s 0s FF pp: X, qq: Y, rr: W, ss: H CAM_KeyLock 8x 01 04 17 00 FF Key Lock ON/OFF 8x 01 04 17 02 FF Contact: sales@aivion.com techsupport@avion.com...
  • Page 40 0s 0s 0t 0t 0u 0u 0v 0v 0w 0w qq : Byte 2 rr : Byte 3 ss : Byte 4 tt : Byte 5 uu : Byte 6 vv : Byte 7 ww : Byte 8 Contact: sales@aivion.com techsupport@avion.com...
  • Page 41 50 00 00 0p 0q FF pq : Gain Position CAM_GainLimitInq 8x 09 04 2C FF y0 50 0p FF p : Gain Limit CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq : Bright Position Contact: sales@aivion.com techsupport@avion.com...
  • Page 42 50 02 FF y0 50 03 FF CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF y0 50 03 FF CAM_ICRStateInq 8x 09 04 01 FF y0 50 02 FF Night y0 50 03 FF Contact: sales@aivion.com techsupport@avion.com...
  • Page 43 : 0(Non-interlock Mode), 1(Interlock Mode) pp : X, qq : Y, rr : W, ss : H CAM_PrivacyDisplayInq 8x 09 04 77 FF y0 50 pp pp pp pp FF pppppppp : Mask Display (0: OFF, 1: ON) Contact: sales@aivion.com techsupport@avion.com...
  • Page 44 50 00 00 00 0p FF p:Color Hue setting (0 : -14º ~ Eh : +14º) CAM_UTCInq 8x 09 05 1C FF y0 50 02 FF y0 50 03 FF CAM_UTCForwardInq 8x 09 05 0C FF y0 50 02 FF y0 50 03 FF Contact: sales@aivion.com techsupport@avion.com...
  • Page 45 1/3000 1/2000 1/2000 1/1000 1/1000 1/700 1/700 1/500 1/500 1/250 1/250 1/120 1/120 1/100 1/100 Close 1/60 1/50 1/30 1/25 1/15 1/12 Gain (Hex) Step GAIN (Hex) 51.0dB 46.2dB 41.4dB 36.6dB 31.8dB 27.0dB 22.2dB 17.4dB 12.6dB 7.8dB Contact: sales@aivion.com techsupport@avion.com...

  • Page 46: Optical Zoom

    3DA0 7E00 3E04 Focus Near Limit 3E56 3E9E 1000 3EDE 2000 3000 3F14 4000 3F41 5000 3F65 6000 3F8A 7000 3FA5 8000 9000 3FB7 A000 3FC9 1.5m B000 3FDB C000 3FED D000 3FF6 10cm E000 F000 4000 Contact: sales@aivion.com techsupport@avion.com...
  • Page 47 É Ê Ë Î & Ï Ñ Ô Ö Ù Û Ü ß à â ä ç è é ê ë î ï ñ ô ö ＼ ù < û ü > À Œ  œ Ä Contact: sales@aivion.com techsupport@avion.com...
  • Page 48 HD delay Delay enabled Positive VD / HD polarity Negative Full mode Image range mode Comp mode User mode Image range custom level 0 ~ 20 EX-SDI 135M (v2.0) SDI mode EX-SDI 135M+ (v2.1) EX-SDI 270M (v1.0) Contact: sales@aivion.com techsupport@avion.com...
  • Page 49 Date: 01. Aug. 2019 AZM-WQHS36L-LL Command List < Other control values > AF Active Time 00 (0sec) FFh (255sec) AF Interval Time 00 (0sec) FFh (255sec) R Gain B Gain Aperture Level Threshold Level of ICR Gap Level of ICR Contact: sales@aivion.com techsupport@avion.com...
  • Page 50 To the push of each main menu selection, the sub-menu is displayed If you want save the menu, select [SAVE]. If you want not save the menu, select [EXIT] (After select , Power off -> on) If you want default the menu, select [DFLT] Contact: sales@aivion.com techsupport@avion.com...
  • Page 51 ► OFF / ON (max x2 ~ x19, x21, x23, x25, x28, x32) ◈ ZOOM PRESET : Select zoom preset ► PRESET # : Select Zoom preset number (1 ~ 5) ► MODE : OFF / ON↲ ▷ ON↲ : Adjust the Zoom Position Contact: sales@aivion.com techsupport@avion.com...
  • Page 52 ◈ DSS : Select maximum DSS (Digital Slow Shutter) ► OFF / x2, x4, x8, x16, x32 ◈ FLICKERLESS : Select Flickerless mode ► OFF / ON / AUTO (remove screen flicker) ◈ BRIGHTNESS : Adjust brightness level ► 0(dark) ~ 20(bright) steps Contact: sales@aivion.com techsupport@avion.com...
  • Page 53 (LOW, MID-LOW, MIDDLE, MID-HIGH, HIGH) ► BURST : OFF / ON ▷ EXT-IN ► DELAY : 0 ~ 255 sec ► BURST : OFF / ON ► POLARITY : External Input polarity (ACTIVE LOW / ACTIVE HIGH) Contact: sales@aivion.com techsupport@avion.com...
  • Page 54 Wide Quad HD 36x Zoom Camera Module Technical Manual Version : V1.0.0 Date: 01. Aug. 2019 AZM-WQHS36L-LL ▷ NIGHT ► BURST : OFF / ON Contact: sales@aivion.com techsupport@avion.com...
  • Page 55 Date: 01. Aug. 2019 AZM-WQHS36L-LL ◆ WHITE BALANC MENU WHITE BAL ZOOM/FOCUS ↲ MODE AUTO EXPOSURE ↲ RED GAIN WHITE BAL ↲ BLUE GAIN IMAGE ↲ CHROMA INTELLIGENCE ↲ SPECIAL FUNC ↲ DISPLAY ↲ [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] Contact: sales@aivion.com techsupport@avion.com...
  • Page 56 ◈RED GAIN : Adjust R gain value ► 0 ~ 20 steps ◈BLUE GAIN : Adjust B gain value ► 0 ~ 20 steps ◈ CHROMA : Adjust CHROMA gain value ► 0 ~ 20 steps Contact: sales@aivion.com techsupport@avion.com...
  • Page 57 ▷ H&V : You can flip the picture horizontally & vertically on the screen ◈ SHARPNESS : Adjust sharpness level ► 0 ~ 10 steps ◈ ACE : Select Digital WDR (Wide Dynamic Range) ► OFF / LOW / MIDDLE / HIGH Contact: sales@aivion.com techsupport@avion.com...
  • Page 58 (When ACE On, DEFOG is Off. And when DEFOG is On, ACE is Off) ◈ Freeze : Select real or still mode ► OFF / ON ◈ GAMMA : Select GAMMA ► 0.45 / 0.55 / 0.65 / 0.75 Contact: sales@aivion.com techsupport@avion.com...
  • Page 59 ▷ INTERVAL :Select the alarm interval time (0 ~ 255sec) ▷ DWELL TIME : Select the duration time about changing MD mode (0 ~ 255sec) ▷ ZOOM PRESET : Select Motion Zoom Preset Mode and Position (OFF / ON↲) Contact: sales@aivion.com techsupport@avion.com...
  • Page 60 ▷ RANGE : Setting the image compensation range. (10%, 20%, 30%) ▷ FILTER : Setting the sensitivity to hold DIS function in worst case. (LOW, MIDDLE, HIGH) ▷ AUTO C : Setting Auto Centering mode (OFF, HALF, FULL) Contact: sales@aivion.com techsupport@avion.com...
  • Page 61 ◈ BT.1120 OUT : Select BT1120 output mode (OFF / ON) ◈ SDI MODE : -- ◈ HD-ANALOG (optional): Select analog output mode ► OFF / CVBS / HD-T ※ When HD-T On, you can’t select 1440p/30(25)fps mode Contact: sales@aivion.com techsupport@avion.com...
  • Page 62 ▷ PROTOCOL : Select operating protocol ► VISCA / PELCO-D / PELCO-P / UPDATE ▷ UTC : Select HD-Analog UTC function ► OFF / ON ▷ UTC FORWARD : Sends the UTC command to Controller via UART . ► OFF / ON Contact: sales@aivion.com techsupport@avion.com...
  • Page 63 , . ( ) { } [ ] 0 1 2 3 4 5 6 7 8 9 * + - / = ~ ! ? "‘ Contact: sales@aivion.com techsupport@avion.com...
