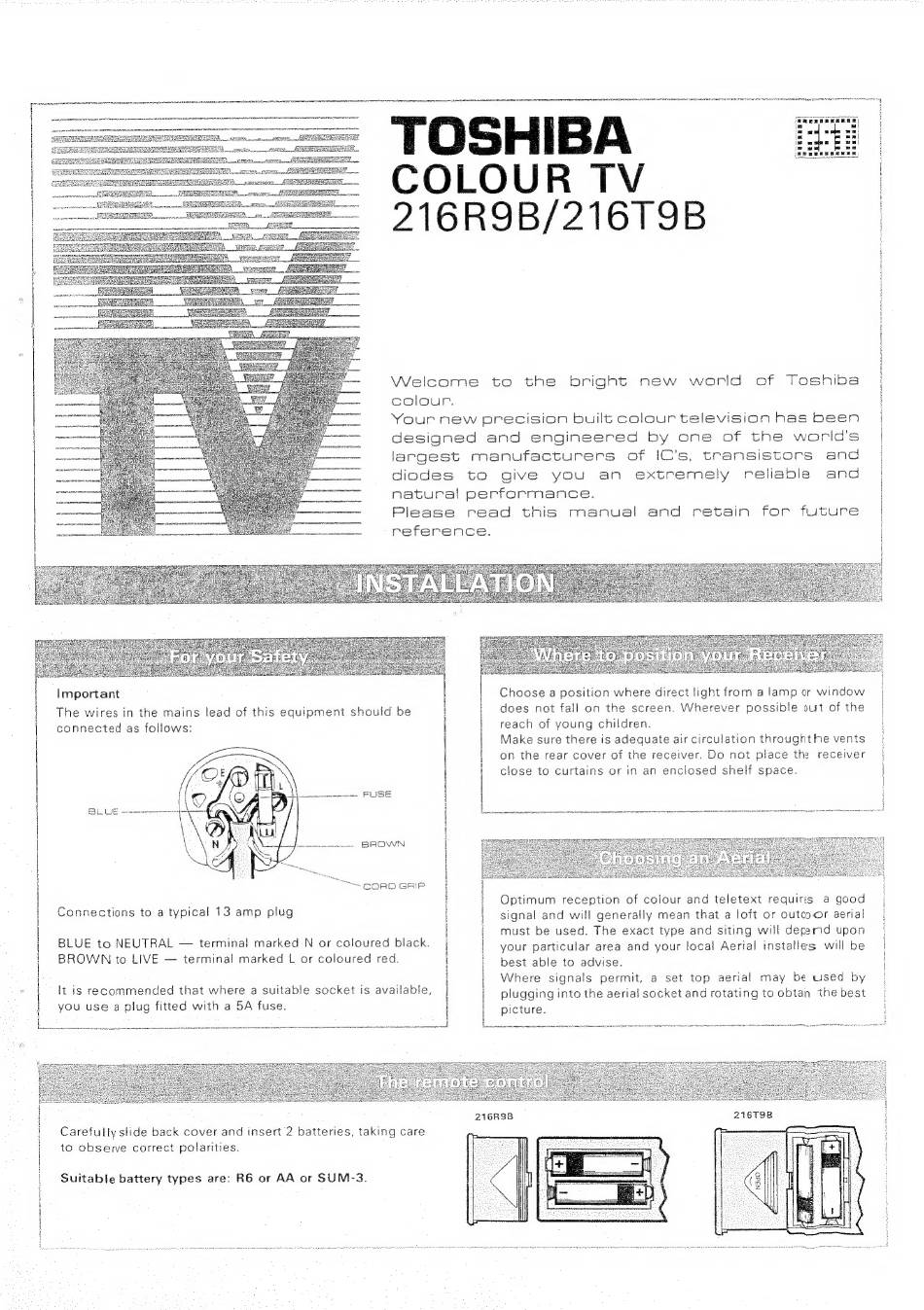

216R9B/216T9B
)
Welcome to the bright new world of Toshiba
colour.
Your new precision built colour television has been
designed and engineered by one of the world's
largest manufacturers of IC's, tramsistors and
diodes to give you an extremely reliable and
natural performance.
Please read this manual and retain for future
reference.
'Important
The wires in the mains lead of this equipment should be
connected as follows:
| Choose a position where direct light from a lamp or window
| does not fall on the screen. Wherever possible out of the
| reach of young children.
| Make sure there is adequate air circulation throughthe vents
i
t
1
{
|
on the rear cover of the receiver. Do not place the receiver
close to curtains or in an enclosed shelf space.
ssh Er i ya i armenian narnonteeaipianmnal
"CORD GRIP
Optimum reception of colour and teletext requirss a good
signal and will generally mean that a loft or outcoor aerial
must be used. The exact type and siting will depend upon |
your particular area and your local Aerial installes will be i
best able to advise.
Where signals permit, a set top aerial may be used by
plugging into the aeriai socket and rotating to obtan the best
picture.
Connections to a typical 13 amp plug
BLUE to NEUTRAL — terminal marked N or coloured black.
BROWN to LIVE — terminal marked L or coloured red.
i
i
z
f
i
}
:
;
i
?
It is recommended that where a suitable socket is available,
you use a plug fitted with a 5A fuse.
Carefully stide back cover and insert 2 batteries, taking care
to observe correct polarities.
Suitable battery types are: R6 or AA or SUM-3.
