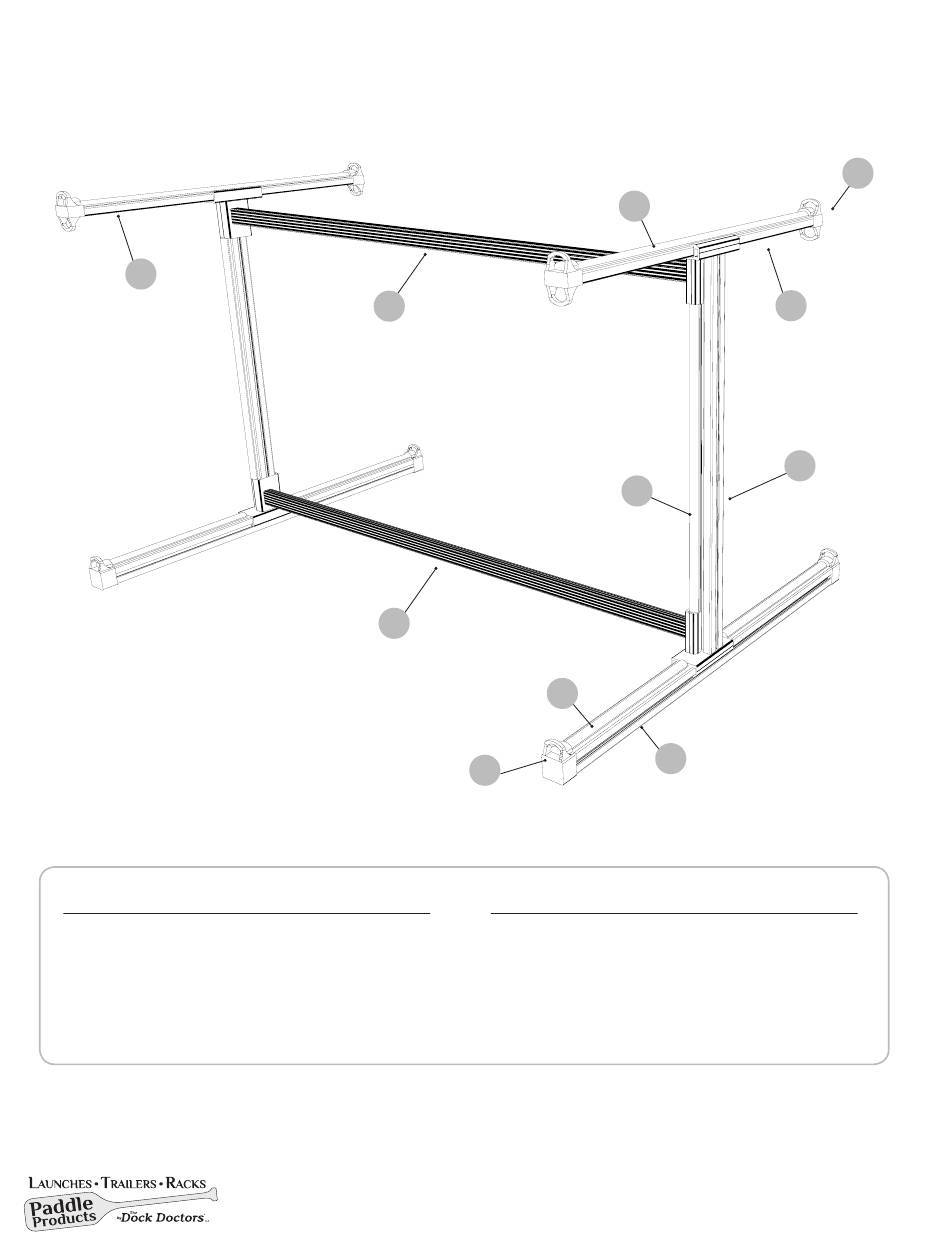

3-Craft Mini Storage Rack
Assembly Instructions
G
PART NAME
A. BASE BAR (42")
B. BASE BAR HULL GUARD (17")
C. BASE BAR END CAP
D. UPRIGHT BAR (35")
E. UPRIGHT HULL GUARD (27")
The
Dock Doctors
®
LLC
© 2016 The Dock Doctors–V2–V0416
F
F
QTY
2
4
4
2
4
Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com
H
E
B
C
PART NAME
F. CROSS BAR WITH BRACKET (51.5")
G. ARM (35")
H. ARM HULL GUARD (34")
I.
ARM END CAP
G
D
A
QTY
2
2
2
4
I
1
Advertisement
Related Manuals for Dock Doctors 3-Craft Mini Storage Rack
Summary of Contents for Dock Doctors 3-Craft Mini Storage Rack
- Page 1 3-Craft Mini Storage Rack Assembly Instructions PART NAME PART NAME A. BASE BAR (42”) F. CROSS BAR WITH BRACKET (51.5”) B. BASE BAR HULL GUARD (17”) G. ARM (35”) C. BASE BAR END CAP H. ARM HULL GUARD (34”) D. UPRIGHT BAR (35”) ARM END CAP E.
- Page 2 3-Craft Mini Storage Rack: Assembly Instructions BOX 1 - Frame Set Allen Bolt PART NAME Brass Nut A. BASE BAR (42”) ..........2 B. BASE BAR HULL GUARD (17”) ....4 C. BASE BAR END CAP ........4 D. UPRIGHT BAR (35”) ........2 E.
- Page 3 3-Craft Mini Storage Rack: Assembly Instructions Step 1 Pre-assembly of hardware onto components Parts Needed Quantity For the most efficient assembly, we recommend assembling the Top Cross Bar hardware onto some of the components prior to assembling the rack. with brackets...
- Page 4 3-Craft Mini Storage Rack: Assembly Instructions Step 2 Parts Needed Quantity STEP 2: Connect Bottom Cross Bar to Base Bars and Bottom Cross Bar install Upright Bars with brackets Base Bars (42”) Using the bottom cross bar with brackets (the cross bar with the eye Upright Bars (35”)
- Page 5 3-Craft Mini Storage Rack: Assembly Instructions Step 3 Parts Needed Quantity STEP 3: Assemble Top Cross Bar onto Upright Bars Top Cross Bar with allen bolts installed Slide the brackets on the ends of the top cross bar onto the upright bars.
- Page 6 3-Craft Mini Storage Rack: Assembly Instructions Step 4 Parts Needed Quantity STEP 4: Install Arms Arms Install (2) arms into the brackets on the top cross bar. Arm Hull Guards Arm End Caps Install (1) hull guard and (2) end caps onto each arm.
