Wall-Mounted Storage Rack
Assembly Instructions
MOUNTING your storage rack
The wall brackets of your storage rack need to be
WALL BRACKET
mounted to a stud, header or other secure material.
NOTE: You will need 8 fasteners (not included) for
attaching the wall brackets to your wall. The length
and style of these will vary based on your mounting
surface and location.
The fasteners you provide cannot be raised above
the channel in the bracket once installed into your
surface.
The
Dock Doctors
®
LLC
© 2016 The Dock Doctors - V0416
C
B
A
Toll Free: 1-800-870-6756 | info@thedockdoctors.com | www.thedockdoctors.com
F
G

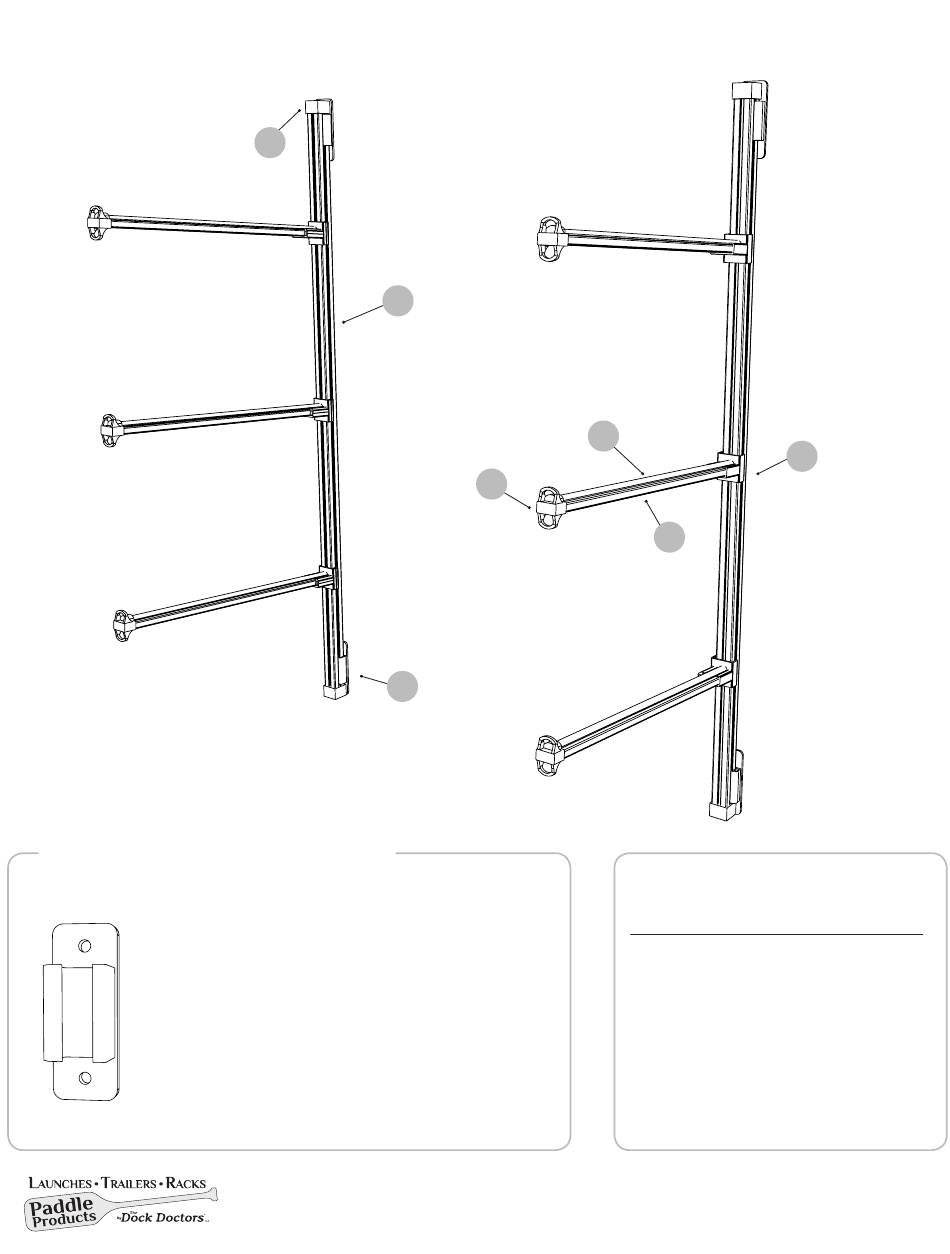

RACK COMPONENTS
PART NAME
A. WALL BRACKET ...................4
B. UPRIGHT BAR (80") .............2
C. UPRIGHT BAR END CAP .......4
D. ARM BRACKET .....................6
E. ARM (35") ............................6
F. ARM HULL GUARD (34") ......6
G. ARM END CAP ......................6
D
E
QTY
1
