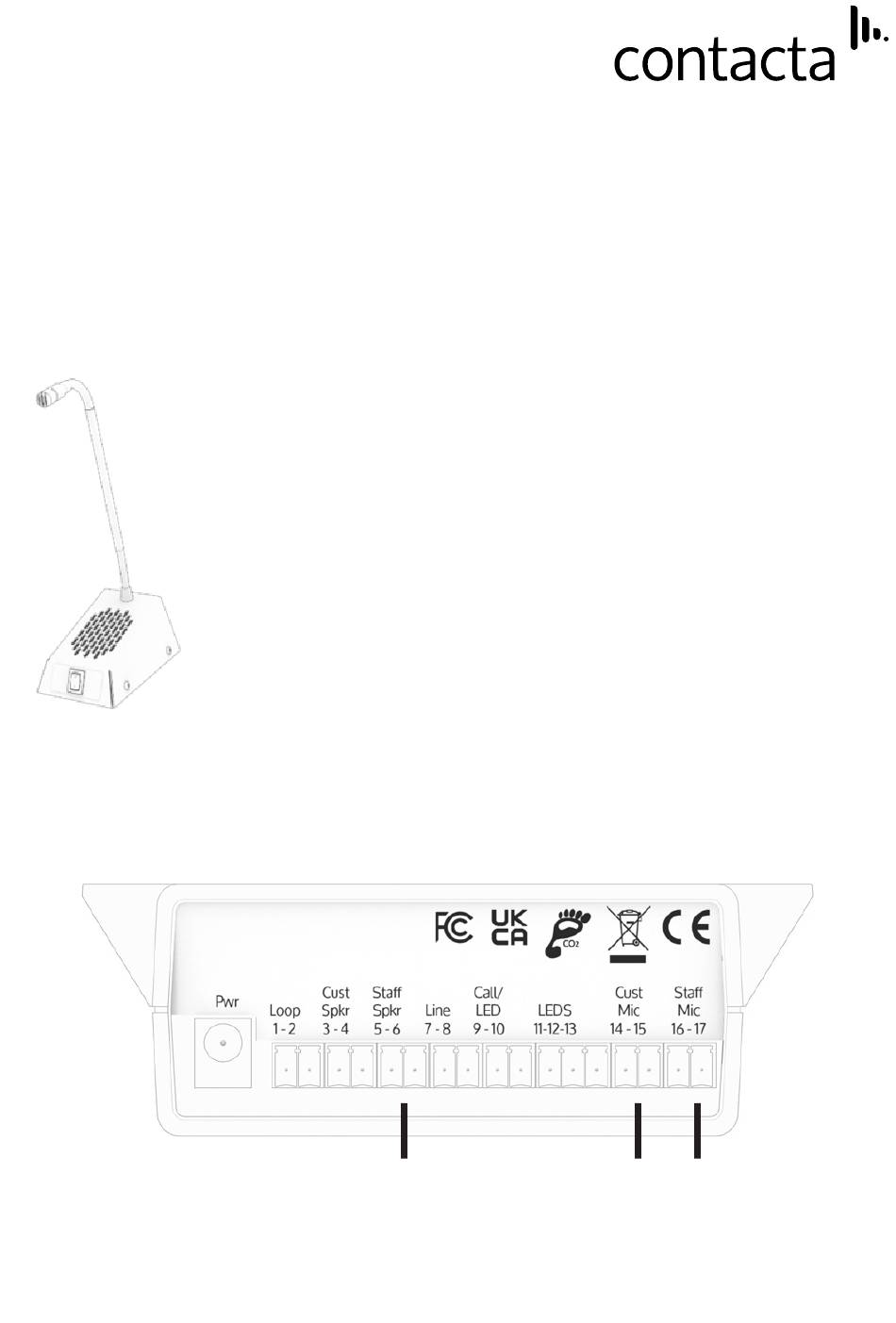

Dual Mute Switch | Setup Guide
STS-A31 Amplifier Rear
Staff Loudspeaker Unit with
STS-SU1-3W-B / STS-SU1-3W-G
Product Overview
Our free-standing combined speaker and directional
microphone module for the staff side has an integral
loudspeaker, microphone with a semi-rigid stem, adjustable
neck and dual mute switch.
The dual mute switch gives the following options when used
with a window intercom system:
•
Sound working on both staff and customer sides
•
Mute the staff side
•
Mute both staff and customer sides
Staff speaker
port
Customer mic.
port
Staff mic.
port
1
Advertisement
Related Manuals for Contacta STS-SU1-3W-B
Summary of Contents for Contacta STS-SU1-3W-B
- Page 1 Staff Loudspeaker Unit with Dual Mute Switch | Setup Guide STS-SU1-3W-B / STS-SU1-3W-G Product Overview Our free-standing combined speaker and directional microphone module for the staff side has an integral loudspeaker, microphone with a semi-rigid stem, adjustable neck and dual mute switch.
- Page 2 Note: A customer side speaker will connect directly to amplifier ports 3 and 4. Controls Staff Mic: Mutes staff microphone only On: Staff and customer microphone live Dual Mute: Staff and customer microphone muted UK & ROW US & Canada +44 (0) 1732 223900 +1 616 392 3400 sales@contacta.co.uk info@contactainc.com www.contacta.co.uk...
