Staff Loudspeaker Unit with Dual
Connections
There are 2 sets of cables extending from the rear of the unit.
The first cable set has 2 x female 2 pin euroblock connectors, one for the
microphone and one for the speaker.
These are connected to the staff side of the amplifier (see page 2).
Mute Switch
STS-SU1-3W-B / STS-SU1-3W-G
Setup Guide

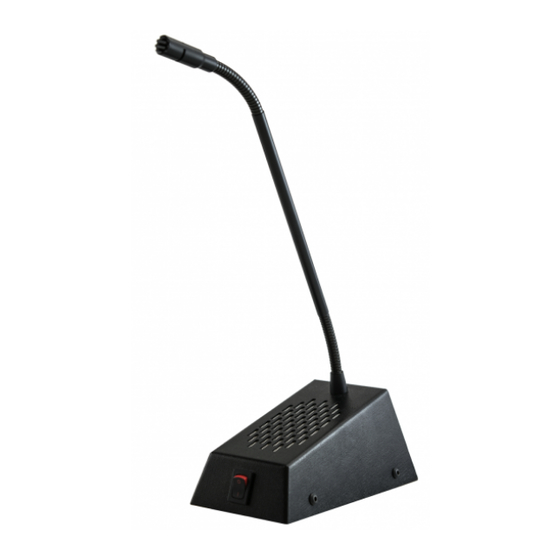

Product Overview
Our free-standing combined speaker and directional
microphone module for the staff side has an integral
loudspeaker, microphone with a semi-rigid stem, adjustable
neck and dual mute switch.
The dual mute switch gives the following options when used
with a window intercom system:
•
Mute the staff side
•
Sound working on both staff and customer sides
•
Mute both staff and customer sides
Advertisement
Table of Contents
Related Manuals for Contacta STS-SU1-3W-B
Summary of Contents for Contacta STS-SU1-3W-B
- Page 1 Staff Loudspeaker Unit with Dual Mute Switch STS-SU1-3W-B / STS-SU1-3W-G Setup Guide Product Overview Our free-standing combined speaker and directional microphone module for the staff side has an integral loudspeaker, microphone with a semi-rigid stem, adjustable neck and dual mute switch.
- Page 2 Staff microphone connection connection Controls Staff Mic: Mutes staff microphone only On: Staff and customer microphone live Dual Mute: Staff and customer microphones muted UK & ROW US & Canada +44 (0) 1732 223900 +1 616 392 3400 sales@contacta.co.uk info@contactainc.com www.contacta.co.uk...
