Wellav CMP331 User Manual

Common media platform ip modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

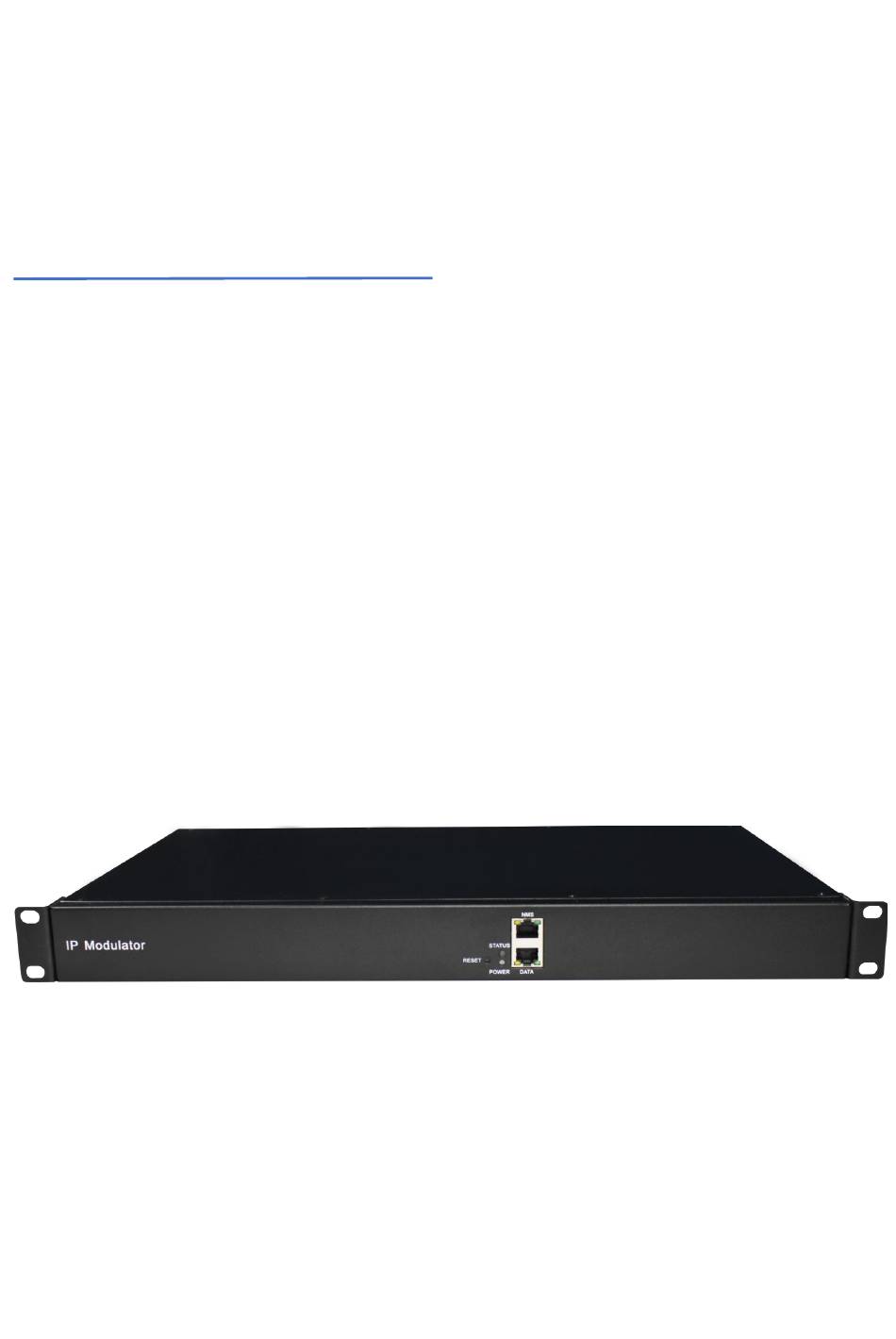

CMP331
Common Media Platform
IP Modulator
User Guide
V1.1-W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMP331 and is the answer not in the manual?

Questions and answers

Related Manuals for Wellav CMP331

Summary of Contents for Wellav CMP331

  • Page 1 CMP331 Common Media Platform IP Modulator User Guide V1.1-W...
  • Page 2 CMP331 User Guide Revision History Date Version Description Author 10/1/2018 First Draft 20/3/2024 Fix some editing errors and format errors This guide contains some symbols to call your attention. The DANGER symbol calls your attention to a situation that, if ignored, may cause DANGER physical harm to the user.

  • Page 3: Safety Instructions

    CMP331 User Guide Safety Instructions • Read these instructions • Keep these instructions • Follow all instructions • Heed all warnings • Do not use this unit near water. • Only use a damp cloth to clean chassis • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat •...

  • Page 4: Safety Precautions

    CMP331 User Guide SAFETY PRECAUTIONS There is always a danger present when using electronic equipment. Unexpected high voltages can be present at unusual locations in defective equipment and signal distribution systems. Become familiar with the equipment that you are working with and observe the following safety precautions.

  • Page 5: Table Of Contents

    CMP100 User Guide Contents PART 1 CHASSIS OVERVIEW ............................1 1.1 F ................................. 1 RONT ANEL 1.2 B ................................... 1 ANEL PART 2 INSTALLATION ..............................2 2.1 R ................................. 2 NSTALLATION 2.2 AC P ..............................2 OWER ONNECTION PART3 WEB GUI ................................4 3.1 W GUI O ...............................

  • Page 6: Part 1 Chassis Overview

    CMP100 User Guide Part 1 Chassis Overview 1.1 Front Panel CMP331M series is brand of IP receiver multiplexing modulator which is specifically designed for Hotel television system with its high integration and cost effective. It supports up to 128 channels IP inputs and 4/8 channels QAM/ DTMB/OFDM modulating outputs.

  • Page 7: Part 2 Installation

    CMP100 User Guide Part 2 Installation 2.1 Rack Installation The CMP331M is designed to be mounted in a standard 19” rack. It takes 1RU of rack space. To install it into a rack, please use the following steps: 1. Determine the desired position in the rack for the CMP331M. Make sure that the air intake on the back of the unit will not be blocked.
  • Page 8 CMP100 User Guide When you take the equipment from a cold condition into a much warmer and humid condition, the equipment should be acclimated to the warm and humidity condition for at least 30 minutes. Powering up a non-acclimated unit may lead to shortcut or other damage to electronic components. A professional UPS system is recommended for better performance of your content distribution system.

  • Page 9: Part3 Web Gui

    CMP100 User Guide Part3 Web GUI 3.1 Web GUI Overview 3.1.1 Connecting to the Management Port Factory network settings of the Management Port: • NMS IP address 192.168.1.10 • Subnet Mask 255.255.255.0 • Gateway 192.168.1.254 Factory network settings of the Data Port: •...

  • Page 10: Logging Into The Web Gui

    CMP100 User Guide 3.1.2 Logging into the Web GUI Type the CMP331M Baseboard IP address into the URL field of any recommended browser (IE8 or above, Firefox, and Google Chrome) to access the logon page. By default, the admin user account is admin with password admin.

  • Page 11: System Setting

    CMP100 User Guide We use only IE, Firefox and Chrome for testing procedures. If you use other browsers, like Microsoft Edge, you may encounter incomplete UI layouts, and configure setting in these browsers may lead to errors. Status>Device Information Device Information page shows the logical version, software version, and hardware version of modulation module.
  • Page 12 CMP100 User Guide System Setting> System In System page you can upgrade baseboard, import or export configuration, restart or reset to factory setting and export log. System Setting> Password In Password page you can reset login password.

  • Page 13: Tsoip Input

    CMP100 User Guide 3.4 TSoIP Input Click the TSoIP Input on the top right corner into input status page where you can find Status, Settings, Batch Setting, and Service Configuration. TSoIP Input>Status In status page you can check the Total Bitrate and Effective Bitrate. Click the icon ( ) under the TS Analysis to check the information of each channel TS input.
  • Page 14 CMP100 User Guide TSoIP Input>Settings In Settings page you can enable IP input channel and deploy Source IP address, Source port, choose Protocol (RTP, UDP), and setting Encap TS Packet Number. Click the Apply button in the right side to make the change take effect. TSoIP Input>Batch Setting In Batch Setting page you can batch set input ports as Enable/Disable with consecutive or same IP addresses, choose Protocol (RTP, UDP), and set Encap TS Packet Number.
  • Page 15 CMP100 User Guide TSoIP Input>Service Configuration In Service Configuration page you can set TS/program destination. Click Clear config button in the right side to clear all configurations. Click Apply button to make the setting take effect. Channel Scan button is on the right corner of the page, select the channel which is newly added or modified and scan for updating the channel content.

  • Page 16: Admin

    CMP100 User Guide When you choose the boxes in the specific Channel line means to pass through the TS of this input channel to the certain destinations. When you choose the boxes in the specific program line means to multiplex the service to the certain destinations. You can select different services from different input channels to the same destination for multiplexing.

  • Page 17: Part 4 Modulation Module Configuration

    CMP100 User Guide Part 4 Modulation Module Configuration 4.1 Modulation Output modules 4.1.1 CM-DTMB CM-DTMB-00/01 module supports up to 4/8 adjacent frequencies modulating via 1 RF female port for output. Click the module bar under the Module list to go into the module page. CM-DTMB-01 >Status ⚫...
  • Page 18 CMP100 User Guide CM-DTMB-01 >Setting You can set modulation Frequency and RF Level. Click the Apply button in the right side to make the change take effect. Name Range Name Range Frequency Range 50~900 Constellation 4QAM-NR/4QAM/16QAM/32QAM/64QAM (MHz) RF Level (dBµ) Max.
  • Page 19 CMP100 User Guide ⚫ Edit TS information The channel details list on the left. Click the TS of a certain channel to open the TS edit sheet. You can edit the Original Network ID, TS ID, Service ID, Service Name, Service Provider in this sheet. Click the OK or Cancel button to take the change effect or cancel the operation.
  • Page 20 CMP100 User Guide ⚫ Edit NIT Network descriptor Click the NIT tag of a certain TS to open the NIT edit sheet of the TS. You can add/edit/delete the Tag and Data of NIT Network descriptor. ⚫ Edit NIT Stream Click the NIT Stream to go into the NIT stream sheet.

  • Page 21: Cm-Ofdm

    CMP100 User Guide Add/edit/delete LCN. 4.3.2 CM-OFDM CM-OFDM module supports up to 4/8 frequencies modulating with 1 RF female connector for output. 4.3.3 CM-QAMA CM-QAMA module supports up to 4/8 frequencies modulating with 1 RF female connector for output.

  • Page 22: Part 5 Appendices

    CMP100 User Guide Part 5 Appendices Appendix A - Abbreviations Bouquet Association Table Bit Error Ratio Bit Rate The rate at which the compressed bit stream is delivered British Naval Connector Conditional Access Table Category 6 – Cable standard for gigabit Ethernet CAT6 Constant Bitrate Decibel...

  • Page 23: Appendix B- Warranty

    CMP100 User Guide OFDM Orthogonal Frequency-Division Multiplexing Program Association Table Program Clock Reference Packet Identifier Program Map Table Program Specific Information Power Supply Unit Quadrature Amplitude Modulation QPSK Quadrature Phase-Shift Keying Standard Definition Service Description Table Service Information SNMP Simple Network Management Protocol Signal Noise Ration SPTS Single Program Transport Stream...
  • Page 24 CMP100 User Guide Returning Products for Service The CMP331 is a delicate piece of equipment and needs to be serviced and repaired by the manufacturer. In order to expedite this process please carefully read the following items. • Confirm the required component...
