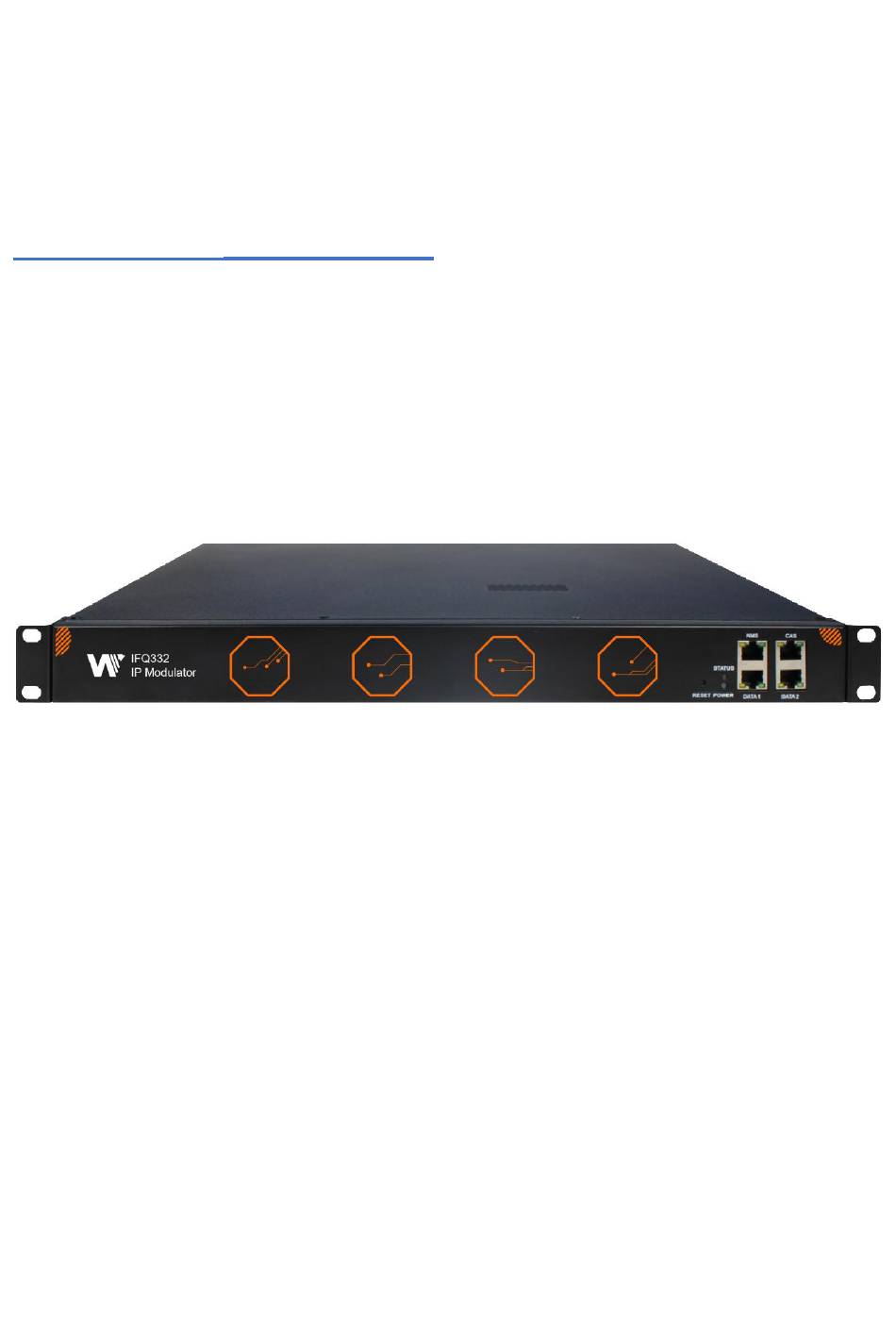

IFQ332
Media Platform
User Guide
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFQ332 and is the answer not in the manual?

Questions and answers

Related Manuals for Wellav IFQ332

Summary of Contents for Wellav IFQ332

  • Page 1 IFQ332 Media Platform User Guide V1.2...
  • Page 2 IFQ332 User Guide Revision History Date Version Description Author Sept 2018 First Draft Dec 2019 First Revision This guide contains some symbols to call your attention. The DANGER symbol calls your attention to a situation that, if ignored, may cause DANGER physical harm to the user.
  • Page 3 IFQ332 User Guide Safety Instructions    Read these instructions  Keepthese instructions  Follow all instructions  Heed all warnings  Do not use this unit near water.  Only use a damp cloth to cleanchassis  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 4: Table Of Contents

    IFQ332 User Guide Table of Contents Chassis Overview ............................5 Front Panel ..............................5 Back Panel ..............................5 Installation ..............................6 Rack Installation ............................6 AC Power Connect ............................ 7 Operation Guide ............................8 Web-Base GUI Introduction ........................8 Accessing Management ..........................8 Status ..............................

  • Page 5: Chassis Overview

    2 port for the Data below 2. Status LED, Power LED and Reset Button Back Panel IFQ332 connections for the output is located at the back as shown in the image below. 1. RF port for Output 2. Exhaust Fan 3.

  • Page 6: Installation

    2 Installation Rack Installation IFQ332 is designed to be mounted in a standard 19” rack. It takes 1RU of rack space. Before you start, make sure that the chassis is in good condition and that you have the tools and equipment needed.

  • Page 7: Ac Power Connect

    Please only use the supplied 3-prong power connector or one with equal specifications. NEVER tamper with or remove the grounding pin. This could cause damage to IFQ332, personnel, or property. Make sure the power outlet is switched off before plug or unplug the power cable from the panel of IFQ332.

  • Page 8: Operation Guide

    IFQ332 provides a user-friendly Web-based GUI to configure the device and constantly monitor the device status. Open the browser and input the default IP address of the IFQ332. Input the default username and password admin/admin and click login. See image below for reference.
  • Page 9 IFQ332 User Guide After you login on IFQ332. You will be redirect to the Status page of unit under Device Management as show in the image below. 1. Logo and Model of the Device 2. Main Navigation menu shows Status, Parameter Setting, Service Configuration, Scrambler Configuration and System Settings.

  • Page 10: Status

    Device Status> Once you login on the IFQ332 Management, you will automatically redirect to Device Status of IFQ332. This show the Front Panel Image with label of each port, reset button and LED light. It also shows the Back-Panel Image with label of RF QAM and Power. On the bottom part of the page, it shows the Device Version and usage.
  • Page 11 IFQ332 User Guide This show the 256 channels in first port. To check the details on the channel, click the eye icon under the TS Analysis and it will show the PAT, CAT, PID etc. See image below for reference.

  • Page 12: Parameter Setting

    You can also check the details of the service when you click the Service Name QAM Output Status>IFQ332 status also show the QAM output. Just like the IP Input, this show the Total Bitrate and effective Bitrate in each 32 channels. The TS Analysis and Service List have the same function as in the IP input.
  • Page 13 IFQ332 User Guide and select the correct Protocol for the source IP.Once done. Click Apply for the changes take effects. See image below for reference Batch Setting is the tab where you can Batch input the IP address on a batch of channel.

  • Page 14: Service Configuration

    IFQ332 User Guide QAM Output Parameter Setting> In this page, you can enable how many channels you want to use and input the Frequency (KHz), Bandwidth (M), Constellation and Symbol Rate (KBaud) to have an output. Here is the range parameter for the said info...
  • Page 15 IFQ332 User Guide Service Configuration Source> Source is where you select which source is the service you want to output. There are Port 1 and Port 2 selection for the source, each port are divided into 8 groups to complete the 256 channels. Select the Port, the Group and the Channel to show the...
  • Page 16 IFQ332 User Guide Service Configuration Service Edit> After you output the services from TSIP input to QAM. You can now edit the Service ID and other PID on the output. Click on the Service Edit to see this page, It shows the output service on this channel only.
  • Page 17 IFQ332 User Guide For the LCN Descriptor. Input the Service ID and the LCN for the channel line-up of the services. For the Cable Descriptor. Input the correct frequency and SymbolRate on the corresponding TS output. Creating Cable descriptor is depending on the setup you use. Mostly, Cable descriptor is created in 1 TS only.

  • Page 18: Scramble Configuration

    IFQ332 User Guide IFQ332 Scramble Configuration is where we encrypt the service on the QAM output. Scrambler can be connected 4 different CAS system simultaneously. There are five tabs on this page namely CAS1, CAS2, CAS3, CAS4 and Program Scramble Setting. The first 4 tabs have the same interface.

  • Page 19: System Settings

    This is advisable if you have 10 or more service in single channel output. See image below for reference. System Settings IFQ332 System Settings is compose of four sub menus namely Network, Time, System Operation and Log Manage. Network> Here we can modify the device IP address, Subnet mask and Default Gateway on each port.
  • Page 20 IFQ332 User Guide Manual Setting Automatic Setting System Operation>here we can upgrade the Device Baseboard, TSIP input and QAM output to the version we needed. We can also import and export configuration of the device. We can also change the license of the device if we need lower channel output or use the license to control the expiration of the unit.
  • Page 21 IFQ332 User Guide Log Clean / Clear Screen / Log Export By clicking the filter icon. You can simply select what log R&D need to see.

  • Page 22: Appendix

    IFQ332 User Guide 4 Appendix Appendix A: Terminologies BAT ：Bouquet Association Table CAT ：Condition Access Table DVB: Digital Video Broadcasting EIT：Event Information Table ISO ：International Organization for Standardization QAM ：Quadrature Amplitude Modulation LED ：Light-emitting diode MPEG ：Moving Picture Experts Group MPTS ：Multiple Programs Transport Stream...

  • Page 23: Appendix C: After-Sales Support

    Please contact our sales/regional representatives for any help, product information, and troubleshooting. Returning Products for Service The IFQ332 is a delicate piece of equipment and needs to be serviced and repaired by the manufacturer. In order to expedite this process, please carefully read the following items. ...
