NOTE:
!
ESD sensitive product.
Use ESD protection equipment.
ESD
Particle filter
Installation and soldering
See IPC-J-STD-001 for acceptable soldering conditions in general.
Selective soldering machine (drag soldering method): Soldering temperature 295°C during three seconds.
Hand soldering: Soldering iron temperature 380°C during two seconds/pin.
Mechanical properties
Please refer to mechanical drawing for detailed specification of dimensions and tolerances.
Layout considerations:
Use cut-outs or slits in main board to reduce mechanical stress to sensor due to board thermal expansion.

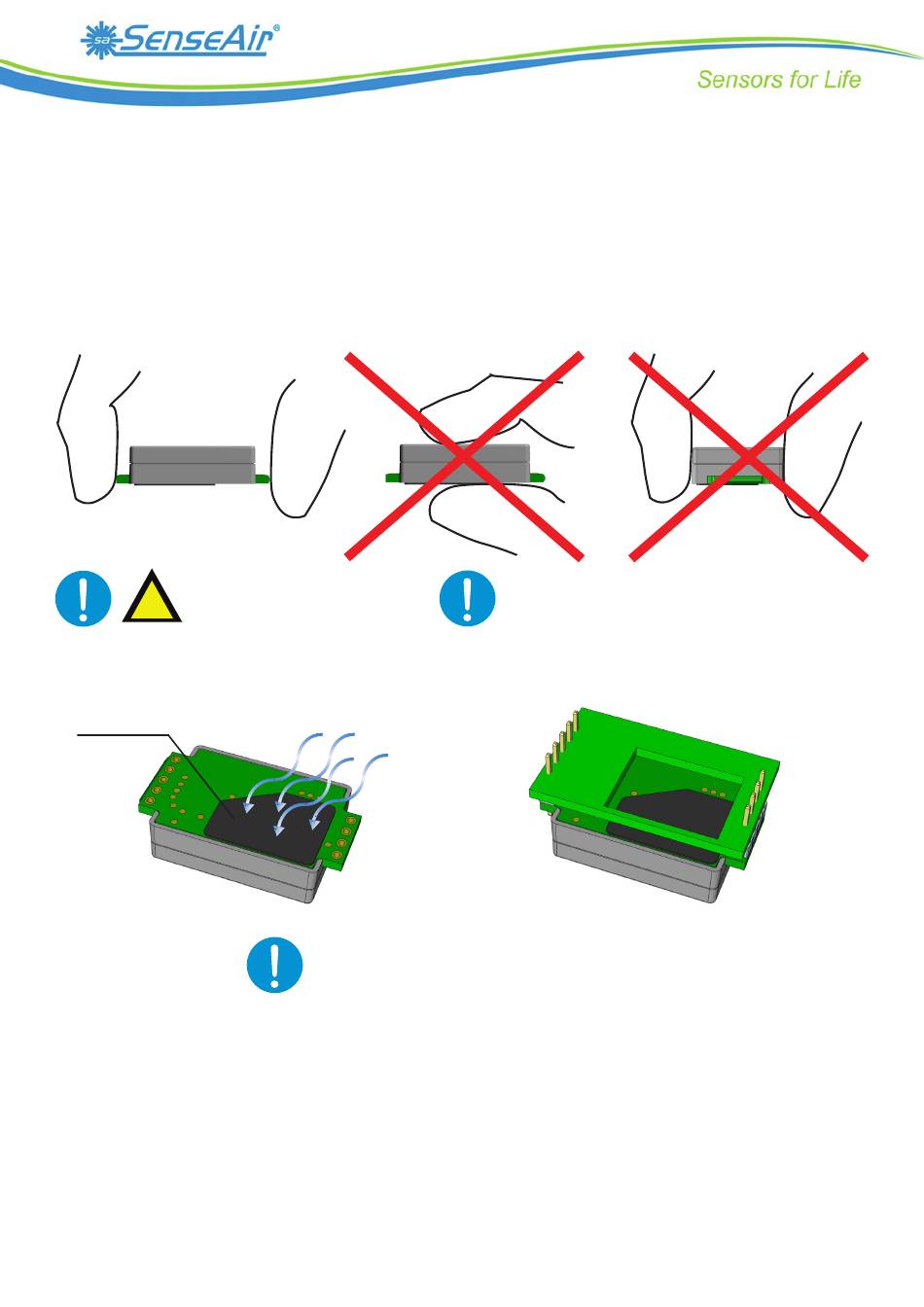

Handling Manual
Miniature CO
with NDIR technique
NOTE:
To ensure airflow, and quick sensor response time to
changes in environment: do not block particle filter!

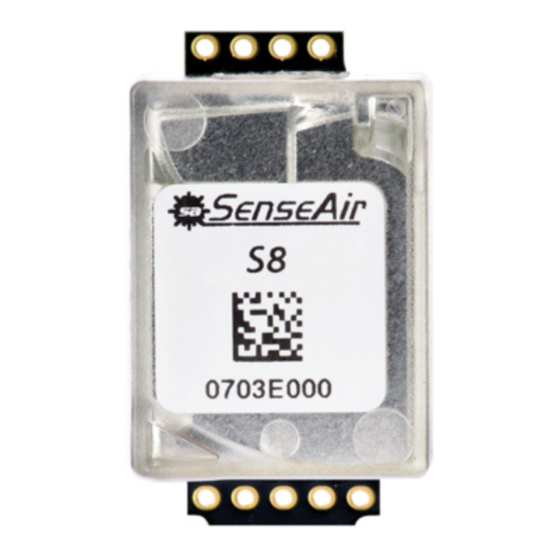

S8
sensor module
2
NOTE:
Handle sensor by holding PCB only.
Never touch sensor with bare hands! Use clean gloves
to avoid dust, grease or other contaminations.
OBA shall not be subjected to any force.
Document
ANO102
Edition
Page
1
1 (2)
Advertisement
Table of Contents
Related Manuals for SenseAir S8
Summary of Contents for SenseAir S8
- Page 1 Handling Manual Miniature CO sensor module with NDIR technique NOTE: NOTE: ESD sensitive product. Handle sensor by holding PCB only. Never touch sensor with bare hands! Use clean gloves Use ESD protection equipment. to avoid dust, grease or other contaminations. OBA shall not be subjected to any force.
- Page 2 Transport, handling and assembly may affect calibration. Accuracy is defined after minimum three weeks of continuous operation with ABC in normal IAQ applications. Different options exist and can be customized depending on the application. Please, contact SenseAir for further information! Preferably, please inspect and perform zero calibration after any, or all, transports.
