- Page 1 SYS-100M Series User manual M-111 -licktronic...

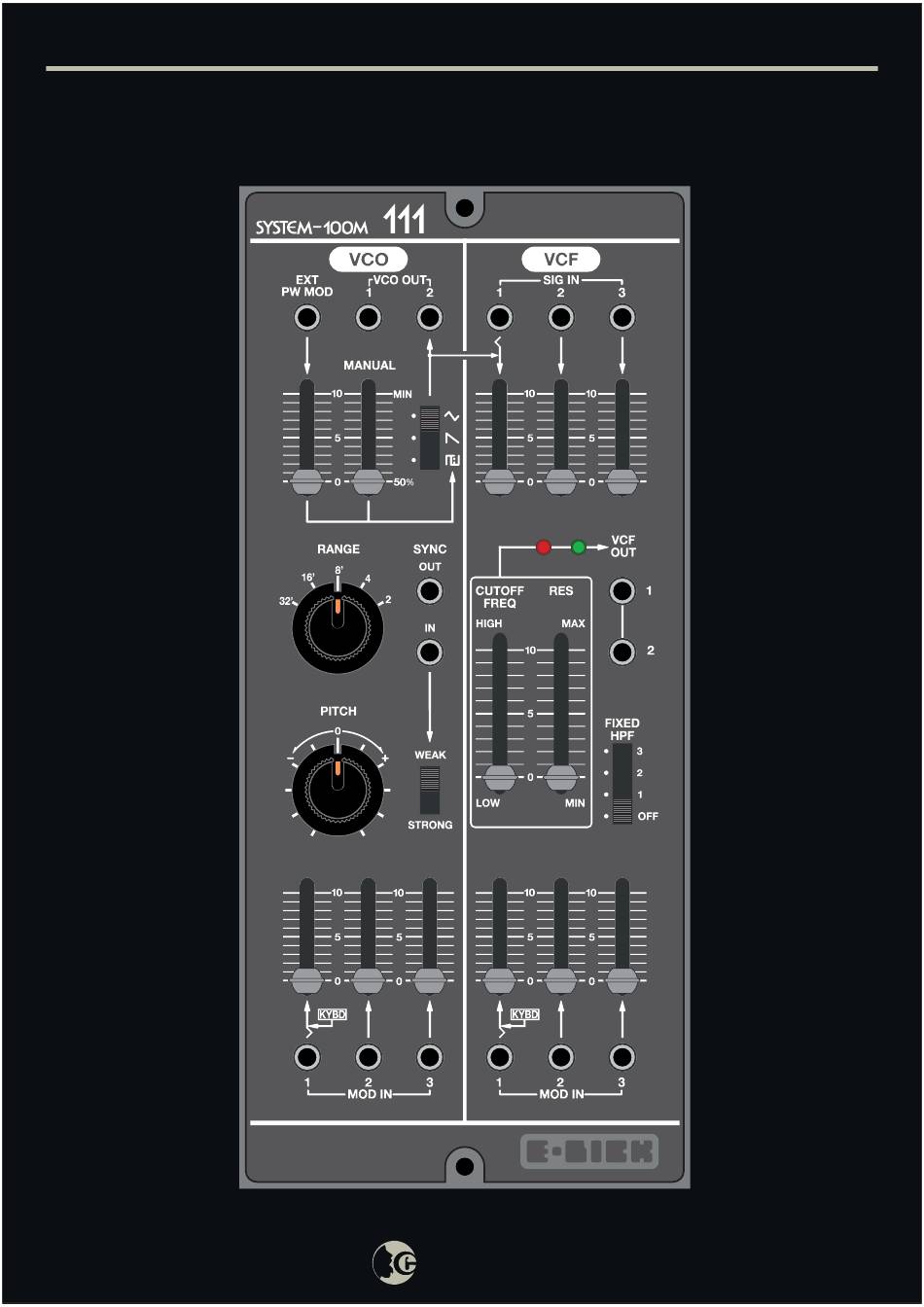

- Page 2 INTRODUCTION M-111 is a voltage controlled oscillator combined with a voltage controlled filter SYS-100M Series...
-
Page 3: Vco Section
Controls the level of the input voltage from the MOD IN Jacks Input jack for the control voltage of the VCO frequency. *The 1th jack is internally connected with the KYBD CV input. SYS-100M Series... - Page 4 Fixed high pass filter. When the position is switched 1, 2 or 3, the cutoof frequency is raised This slider controls the level of the input control voltage from the input Input jack for the control voltage that controls the VCF cutoff point SYS-100M Series...
-
Page 5: Specifications
MODULATION INPUT (Imp: Greater than 50kOhm) VCF OUTPUT (Imp: less than 1kOhm) -INDICATOR Normal load (GREEN): 200mVp-p Overload (RED): 15Vp-p -POWER CONSUMPTION +15V +-1% 60mA -15V +-1% 50mA +22V +-5% 40mA (for LED’s) -DIMENSIONS 103(W)x230(H)x52(D)mm -NET WEIGHT 500g SYS-100M Series... - Page 6 @e_licktronic...
