SYS-100M Series
User manual
M-142
MANUAL GATE
ATTACK
DECAY
TIME
TIME
EXT GATE
LOOP AD
ON
OFF
MANUAL GATE
ATTACK
DECAY
TIME
TIME
EXT GATE
LOOP AD
ON
OFF
A
D
-licktronic
ENV-1 OUT
SUSTAIN
RELEASE
LEVEL
TIME
TO ENV-2
LOGIC
OUT
TO SUM
OUT
ENV-2 OUT
SUSTAIN
RELEASE
LEVEL
TIME
TO ENV-1
LOGIC
OUT
TO SUM
OUT
S
R
Advertisement
Related Manuals for e-licktronic SYS-100M Series
Summary of Contents for e-licktronic SYS-100M Series

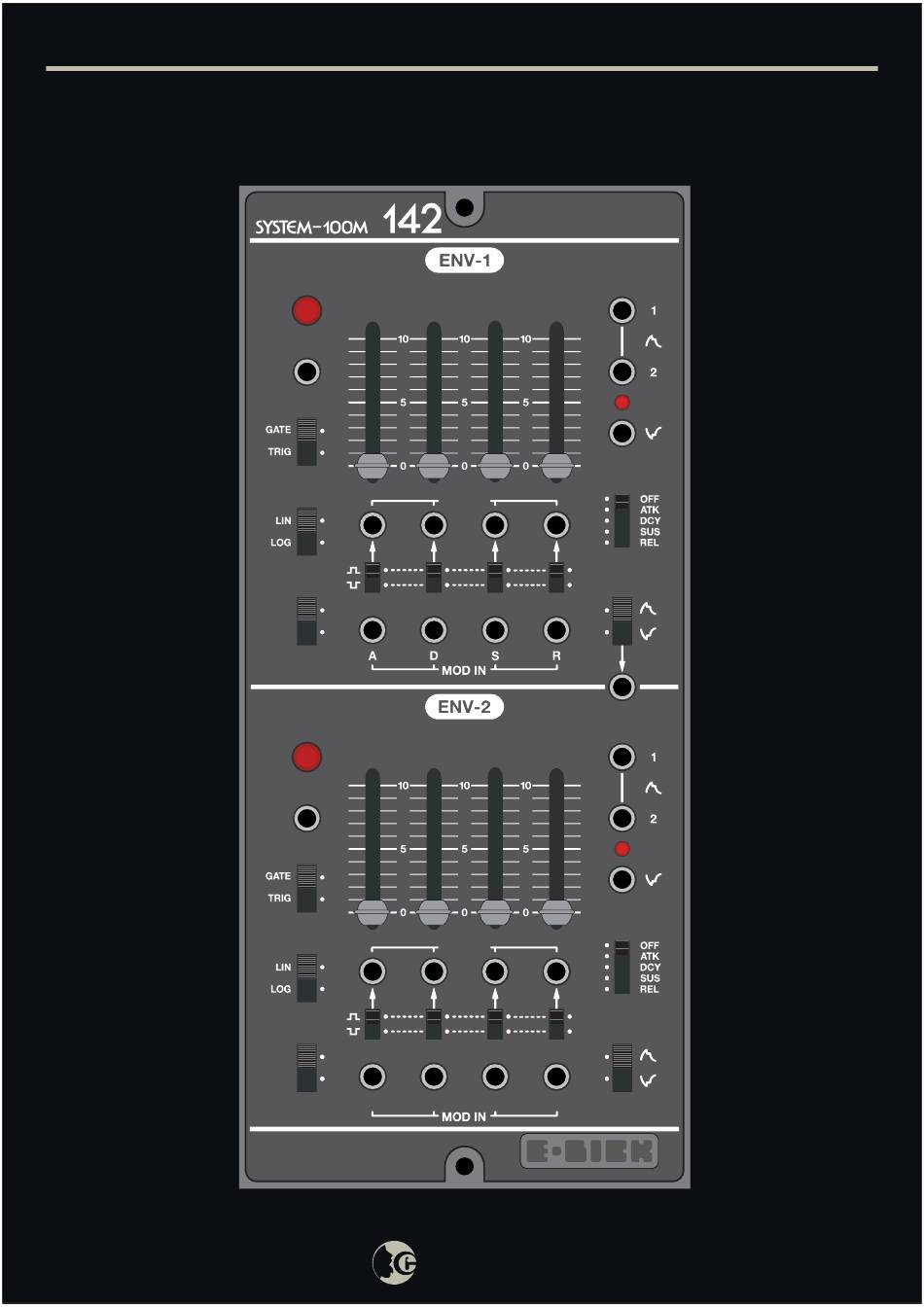

- Page 1 SYS-100M Series User manual M-142 MANUAL GATE ENV-1 OUT ATTACK DECAY SUSTAIN RELEASE TIME TIME LEVEL TIME EXT GATE TO ENV-2 LOGIC TO SUM LOOP AD MANUAL GATE ENV-2 OUT ATTACK DECAY SUSTAIN RELEASE TIME TIME LEVEL TIME EXT GATE...
- Page 2 4-step sequencer, which has no less than 8 different configurations. An additional 9th configuration allows the entire module to be defined in one 8-step sequencer. Once configured, the module saves your last configuration and reloads it the next time you turn it on SYS-100M Series...
- Page 3 LOOP AD the first Be careful when setting the target on the other envelope, this could result in a undesirable effect. For example if you define ENV2 triggered by ENV1’s attack and set ENV1 triggered also by ENV2’s attack. SYS-100M Series...
- Page 4 ENV Mode ENV (Envelope Generator) TIME GATE ON GATE OFF Logic Outputs State The polarity of the logic state outputs depends on the position of the corresponding switch SYS-100M Series...
- Page 5 Press one of the two buttons to exit the function selection mode. You can set each module independently except for the 8-step sequencer, which uses the controls of both the upper and lower modules. The function of each switch, slider, and jack varies for each mode. Let’s describe them. SYS-100M Series...
- Page 6 LOGIC The LED shows the active step as follows: TO SUM -> Step 1 LOOP AD -> Step 2 -> Step 3 -> Step 4 The second 4-step sequencer works like the first one SYS-100M Series...
- Page 7 This switch selects the polarity of the signal summed on the common output This jack is the common output of the TO ENV-1 summed signal from upper and lower module LOGIC TO SUM The second VCLFO works like the first one LOOP AD SYS-100M Series...
- Page 8 LIN -> 0 to 5V, LOG -> 0 to 2V This switch functions similarly to the upper TO ENV-1 LOGIC switch but only affects steps 5 to 8 TO SUM LOOP AD This switch functions similarly to the upper switch but only affects steps 5 to 8 SYS-100M Series...
- Page 9 -> Step 6 EXT GATE -> Step 7 -> Step 8 This switch selects the sequencer direction: OFF -> Forward, ATK -> Backward, TO ENV-1 DCY -> Pendulum, SUS -> Ping-Pong LOGIC and REL -> Random TO SUM LOOP AD SYS-100M Series...
-
Page 10: Specifications
DECAY CV Input (0-10V) SUSTAIN CV Input (0-10V) RELEASE CV Input (0-10V) Summed output (Imp: less than 1kOhm) -INDICATOR Rate indicator dual color LED -POWER CONSUMPTION +15V +-1% 60mA -15V +-1% 30mA +22V +-5% 0mA -DIMENSIONS 103(W)x230(H)x52(D)mm -NET WEIGHT 500g SYS-100M Series... - Page 11 @e_licktronic...
