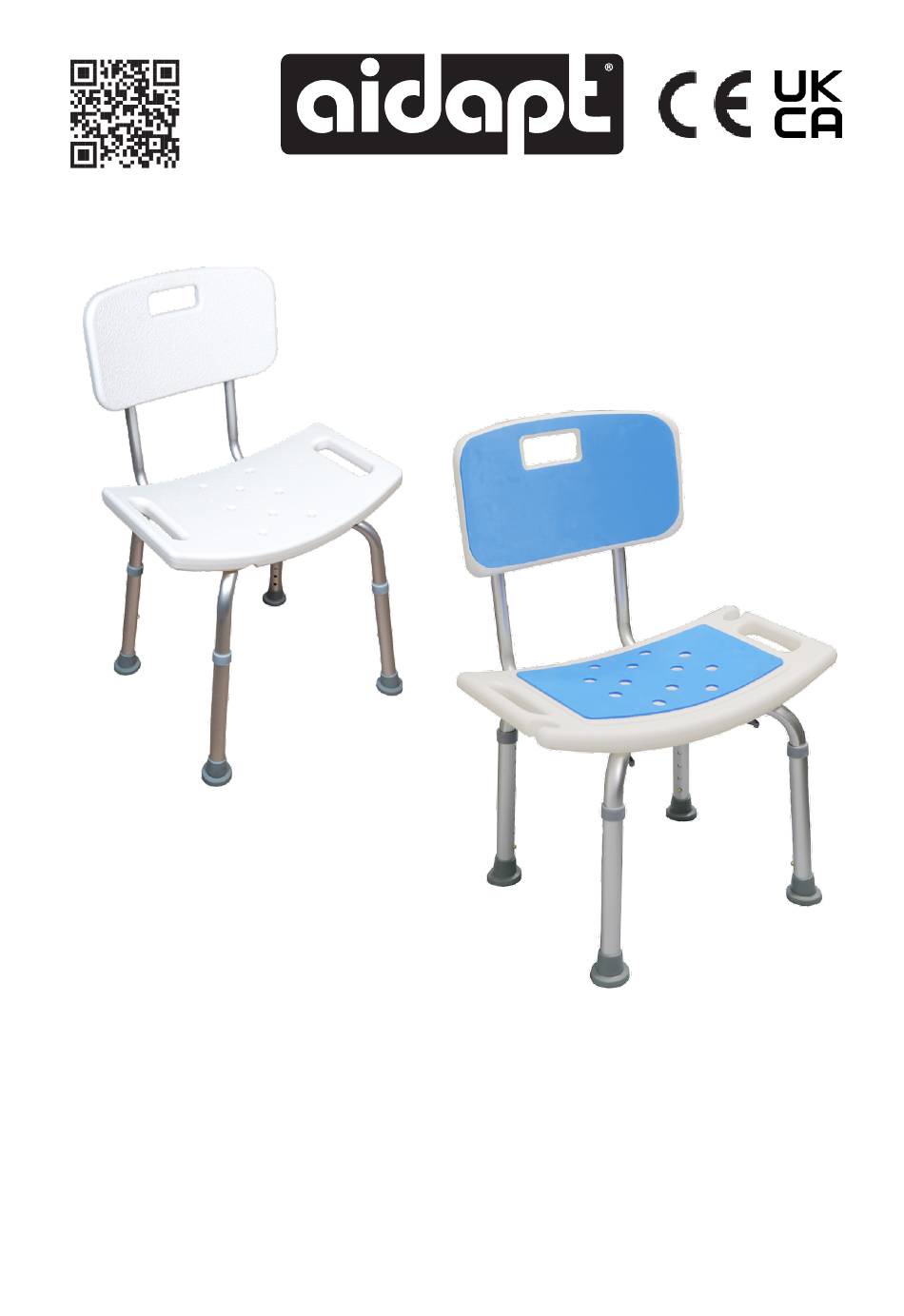

Shower Chair with Back
VB540S/VB540W
Usage and Maintenance Instructions
This file is available to view and download as a PDF at
www.aidapt.co.uk. Sight impaired customers can use a free
PDF Reader (such as adobe.com/reader) to zoom in and
increase the text size for improved readability.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VB540S and is the answer not in the manual?

Questions and answers

Related Manuals for aidapt VB540S

Summary of Contents for aidapt VB540S

  • Page 1 Usage and Maintenance Instructions This file is available to view and download as a PDF at www.aidapt.co.uk. Sight impaired customers can use a free PDF Reader (such as adobe.com/reader) to zoom in and increase the text size for improved readability.

  • Page 2: Maximum User Weight

    MAXIMUM USER WEIGHT VB540S - 120kg (18.98 Stone) maximum user weight limit. DO NOT exceed the weight stated - doing so could put the user at risk VB540W - 120kg (18.98 Stone) maximum user weight limit. DO NOT exceed the...
  • Page 3 ASSEMBLY PLEASE NOTE: We do not recommend the use of battery operated screw driver when assembling this product, make sure screws are tight and the seat is stable. 1. Lay the seat board flat. • Ensure the arrow symbol on the seat is facing forward. (See Fig. 1) (Fig.
  • Page 4 • Recognise leg assembly B by its distinctive features. Whenstanding upright, leg assembly b displays a cut-out on the top of the tube and a flat underside, as shown in (Fig. 3) (Fig. 3) 3. Attaching the legs to the seat board. •...
  • Page 5 Step 3 continued. (Fig. 5) 4. Attaching the first part of the back rest (U-Shaped Part). • To begin, align the U-shaped part with its attchment ends pointing towards the back, utilizing the arrow on the underside of the seat as a guide for correct orientation (Refer to Fig.
  • Page 6 Step 4 continued (Fig. 6) Ensure the U-shaped bracket is this way up, so the 2 holes are exposed. These will be used to attach the backrest. Large Screws 5. Attaching the L-shaped bars to the backrest (L-Shaped Part) • To continue with the assembly, you will need the 4 x short screws and 4 x washers provided.
  • Page 7 6. Connecting the backrest to the seat. • Begin by inserting the L-shaped bars into the U-shaped part located underneath the seat. Take care to align the bars correctly and esnure they are fully inserted into the U-shaped part. creating a snug fit •...

  • Page 8: Technical Specifications

    Colour White Overall Height 690-868mm Overall Depth 440-490mm Overall Width 500mm Seat Width 490mm Seat Depth 300mm Back Rest 385x230mm Product Dimensions 690-868mm x 400-540 x 500 Net Weight 2.9kg Maximum User Weight (VB540S) 120kg Maximum User Weight (VB540W) 120kg...

  • Page 9: Care And Maintenance

    The information given in this instruction booklet must not be taken as forming part of or establishing any contractual or other commitment by Aidapt Bathrooms Limited, Aidapt (Wales) Ltd or its agents or its subsidiaries and no warranty or representation concerning the information is given.

  • Page 10: Service / Warranty

    A copy of the instructions leaflet can be downloaded from our website. Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, WA9 3EX Telephone: +44 (0) 1744 745 020 • Fax: +44 (0) 1744 745 001 • Web: www.aidapt.co.uk Email: accounts@aidapt.co.uk • adaptations@aidapt.co.uk • sales@aidapt.co.uk Aidapt B.V, Algolweg 22, 3821BH Amersfoot, Netherlands...

This manual is also suitable for:

Vb540w
