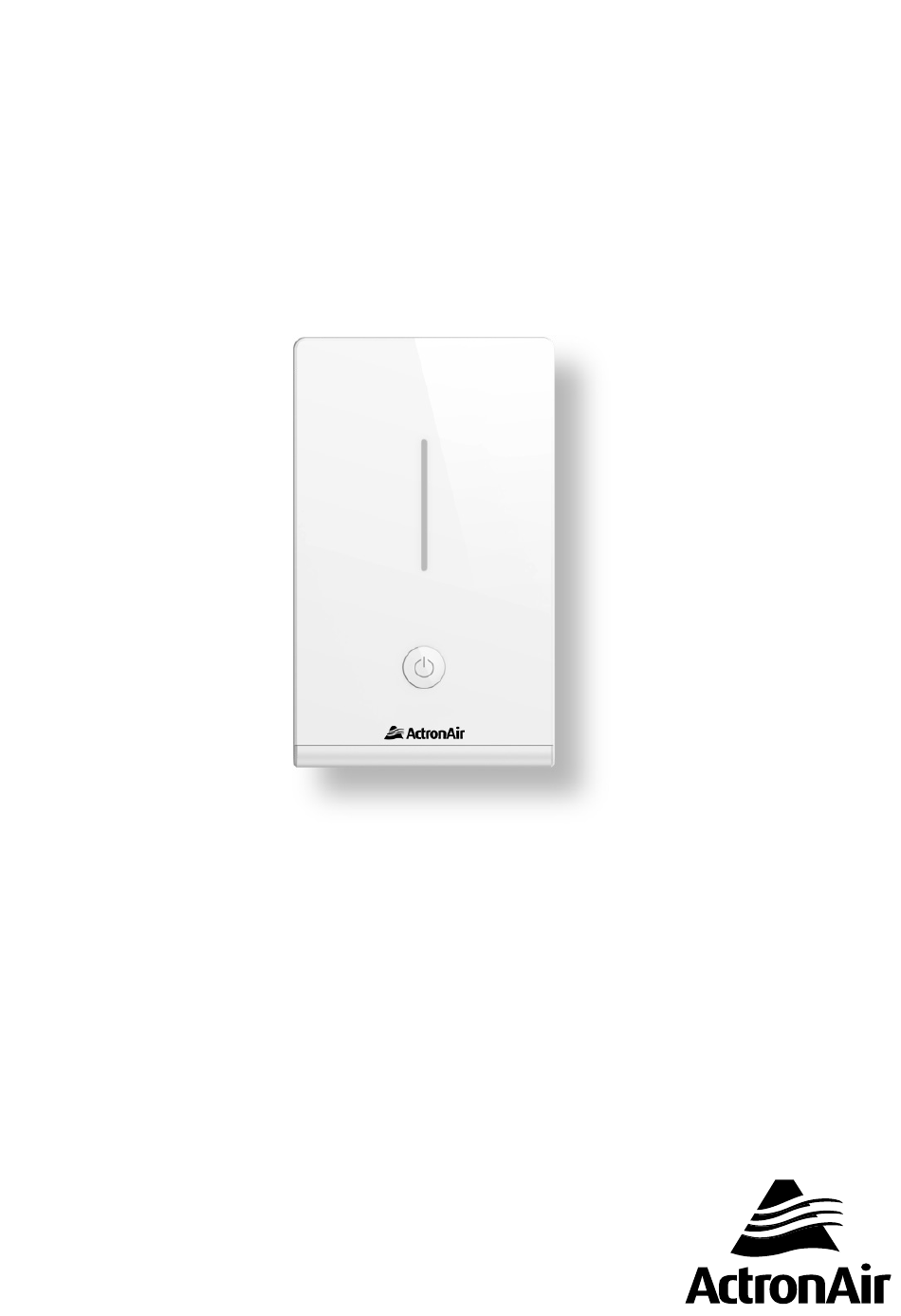

- Page 1 NEXUS ZONE SENSOR Installation and Commissioning Guide Model: ZSW-01 IMPORTANT NOTE: Please read this manual carefully before installing or operating your sub controller. Please keep this manual for future reference.
-
Page 2: Table Of Contents
Installation Guide and Owner’s Manual Zone Sensor Table of Contents 01. SAFETY PRECAUTIONS .........................3 01.01. Safety Instructions ........................ 3 01.02. Codes, Regulations and Standards ..................3 01.03. Waste Electrical and Electronic Equipment Disposal Guidelines .......... 3 02. Instructions for use ........................4 03. -
Page 3: 01. Safety Precautions
• Only licensed technicians are allowed to perform the procedures described in this guide. • The ActronAir Group Control kit is NOT FOR OUTDOOR USE. Install the kit away from excessive dust, heat and moisture. -
Page 4: 02. Instructions For Use
Installation Guide and Owner’s Manual Zone Sensor 02. Instructions for use Indicator light ON / O button Indicator light (Blue) : Pairing mode Indicator light (Red) : Damper close Indicator light (Green) : Damper open On/Off button : Open/close damper On/Off button (Long press) : Start pairing mode Indicator light (Flash Red Twice) : No Communication to Control Board... -
Page 5: 04. Installation Of Zone Sensor
Installation Guide and Owner’s Manual Zone Sensor 04. Installation of zone sensor Installation accessories Screws ( M3.5*25 ) 3M double-sided tape x 1 CR2450 batteries x 2 (Inside product) Slide the mounting bracket down, in parallel to the zone sensor Fasten the mounting bracket to the wall using fasteners or double sided tape. -
Page 6: 06. Check If It Is Paired Correctly
If there is a issue, such as wrong sensors, wrong data, or it keeps failing to find the zone sensor, you can try to use the [forget all sensors] button on the Touch controller; and re-start the pairing process from the start. If it is still not working, please call ActronAir technical support for assistance. Installation Guide and Owner’s Manual - Zone Sensor... - Page 7 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 8 ©Copyright 2024 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifications are subject to change without notice. Installation Guide and Owner’s Manual - Zone Sensor...
