Abexo EGO User Manual

Universal multi-frequency transmitter (433.92 to 868.80 mhz) 4/6-channel
Hide thumbs Also See for EGO:

Advertisement

Table of Contents

https://is.gd/YUtY7B

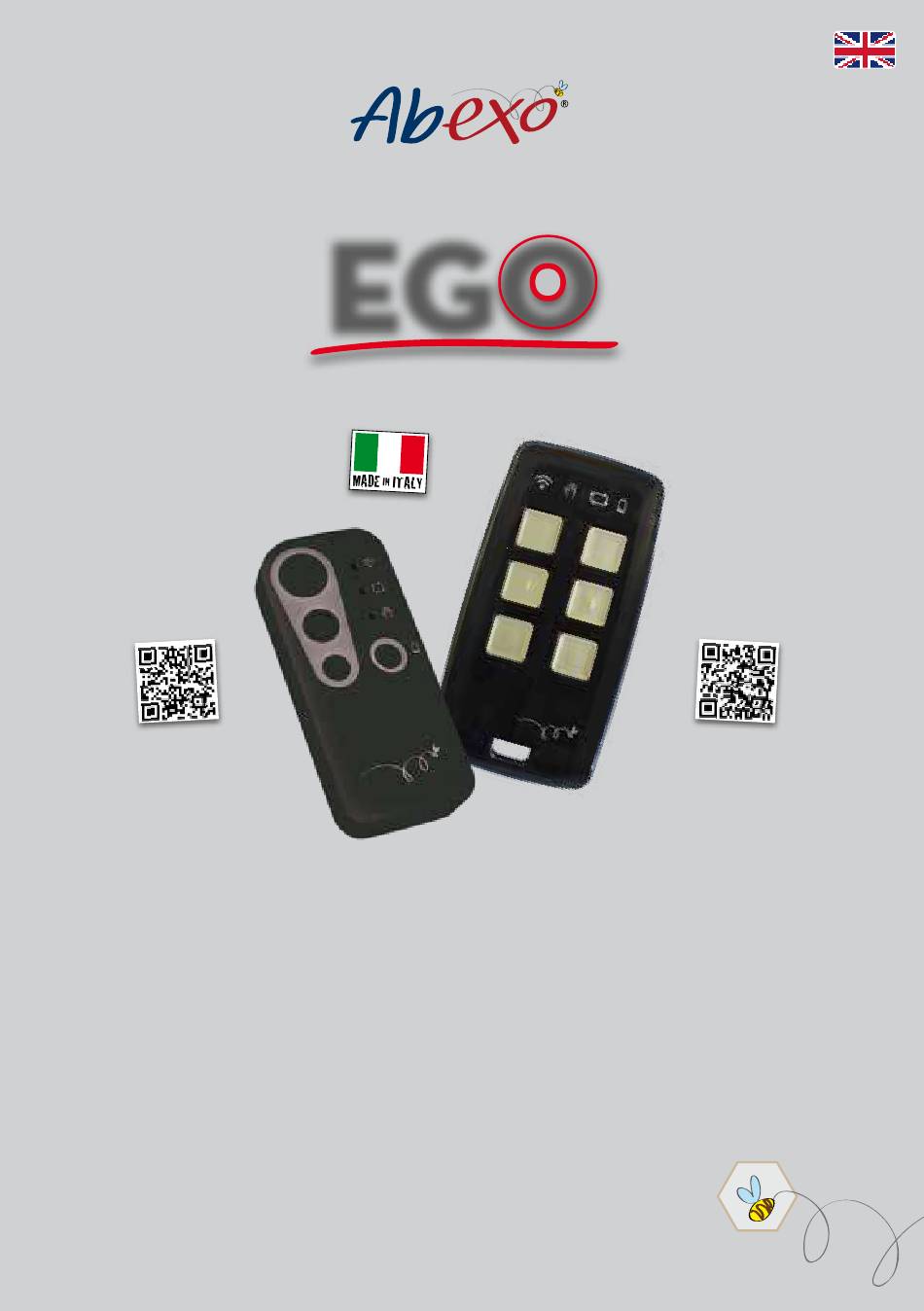

Universal multi-frequency transmitter
(433.92 to 868.80 MHz) 4-channel
rev. 4/2024
AUTOMATION ACCESSORIES
EGO
EGO PLUS
USER MANUAL
For full and up-to-date instructions
see the website www.abexo.tech
EGO KUBE
Universal multi-frequency transmitter
(433.92 to 868.80 MHz) 6-channel
https://is.gd/rrQfWK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Abexo EGO

Summary of Contents for Abexo EGO

  • Page 1 AUTOMATION ACCESSORIES https://is.gd/YUtY7B https://is.gd/rrQfWK EGO PLUS EGO KUBE Universal multi-frequency transmitter Universal multi-frequency transmitter (433.92 to 868.80 MHz) 4-channel (433.92 to 868.80 MHz) 6-channel USER MANUAL For full and up-to-date instructions see the website www.abexo.tech rev. 4/2024...
  • Page 2 Also, carry out the radio control copying operation away from radio fre- quency sources such as mobile phones, wifi modems or other emitters. BATTERY REPLACEMENT ON EGO-PLUS AND EGO-KUBE RADIO CONTROLS To replace the battery on the EGO-PLUS radio control unit, the screw at the rear must be un- screwed and the back cover must be removed from the front cover.
  • Page 3 7 - Copy a fixed serial code pag. 20 8 - Copy all keys of the original radio control pag. 21 9 - Transmission of the original code from an EGO PLUS/KUBE pag. 23 10 - Programming procedure receiver with self-learning pag. 23 11 - Receiver programming procedure pag.

  • Page 4: General Information

    433.92 MHz to 868.3 MHz present in the compatibility lists in sections 3-4-5. The copy allows to associate each EGO KUBE and EGO PLUS button with a button of the original radio control of different models and brands, to permit the management of all automations with a single radio control.
  • Page 5 EGO PLUS/KUBE at a distance of approx. 4÷20 cm. B) Programming Press and hold the button on the BFT radio control until the TRS LED on the EGO PLUS/KUBE stays on, then release it WARNING! If you press and hold the radio 4÷20 cm...
  • Page 6 * ). 4÷20 cm 4÷20 cm Press the EGO PLUS/KUBE button in which you wish to memorise the original remote control (for example button 1 as in picture C). The TRS LED will light up for a few seconds. pic. C C) Rolling Code Group A (BFT) radio transmitters receiver insertion type.
  • Page 7 MITTO. TRC 1 / 2 / 4 Has the button hidden inside the battery cover. EGO PLUS - EGO KUBE User Manual - rev. 4/2024...
  • Page 8 2÷10 cm FAAC B) Programming Press and hold the button on the FAAC/GENIUS radio control until the TRS LED on the EGO PLUS/ KUBE is constantly on, then release it. WARNING! If you press and hold the FAAC/ GENIUS button radio control, the TRS LED 2÷10 cm...
  • Page 9 FAAC Press the EGO PLUS/KUBE button in which you wish to memorise the original remote control (for example button 1 as in picture C). The TRS LED will light up for a few seconds. pic. C C) Rolling Code Radio (FAAC/GENIUS) receiver insertion type Group A.
  • Page 10 1÷20 cm. 1÷20 cm B) Programming Press and hold the V2 remote control button until the TRS LED on the EGO PLUS/KUBE is still on, then release it. WARNING! If you press and hold the V2 1÷20 cm...
  • Page 11 AUTOMATION ACCESSORIES Press the EGO PLUS/KUBE button in which you wish to memorise the original remote control but- ton (for example button 1 as in picture C). The TRS LED will light up for a few seconds. pic. C C) Rolling code radio receiver insertion type Group A (V2) These transmitters programmed with the V2 rolling code belong to the AUTO LED insertion type.
  • Page 12 953ESTD, 371 LM, 971 LM, 84330E, 94334CE, 1A5639-7, 1A5477, 1A6487, 132B2372, LIFTCHAMBERLAIN, 94330EML/9333EML/94335EML, 84330EML/84333EML/84335EML, 8747EML LIFT MASTER, MOTOR LIFT MUTANCODE, T, T-8, E-CODE N CLEMSA MASTERCODE MV Attention: fixed code MASTERCODE MV. Attention: fixed code DASPI ZERO RC EGO PLUS - EGO KUBE User Manual - rev. 4/2024...
  • Page 13 TX, T.COM R4-2, T.COM R8-2, TWIN, TX (NEO), ALFA, TORRES PECCININ TX MENBRANA PRASTEL MTE, MPSTLE, MPSTP2E, TCE, BFOR, TRQ-P, SLIM-E TWIN, VARIO, VARIO MARS, VARIO OCEAN, NEO PUJOL Attention: possible non-duplicable personalisation EGO PLUS - EGO KUBE User Manual - rev. 4/2024...
  • Page 14 TOR LIFT TORMIT4 ECO-R, TRQ P A) Entry into programming Press and hold the EGO PLUS/KUBE button 1 and press the button 2 four times. The TRS LED starts flashing slowly (one flash every 2 seconds approx.). button 1 button 2...
  • Page 15 AUTOMATION ACCESSORIES 1÷4 cm original B) Programming Press and hold the button on the original remote control until the TRS LED on the EGO PLUS/KUBE starts flashing rapidly, then release it. WARNING! If you press and hold the original 1÷4 cm...
  • Page 16 AUTOMATION ACCESSORIES TRS LED: the EGO PLUS/KUBE button has memorised the radio control code you have just cop- ied and it will already be functional with the original receiver. Press the EGO PLUS/KUBE but- ton several times to check that it is working properly on the original receiver.
  • Page 17 FIXED CODE RADIO CONTROLS https://is.gd/wTWa7Q A) Entry into programming Press and hold the EGO PLUS/KUBE button 1 and press the button 2 four times. The TRS LED starts flashing slowly (one flash every 2 seconds approx.). button 1 button 2 button 1 1÷4 cm...
  • Page 18 (to be carried out through several control button activations). A) Entry into programming Press and hold the EGO PLUS/KUBE button 2 and press the button 1 four times. The TRS LED starts flashing slowly (one flash every 2 seconds approx.).
  • Page 19 AUTOMATION ACCESSORIES Release the buttons and place the original remote control in front of the EGO PLUS/KUBE at a di- stance of approx. 1÷4 cm. 1÷4 cm B) Programming Press and hold the button on the original remote control until the TRS LED on the EGO PLUS/KUBE starts flashing rapidly, then release it.
  • Page 20 ( transmitters recognition without rolling code part). A) Entry into programming Press and hold the EGO PLUS/KUBE button 1 and press the button 3 four times. The TRS LED starts flashing slowly (one flash every 2 seconds approx.). button 1...
  • Page 21 KUBE at a distance of 1÷4 cm approx. B) Programming Press and hold the button on the original remote control until the TRS LED on the EGO PLUS/KUBE starts flashing rapidly, then release it. WARNING! If you press and hold the original 1÷4 cm...
  • Page 22 AUTOMATION ACCESSORIES Press the EGO PLUS/KUBE button in which you wish to memorise the original radio control button (for example button 1 as in picture C). pic. C B) Checking the receiver input type After pressing the code learning button on the EGO PLUS/KUBE transmitter, check which signal lights up for a few seconds.
  • Page 23 AUTOMATION ACCESSORIES 9 - SENDING ORIGINAL CODE FROM EGO PLUS/KUBE This procedure allows to send an original code from an EGO PLUS/KUBE that has stored a FAAC, GENIUS, BFT code. Buttons in the EGO PLUS/KUBE are assigned automatically and cannot be personalised.
  • Page 24 Otherwise, consult paragraph 12 “Errors and solutions”. 11 - RECEIVER PROGRAMMING PROCEDURE This procedure allows to memorize an EGO PLUS/KUBE in the original receivers by accessing to the receivers manually. After copying the radio control, place the EGO PLUS/KUBE approximately 30 cm away from the original receiver and activate the learning procedure, consulting the manual provided by the man- ufacturer.
  • Page 25 • the EGO PLUS/KUBE TRS Make sure that you have copied into the EGO PLUS/KUBE a but- LED lights up but is not ton of a radio control already memorized in the original receiver.

  • Page 26: General Warnings

    The guarantee is in accordance with legal provisions. The contact person for any warranty services is the dealer. The warranty only applies to the country in which the product was purchased. The battery is not included in the guarantee. EGO PLUS - EGO KUBE User Manual - rev. 4/2024...
  • Page 27 23mm 30mm (minimum 250/300 dpi) On request, it is also possible to personalise the EGO PLUS/EGO KUBE transmitters shell colour Minimum quantity 1,000pcs > Ask our customer service EGO PLUS - EGO KUBE User Manual - rev. 4/2024...
  • Page 28 AUTOMATION ACCESSORIES AB Tecno Srl Via Cicogna 95 40068 San Lazzaro di Savena (BO) Tel: +39 051 6259580 / fax: +39 051 6259600 info@abtecno.com www.abtecno.com...
