AstroAI S8 Air User Manual

Jump starter with air compressor
Hide thumbs

Advertisement

Table of Contents

S8 Air
JUMP STARTER
WITH AIR COMPRESSOR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8 Air and is the answer not in the manual?

Questions and answers

Related Manuals for AstroAI S8 Air

Summary of Contents for AstroAI S8 Air

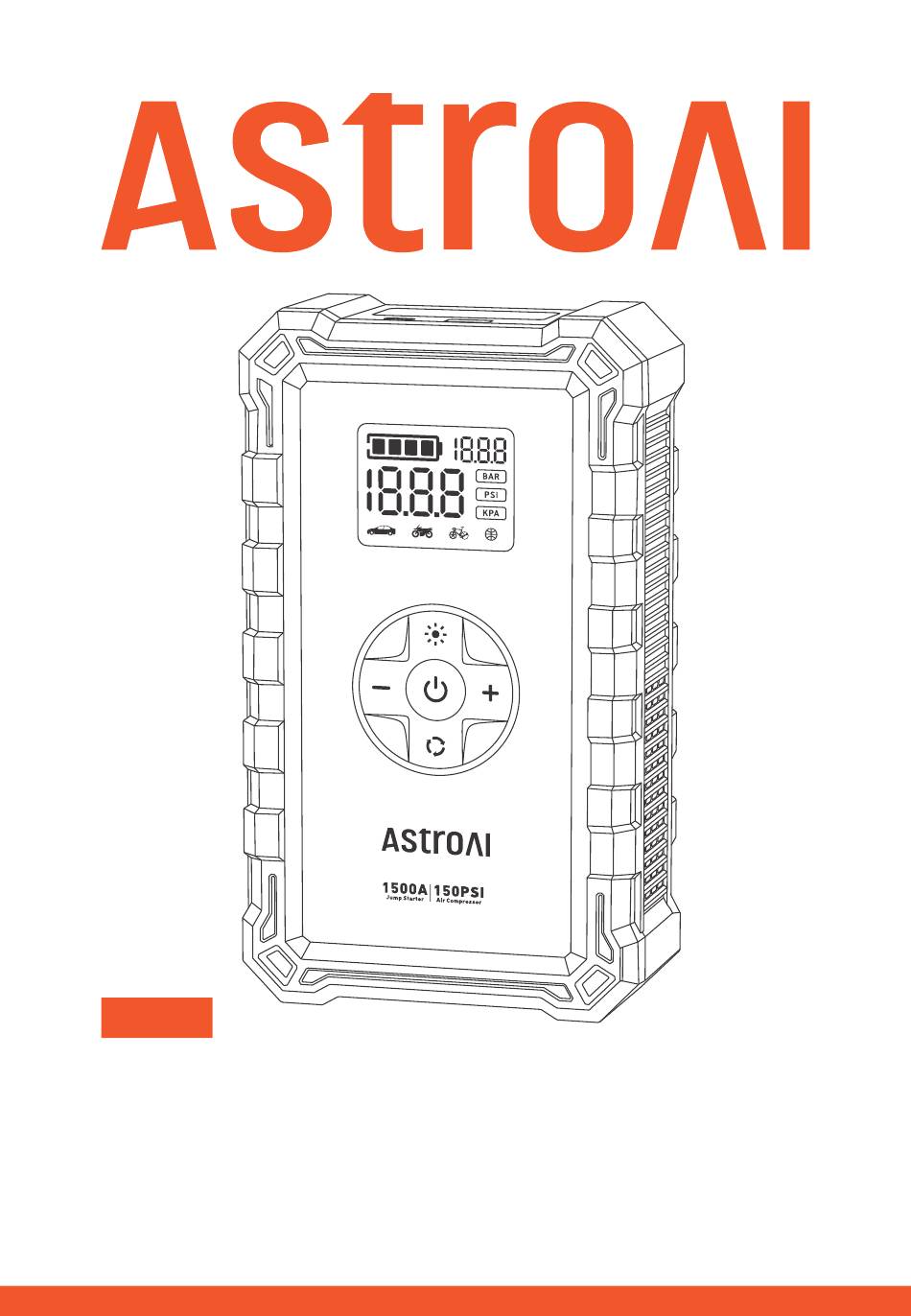

  • Page 1 S8 Air JUMP STARTER WITH AIR COMPRESSOR USER MANUAL...
  • Page 2 INTRODUCTION Thank you for purchasing the AstroAI Jump Starter with Air Compressor. This product uses the ultra-powerful discharge technology of a lithium battery to help users jumpstart car batteries that are fully depleted or in a low-temperature environment. It also functions as an air compressor, power bank and emergency flashlight;...
  • Page 3 WARNINGS Fully charge the product before use. This product contains small accessories which are a choking hazard for young children. Keep out of reach of children. Do not aim the nozzle at people or any part of the human body. Extended use is not recommended.
  • Page 4 If any abnormalities occur (e.g. overheating, smoking, or burning) while using the jump starter, please turn it o , remove the clamps, and immediately contact AstroAI customer support. Handle the product with care to avoid dropping and other severe impacts.

  • Page 5: Package Includes

    PACKAGE INCLUDES Jump Starter with Air Compressor × 1 Smart Battery Clamps × 1 USB-A to USB-C Charging Cable × 1 Presta to Schrader Adapter × 1 Needle Valve Adapter × 1 Air Hose × 1 Air Nozzle × 1 Storage Bag ×...
  • Page 6 DIAGRAM Inflation Mode Display Light Button Battery Level “-” Button Real-Time Pressure Value Mode Button Preset Pressure Value Inflation Hose Units Air Nozzle LED Flashlight Power Button 2.4A USB-A Output Port “+” Button 2A USB-C Input Port Needle Valve Adapter 12V Jump Start Port Presta to Schrader Adapter - 06 -...
  • Page 7 Storage Bag USB-A to USB-C Charging Cable Smart Battery Clamps - 07 -...
  • Page 8 PREPARATION How to Charge To charge the jump starter, connect the included charging cable's USB-C end into the device's charging port and the cable's USB-A end to the power source. The power source can be any USB source like 5V wall chargers, car chargers, etc. (Note: charging block not included) Indicator Battery Level...
  • Page 9 INSTRUCTIONS How to Jumpstart Note: For best jumping performance, ensure the jump starter’s battery level exceeds 75% and turn o any electrical devices inside your vehicle before starting your car. 1. Fully insert the smart battery clamps into the jump starter’s 12V port. 2.
  • Page 10 No Light Indication: The vehicle battery may be damaged. BOOST Operation: Retry steps 2 and 3 when the battery correct reverse clamps are correctly attached, or contact AstroAI for further assistance. - 10 -...
  • Page 11 How to Inflate Tires 1. Connection: Choose an appropriate nozzle based on the inflatable and tightly connect to it. 2. Setting: Press and hold the Power Button to turn on the unit. Then, choose the appropriate inflation mode and adjust the preset pressure value according to the required air pressure of the inflatable.
  • Page 12 Press and hold the Mode Button to switch units between Bar, PSI, and kPa. Press the “+” and “-” Buttons to adjust the preset value by 0.5PSI (0.01Bar/1kPa) increments. Press and hold the “+” and “-” Buttons to rapidly adjust the preset value.
  • Page 13 Power Bank Function 1. Insert the charging cable into the jump starter’s USB output port. 2. Connect the other end of the USB charging cable to the device being charged. 3. Press and hold the Power Button for 2 seconds to turn on the device. The jump starter will automatically detect the devices’...

  • Page 14: Maintenance

    Please fully charge the jump starter if it will not be in use for an extended amount of time. Charge it every three months to extend its service life. SPECIFICATIONS Model S8 Air Capacity 37Wh Jumpstart Current 500A (0.8S); 300A (2.6S)

  • Page 15: Troubleshooting (Faq)

    The vehicle cannot start because of issues unrelated to battery power levels. Please use the appropriate equipment to check the battery or error code of the vehicle. Contact AstroAI for after-sales support. Failure to Power On Insu cient power level or the jump starter is still charging.
  • Page 16 If the jump starter overheats, it will turn on its overheating protection feature and shut down for a few minutes. Once the unit cools down, try again. Contact AstroAI customer support. Slow Inflation Insu cient battery level. Check if the air hose leaks.

  • Page 17: Warranty Period

    WARRANTY PERIOD 2-Year Limited Warranty from AstroAI Each AstroAI Jump Starter with Air Compressor will be free from defects in material and workmanship. This warranty does not cover damage from neglect, misuse, contamination, alteration, accident, or abnormal conditions of operation or handling.
  • Page 18 Web: www.astroai.com E-Mail: support@astroai.com V1.1...
