Summary of Contents for AstroAI MF159

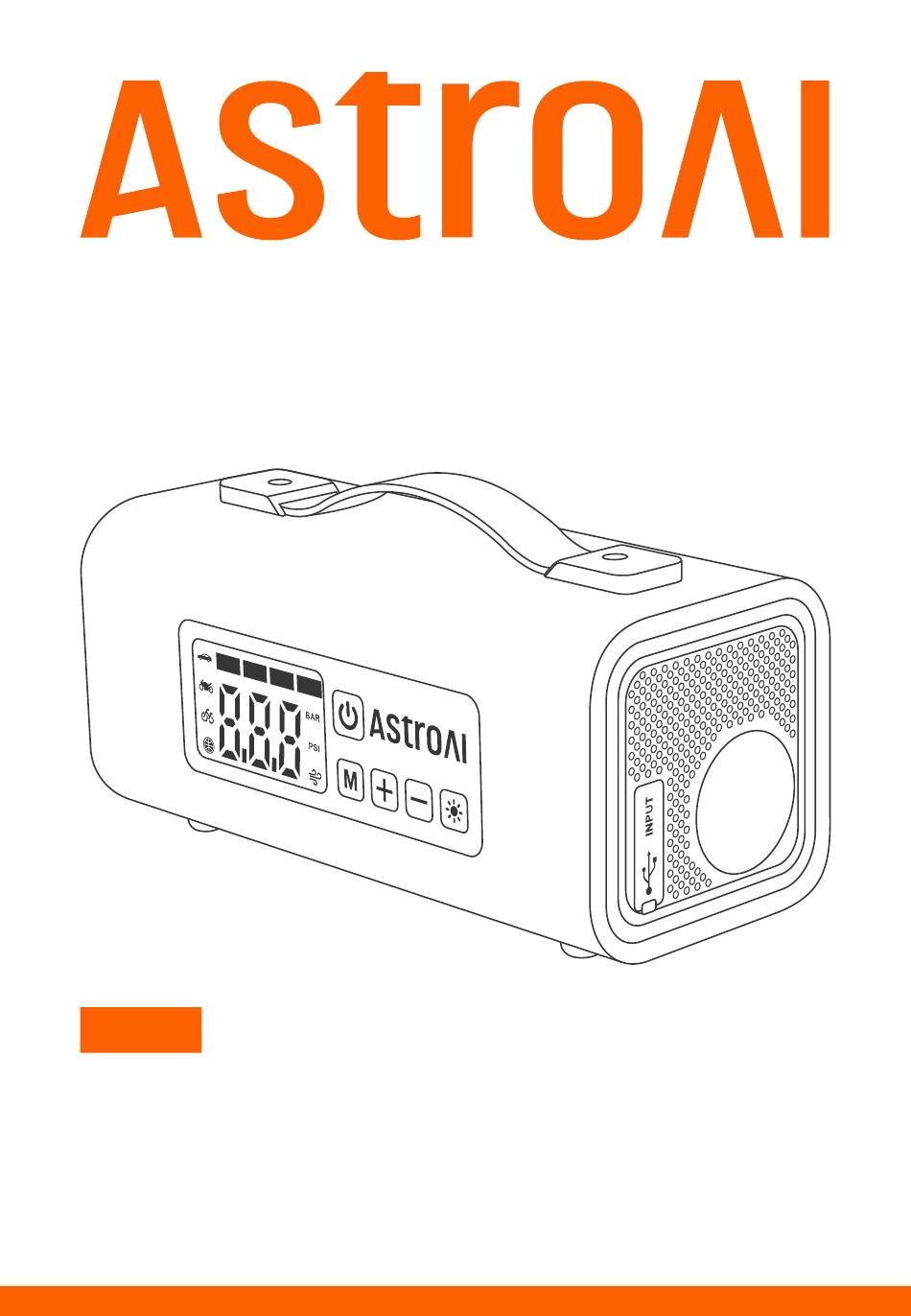

- Page 1 MF159 JUMP STARTER & AIR COMPRESSOR USER MANUAL...
-
Page 2: Table Of Contents
CATALOG INTRODUCTION WARNING DIAGRAM PREPARATION INSTRUCTIONS MAINTENANCE CODE ANALYSIS SPECIFICATIONS TROUBLESHOOTING/FAQ PACKAGE INCLUDES RECYCLING WARRANTY PERIOD... -
Page 3: Introduction
It also functions as a power bank and emergency flashlight; it is a must-have tool for the outdoors. We hope this product protects you on your journeys. AstroAI strives to build tools that help you enjoy all of life’s adventures. -
Page 4: Warning
WARNING Contains small accessories which are a choking hazard for young children. Keep out of reach of children. The inflation hose will heat up during use, be mindful of the heat. Do not overinflate the tire, high pressure may cause damage. Allow a 60-second interval between continuous operations to avoid overheating the product. -
Page 5: Diagram
Extended use is not recommended! Please cool down the product for at least 10 minutes after 10 minutes of continuous use. Do not store the product at temperatures above 70 °C/158 °F. Only charge this product at room temperatures between 32-113 ° F (0-45 °C). - Page 6 Deflate Inflate Type-C Input Port Tire Inflation Port USB Output Port Air Mattress Mode-lnflation Port LED Light/SOS Smart Battery Clamps Battery Clamp Port Charger Air Mattress Mode-Deflation Port USB Charging Cable - 04 -...
- Page 7 Presta to Schrader Adapter Storage Box Needle Valve Adapter 1-4 Air Mattress Nozzle Air Mattress Hose Air Hose 2× Air Nozzles - 05 -...
-
Page 8: Preparation
PREPARATION How to charge the product 1. Connect the USB-C end of the USB charging cable to the charger. 2. Connect the USB-C end of the USB charging cable to the Type-C port of the product. Indicator Battery Level 1 Bar Under 25% 2 Bars Between 25% and 50%... - Page 9 Ensure the pressure value is correct To avoid overinflation, please confirm the maximum inflation pressure of the objects being inflated. Overinflating objects may cause damage and personal injuries. Tires The recommended tire pressure is usually noted on the tire’s sidewall. Tire pressure recommendations/maximums can also be found on the inside of the driver’s door.
-
Page 10: Instructions
Cars Type Recommended Pressure Range Car tires 32-41 PSI/2.2-2.8 Bar Balls Type Recommended Pressure Range Basketball 7-9 PSI/0.5-0.6 Bar Soccer ball 8-16 PSI/0.6-1.1 Bar Volleyball 4-5 PSI/0.3 Bar Football 12-14 PSI/0.8-1.0 Bar Note: Above pressure values are for reference only. Read the object’s user manual or instructions for information about the pressure. - Page 11 2. Connect the smart battery clamps to the vehicle’s battery. Illuminated red, buzzer long beeping Cause: Short circuit Solution: Check the circuit or try step 1 Illuminated red, buzzer emitting a short beep sound Cause: Reversed polarities Solution: Reverse the clamps Illuminated green Black 3.
- Page 12 4. Remove the smart battery clamps from the battery. Black Note: A red light illuminating on the smart battery clamps indicates the jump starter has a low battery level. Connect the red clamp to the battery’ s positive terminal (+) and the black clamp to the battery’s negative terminal (-).
- Page 13 2. Choose the appropriate nozzle for your inflatable. Note: Firmly flip the small lever to ensure a secure connection. 3. Use the “Mode” Button to select inflation mode. Use the “+” & “-” buttons to adjust the pressure value. 4. Connect the other end of the air hose to the tire valve. - 11 -...
- Page 14 5. Press the Power Button to start inflating. 5. Disconnect the hose from the tire. Deflate Inflate Tip: The maximum pressure of the custom mode is 150 PSI, while the other four modes’ values are fixed to avoid damages or safety hazards. 58 PSI/4 Bar Bicycle 150 PSI/10.3 Bar...
- Page 15 How to inflate/deflate air mattresses 1. Turn on the product. Connect the air mattress hose to the air mattress mode inflation/deflation port. Deflate Deflate Inflate Inflate 2. Choose a nozzle based on the items being inflated or deflated, horizon- tally align the hose and accessory nozzle, twist them clockwise along the threads.
- Page 16 Press the “+” & “-” buttons to adjust inflation/deflation time. The default time is 300 seconds. 4. Connect the air mattress hose to your air mattress (es). 5. Press the Power Button to start inflating/deflating. - 14 -...
- Page 17 6. Disconnect the hose from the air mattress. Tip 1: Connect the air hose to the air mattress mode inflation port for inflation or the air mattress mode deflation port for deflation. Tip 2: The default inflation time is 300s, press once to adjust the time by 30 seconds.
-
Page 18: Maintenance
MAINTENANCE To maximize the battery’ s performance and service life, please charge the product when its battery level is lower than 75%. Please fully charge the product if it is going to be idle for a long time. Charge it every three months to extend its service life. CODE ANALYSIS Error: Battery overheating Solution: Let it cool down... -
Page 19: Specifications
SPECIFICATIONS Model MF159 Capacity 54760 mWh (54.76 Wh) Jumpstart Current 800 A (1S) 500 A (3S) Peak Current 2500 A Tire Inflator Pressure 3-150 PSI, 0.2-10.3 Bar Tire Inflator Accuracy ±1 PSI Inflation Speed 220 L/Min USB Output USB-A 5 V 2 A... - Page 20 Q: If you fail to jumpstart the vehicle, please check the possible causes in order. Insu cient power level; you may need to charge the jump starter more. Please keep the battery level higher than 60% to ensure a successful jumpstart. Bad connection caused by rust or dirt on battery terminals;...
-
Page 21: Package Includes
WARRANTY PERIOD 2-Year Limited Warranty from AstroAI Each AstroAI Jump Starter with Air Compressor will be free from defects in material and craftsmanship. This warranty does not cover damage from neglect, misuse, contami- nation, alteration, accident, or abnormal conditions of operation or handling. - Page 22 Web: www.astroai.com E-Mail: support@astroai.com V1.1...
