^ AlPHONE
832870
TC-MB-1-0986

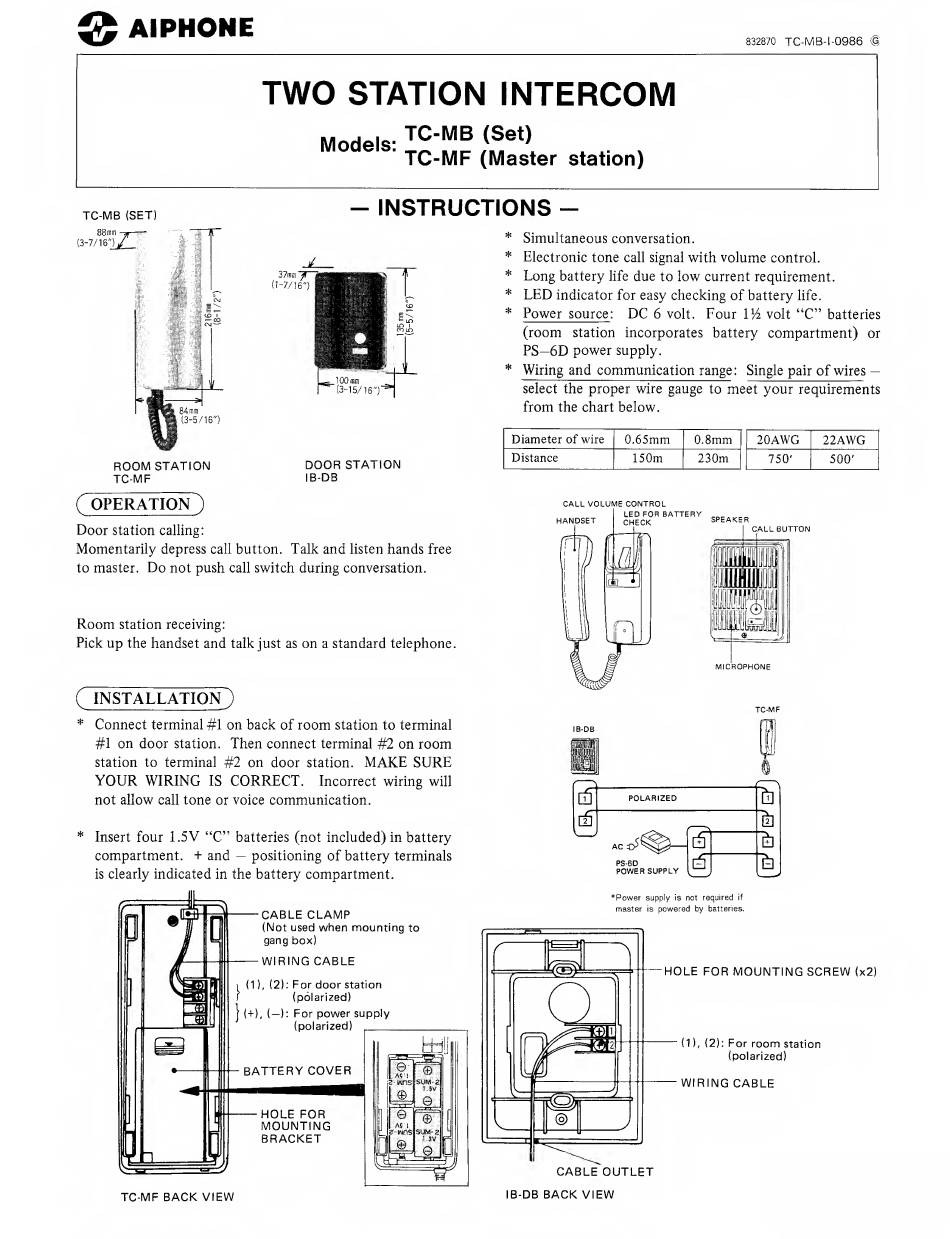

TWO STATION INTERCOM
Models: (Set)
TC-MF (Master station)
TC-MB (SET)
- INSTRUCTIONS -
* Simultaneous conversation.
* Electronic tone call signal with volume control.
* Long battery life due to low current requirement.
* LED indicator for easy checking of battery life.
* Power source: DC 6 volt. Four iy
2
volt "C" batteries
(room station incorporates battery compartment) or
PS—6D power supply.
* Wiring and communication range: Single pair of wires —
select the proper wire gauge to meet your requirements
from the chart below.
ROOM STATION
TC-MF
DOOR STATION
IB-DB
Diameter of wire 0.65mm 0.8mm
20AWG 22AWG
Distance
150m ' 230m
750' 1 500'
( OPERATION')
Door station calling:
Momentarily depress call button. Talk and listen hands free
to master. Do not push call switch during conversation.
Room station receiving:
Pick up the handset and talk just as on a standard telephone.
( installation)
* Connect terminal #1 on back of room station to terminal
#1 on door station. Then connect terminal #2 on room
station to terminal #2 on door station. MAKE SURE
YOUR WIRING IS CORRECT. Incorrect wiring will
not allow call tone or voice communication.
* Insert four 1.5V "C" batteries (not included) in battery
compartment. + and - positioning of battery terminals
is clearly indicated in the battery compartment.
TC-MF
IB-DB
POLARIZED
AC ©5^-
PS-6D
POWER SUPPLY
1
]
1
]
♦Power supply is not required if
master is powered by batteries,
TC-MF BACK VIEW
IB-DB BACK VIEW
