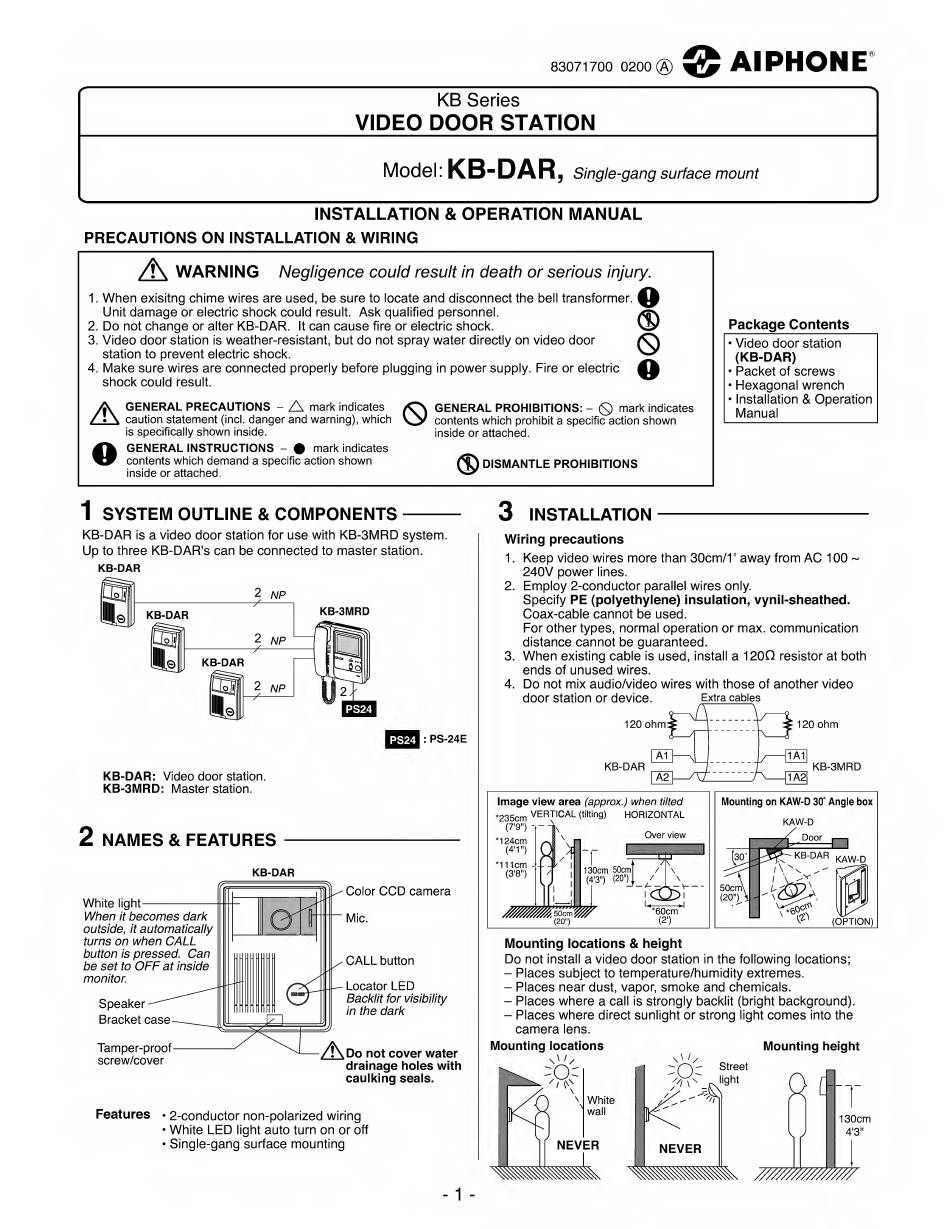

Aiphone KB Series Installation & Operation Manual

83071700 0200i
© AlPHONE*

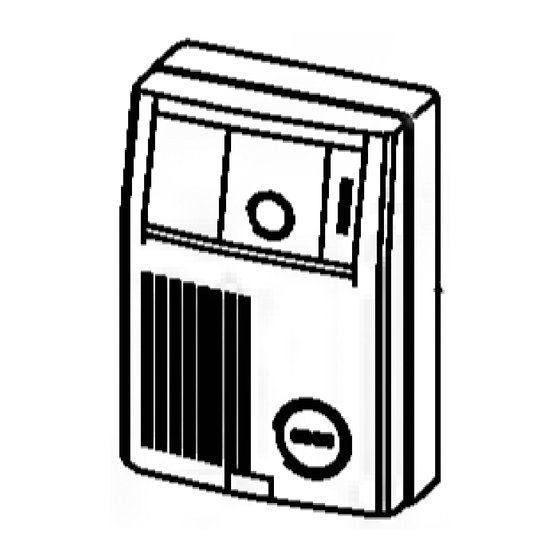

KB Series
VIDEO DOOR STATION
Model:
KB-DAR,
Single-gang surface mount
INSTALLATION & OPERATION MANUAL
PRECAUTIONS ON INSTALLATION & WIRING
WARNING Negligence could result in death or serious injury.
1. When exisitng chime wires are used, be sure to locate and disconnect the bell transformer.
Unit damage or electric shock could result. Ask qualified personnel.
2. Do not change or alter KB-DAR. It can cause fire or electric shock. Vjy
3. Video door station is weather-resistant, but do not spray water directly on video door
station to prevent electric shock.
4. Make sure wires are connected properly before plugging in power supply. Fire or electric
shock could result.
^
GENERAL PRECAUTIONS - A mark indicates
caution statement (incl. danger and warning), which
is specifically shown inside.
GENERAL INSTRUCTIONS - # mark indicates
contents which demand a specific action shown
inside or attached.
GENERAL PROHIBITIONS: - 0 mark indicates
contents which prohibit a specific action shown
inside or attached.
(T) DISMANTLE PROHIBITIONS
Package Contents
• Video door station
(KB-DAR)
• Packet of screws
• Hexagonal wrench
• Installation & Operation
Manual
1 SYSTEM OUTLINE & COMPONENTS-
KB-DAR is a video door station for use with KB-3MRD system.
Up to three KB-DAR's can be connected to master station.
KB-DAR
3 INSTALLATION
1
2
_ NP
J| KB-DAR
4
iQq|1
2
_
/
NP
jll^J
KB-DAR
v
8§r
2
_ NP
1U
KB-DAR:
Video door station.
KB-3MRD:
Master station.
NAMES & FEATURES
White light-
When it becomes dark
outside, it automatically
turns on when CALL
button is pressed. Can
be set to OFF at inside
monitor.
Speaker
Bracket case—_______
Tamper-proof-
screw/cover
'Color CCD camera
- CALL button
- Locator LED
Backlit for visibility
in the dark
/?\do not cover water
drainage holes with
caulking seals.
Features • 2-conductor non-polarized wiring
• White LED light auto turn on or off
• Single-gang surface mounting
Wiring precautions
1. Keep video wires more than 30cm/1' away from AC 100 ~
240V power lines.
2. Employ 2-conductor parallel wires only.
Specify PE (polyethylene) insulation, vynil-sheathed.
Coax-cable cannot be used.
For other types, normal operation or max. communication
distance cannot be guaranteed.
3. When existing cable is used, install a 1200 resistor at both
ends of unused wires.
4. Do not mix audio/video wires with those of another video
door station or device.
Extra cables
Image view area
(approx.) when tilted
*235cm
VEFmCAL
(tilting)
HORIZONTAL
(7'9") T 1\ _
130cm 50cm
I (4'3") (20"),
Mounting on KAW-D 30° Angle box
KAW-D
Door
Mounting locations & height
Do not install a video door station in the following locations;
- Places subject to temperature/humidity extremes.
- Places near dust, vapor, smoke and chemicals.
- Places where a call is strongly backlit (bright background).
- Places where direct sunlight or strong light comes into the
camera lens.
Mounting locations Mounting height
\ - A - | ml ^ " Street
I ?//\
C\
J--,-
\ White
N wall
