13013 - .188" Poppet Seat (RED) with 35-75psi: Up to 150 GPH return flow
1. Use a 9/64" allen wrench to remove the four cap screws. Then remove the cover,
spring, upper spring guide and diaphragm.
2. Insert a 5/16" allen head wrench into the return port and turn it clockwise to
remove the seat.
3. Reverse steps 2-1 with the desired seat, spring and diaphragm assembly. Use

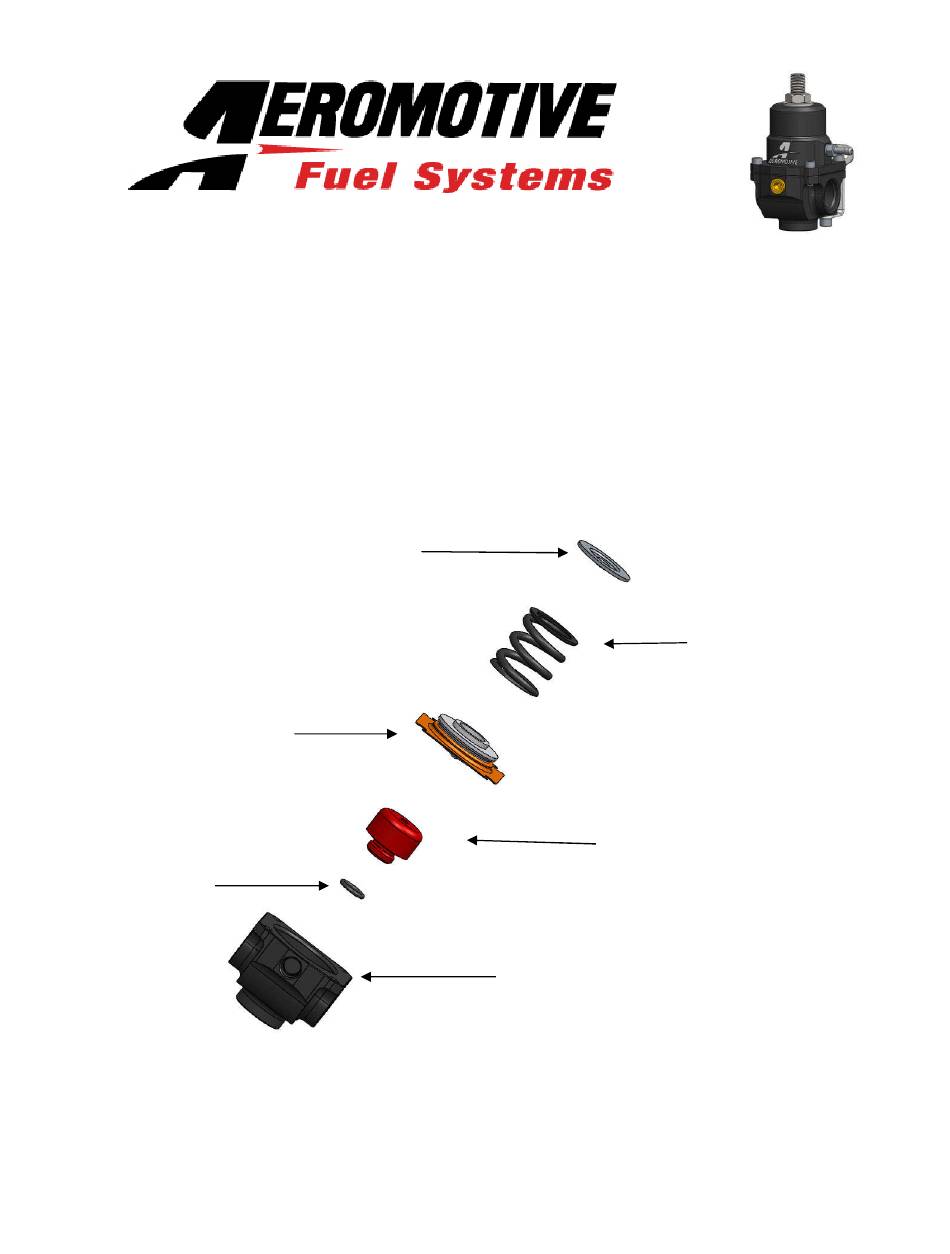

the figure below to aid in reassembly.
Upper Spring Guide
(Interchangeable)
Diaphragm/Poppet
(Kit Specific)
O-ring Seal
(Interchangeable)

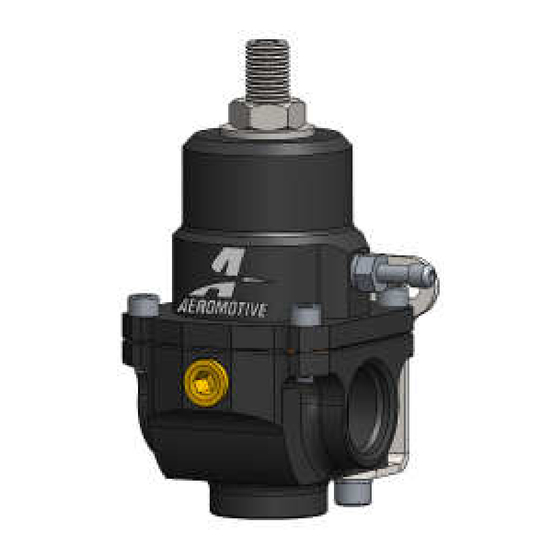

Installation Instructions
13013
AEROMOTIVE, INC.
7805 Barton Street, Lenexa, KS 66214
Phone: 913-647-7300 Fax: 913-647-7207
Poppet Seat
Return
Restriction
(Kit Specific)
Regulator Body
(Interchangeable)
Regulator Spring
(Kit Specific)
