This product is not legal for sale or use on emission-controlled vehicles except when used as a direct
replacement part matching OEM specification.
potential ignition sources. Extinguish all open flames, prohibit smoking and
eliminate all sources of ignition in the area of the vehicle and workspace before
proceeding with the installation. Ensure you are working in a well ventilated area
with an approved fire extinguisher nearby.
Installation of this product requires modification to a fuel tank/ the fuel
system, failure to satisfy all safety considerations will result in fire, explosion,
injury and/or loss of life to yourself and/or others. All fuel system components
MUST be located as far from heat sources as possible, like exhaust, engine block,
etc.
due to incorrect maneuvering or technical errors. A falling object can cause
injury and/or loss of life to yourself and/or others. When working under the
vehicle, always use stands, and ensure that the ground or floor is stable and
level. Never crawl under a vehicle which is only supported by a jack.
pressure has been relieved. Refer to the appropriate vehicle service manual for
the procedure and precautions for relieving the fuel system pressure
appropriate safety appeal. A drilling operation will cause flying metal chips. Flying
metal chips can cause eye injury.
Installation of this product requires detailed knowledge of automotive systems
and repair procedures. We recommend that this installation be carried out by a
qualified automotive technician. Careless installation of this product can result in
damage to the product, injury or loss of life to yourself and/or others.
Always be aware of flammable situations. Drilling and grinding can be
Mechanical and hydraulic lifting devices can tip over or lower accidentally
The fuel system is under pressure. Do not open the fuel system until the
When installing this product always wear safety glasses and other
AEROMOTIVE
Part # 13137
INSTALLATION INSTRUCTIONS
WARNING!
WARNING!
WARNING!
WARNING!
CAUTION!
CAUTION:
.
Advertisement
Table of Contents
Related Manuals for Aeromotive 13137
Summary of Contents for Aeromotive 13137
- Page 1 AEROMOTIVE Part # 13137 INSTALLATION INSTRUCTIONS This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specification. WARNING! Always be aware of flammable situations. Drilling and grinding can be potential ignition sources.

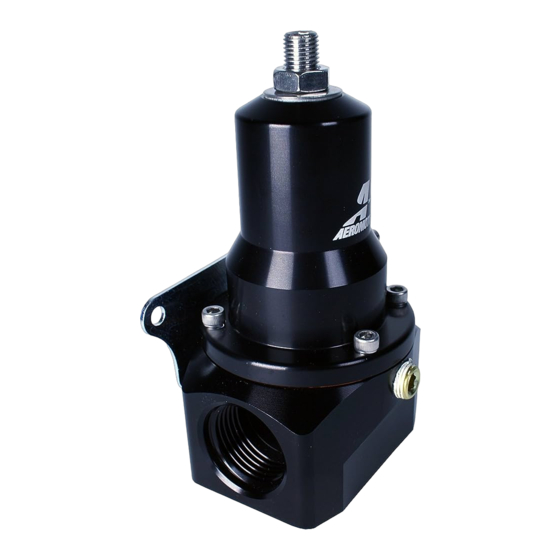

- Page 2 The enclosed Aeromotive regulator is designed to be used with high flow, high pressure, mechanical fuel pumps similar to Aeromotive P/N 11105 or larger. It is also suitable for high flow/high pressure fuel systems utilizing dual Eliminator (p/n 11104) or dual Pro-Series (p/n 11102) fuel pumps. Bypass restriction measures ½” or 0.500”...
- Page 3 2x ORB-12 7. Attach the fuel return line to the ORB-12 bypass port located at the bottom of the regulator using a ORB-12 to AN-12 port fitting (Aeromotive P/N 15612 or equivalent) and o-ring. Vacuum/Boost Line Port. Adapter Fittings for AN-04 or 5/32”...
- Page 4 13. With the fuel pressure gauge registering fuel system pressure, check for fuel leaks from and around the Aeromotive regulator and all fuel lines and connections near the regulator! If any fuel leaks are found, turn the ignition key to the OFF position, remove any spilled fuel and repair the leak before proceeding! 14.
- Page 5 15. Once the desired fuel pressure is achieved, tighten the jam-nut on the adjusting stud and attach the vacuum/boost line if the vehicle has one. The vacuum/boost port may be left open to atmosphere by using a breather, (part #15662). Blocking the vacuum port will yield poor regulator performance. This regulator includes vacuum/boost fittings for both AN-04 and 5/32”...
- Page 6 Sales & Returns • Aeromotive Inc. 11414 W 79th Street. Lenexa, KS 66214 General Inquiries and Tech Line: (913) 647-7300 General Email: info@aeromotiveinc.com Tech Email: tech@aeromotiveinc.com The Aeromotive Tech Lines are open Monday through Friday from 9:30AM to 5:00PM Central Standard Time.
- Page 7 AEROMOTIVE, INC. LIMITED WARRANTY This Aeromotive Product, with proof of purchase dated on or after January 1, 2003, is warranted to be free from defects in materials and workmanship for a period of one year from the original date of purchase.
