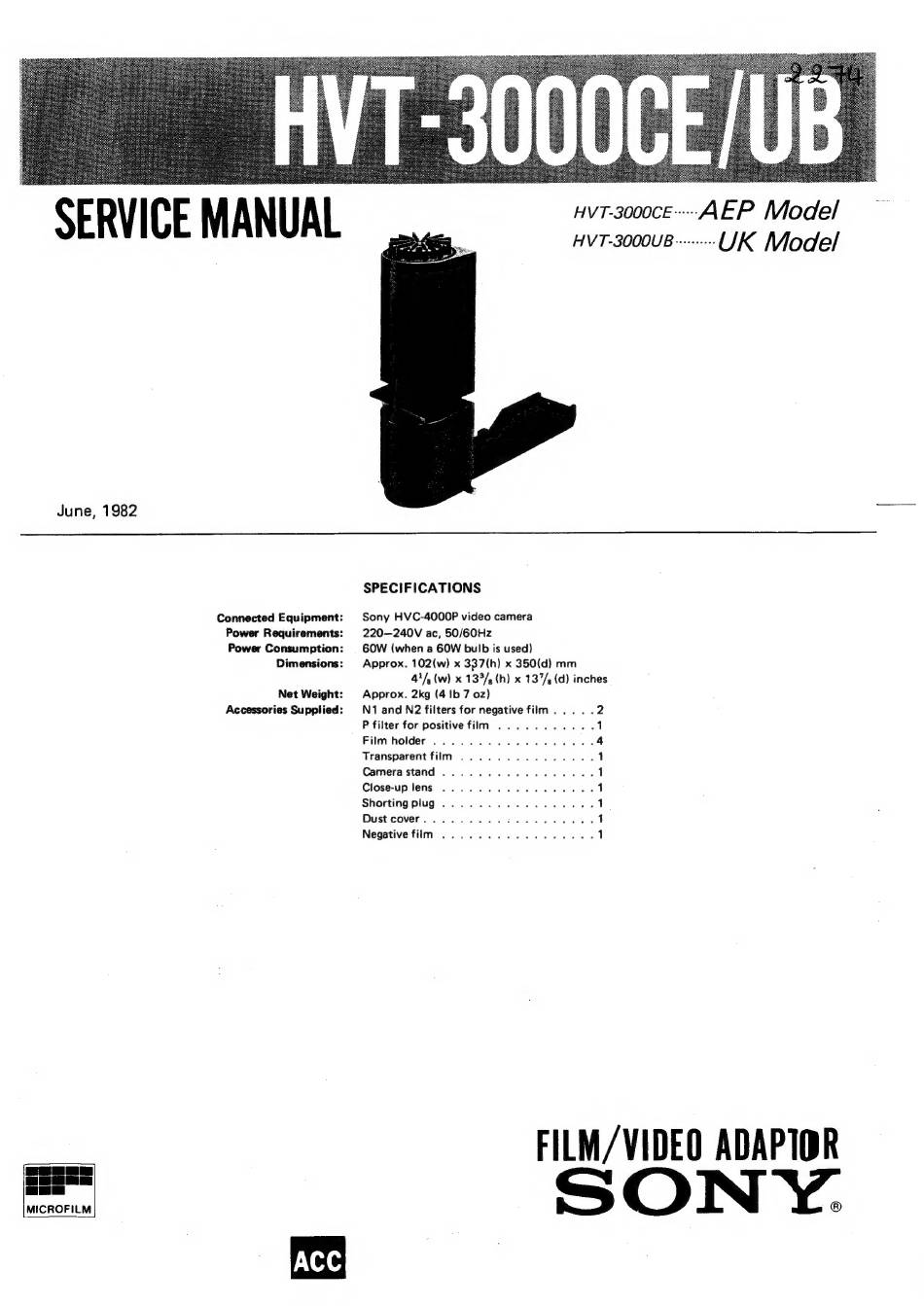

Sony HVT-3000CE Service Manual

SERVICE MANUAL
June, 1982
Connected Equipment:
Power Requirements:
Power Consumption:
Dimensions:
Net Weight:
Accessories Supplied:
MICROFILM
HvT-3000cE-- AEP) Model
HVT-3000UB v1--0--+- UK Model
SPECIFICATIONS
Sony HVC-4000P video camera
220—240V ac, 50/60Hz
6OW (when a 60W bulb is used)
Approx. 102(w) x 337(h) x 350(d) mm
41/,(w) x 133/.(h) x 137/s (d) inches
Approx. 2kg (4 |b 7 oz)
N1 and N2 filters for negative film..... 2
P filter for positive film ........... 1
Film holder... ...........000- 4
Transparentfilm ............00. 1
Camera stand ............00005 1
Close-up lens .............0425 1
Shortingplug ..............00. 1
Dust cover.........2..2.000005 1
Negative film ..............2-. 1
FILM/VIDEO ADAPTOR
SONY.
