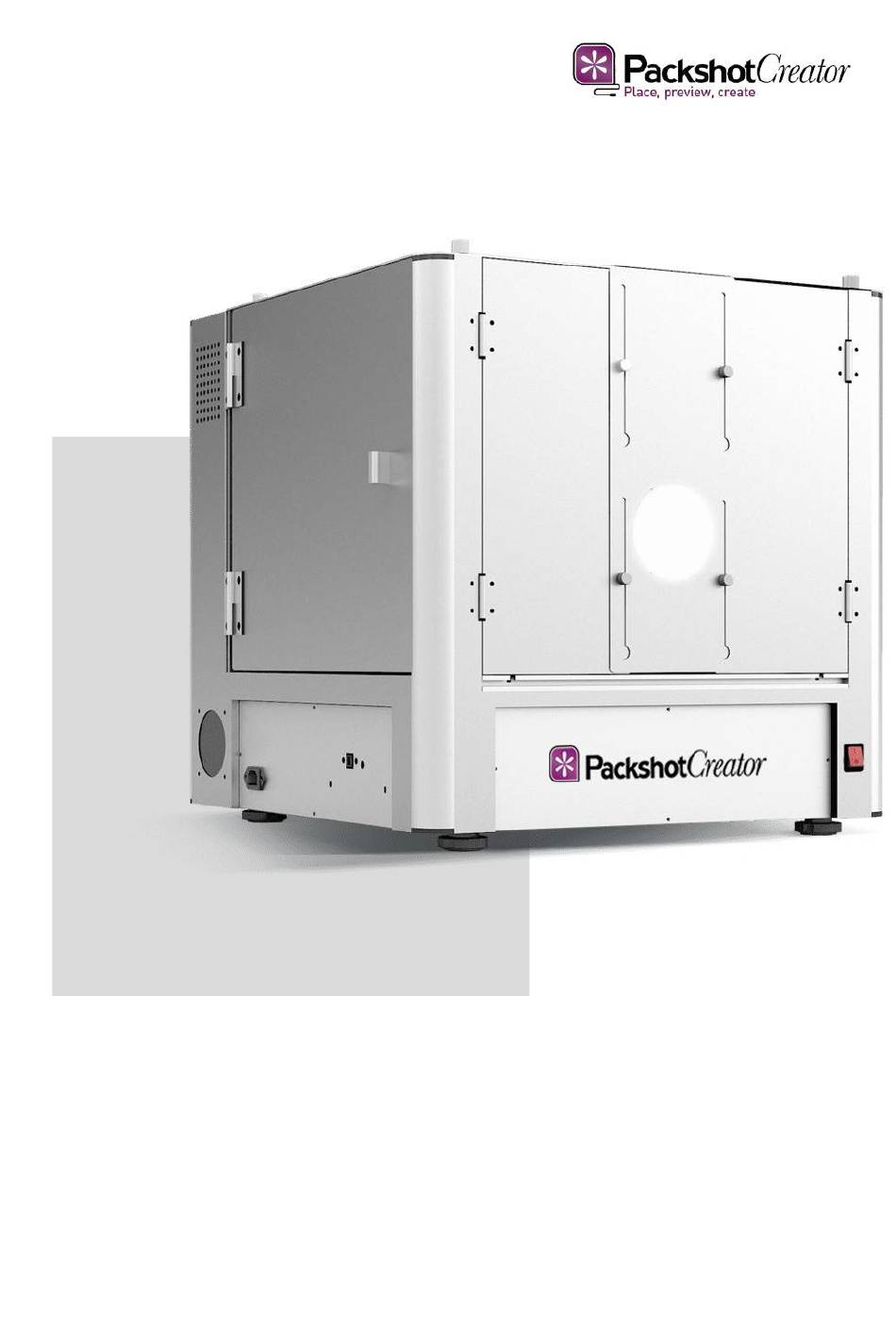

- Page 1 PackshotCreator Mini Mark II QuickStart I N S T A L L A T I O N G U I D E...
- Page 2 1 power cable 1 USB cable © Sysnext. All rights reserved. This material is not to be interpreted as a guarantee of earnings and may not be copied, reproducved, modified, published, uploaded, posted or distributed in any way, without PackshotCreator’s prior consent.
-
Page 3: Specifications
PackshotCreator Mini Mark II SPECIFICATIONS Dimension (L x W x H): 23.6” x 26.3” x 23.3” Maximum Target Size Top Shots: 13.8” x 14.6” Side Shots: 13.8” x 14.6” x 13.4” Total Weight: 70.5 lbs Maximum Object Weight: 45 lbs... -
Page 4: Hardware Installation
PackshotCreator Mini Mark II HARDWARE INSTALLATION ACRYLIC PANEL INSTALLATION: Slide in the panels from the front. Open the front doors. Three acrylic panels came with the When inserting be sure they system - two solid and one with Note: go through the holding bracket at an opening. -
Page 5: Lamp Replacement
PackshotCreator Mini Mark II HARDWARE INSTALLATION CABLE CONNECTION 2/2: Turn the system power switch to To access the power supply, unplug Open the bottom white panel. the “ON” position. the studio and unscrew the bottom white panel. PackshotCreator Mini Mark II... - Page 6 PackshotCreator Mini Mark II LAMP REPLACEMENT BOTTOM AND BACK LAMPS 2/3: Unscrew the holding bar. Remove the holding bar. Pull the translucent background out from the top. Unscrew the acrylic plate inside the Pull the bottom transparent glass Unscrew and remove the front machine.
- Page 7 PackshotCreator Mini Mark II LAMP REPLACEMENT BOTTOM AND BACK LAMPS 3/3: Pull the acrylic plate from the front. Disconnect the two wires by Use a Phillips screwdriver to pressing the connector node while remove the lamp. The red Note: pulling the wire out.
