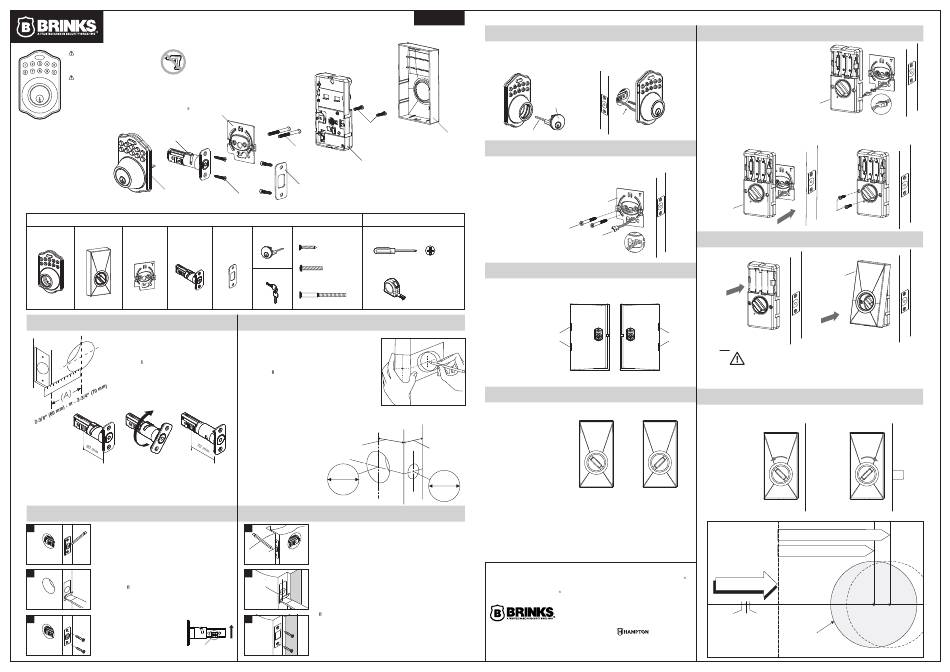

HAMPTON BAY BRINKS 2686-119 Installation Instructions

INSTALLATION INSTRUCTIONS FOR
DIGITAL DEADBOLT LOCK
WARNING
Do not use an electric screwdriver during installation.
WARNING
This Manufacturer advises that no lock can provide complete security by itself.
This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property.
No lock can substitute for caution, awareness of your environment, and common sense.
Builder's hardware is available in multiple performance grades to suit the application.
In order to enhance security and reduce risk, you should consult a quali ed
Mounting Plate
locksmith or other security professional.
Latch
Keypad Assembly
PACKAGE CONTENTS
Keypad Assembly Interior Assembly Mounting Plate Latch
LATCH ADJUSTMENT
BACKSET AND LATCH ADJUSTMENT
Backset is the distance from door edge to center of
hole on door face. (See Illustration) The latch can be
adjusted to t either a 2-3/8" (60 mm) or a 2-3/4 (70
mm) backset. The latch is set at a 2-3/8" backset from
the factory.
For a replacement installation, measure this distance
on your door. For a new installation, you may choose
either backset, although 2-3/8" (60 mm) is
recommended for residential doors.
180°
2-3/8" (60 mm) 2-3/4" (70 mm)
Determine if the latch needs to be adjusted to the 2-3/4" (70 mm) backset.
To adjust, rotate the latch until it stops.
Reverse the direction to return to the 2-3/8" (60 mm) backset.
2. INSTALL LATCH
a
a. Insert latch into the 1" (25.4mm) hole, mark outline of
faceplate and the screw hole locations. Remove the latch.
b
b. Drill two 1/8" (3mm) pilot holes 1" (25mm) deep, then
chisel along the outline 5/32" (4mm) deep until the
faceplate is ush with the door edge.
c
c. Insert the latch into the hole in the
edge of the door with the slotted cam
oriented at the bottom. Insert two
wood screws to secure the latch. Do
not fully tighten the screws until the
Slotted Cam
lock is completely installed.
Receiver
Screws
Mounting Plate
Screws
Receiver Assembly
Strike Plate
Wood Screws
TOOLS NEEDED (NOT INCLUDED)
Strike Plate Cylinder Wood Screws Phillips Screwdriver
Qty. 4
Receiver Screws Qty. 2
Tape Measure
Keys
Mounting Screws Qty. 2
1. PREPARE DOOR AND CHECK DIMENSIONS
For replacement installations, verify the backset and hole
sizes below and move to Step 2C.
MARK DOOR WITH TEMPLATE
a. Mark the centerline for the deadbolt about 44" (1120 mm)
from the oor, or about 5-1/2" (140 mm) above the center
of an existing knob or lever.
b. Apply the template to the door with the dotted fold line on
the door edge.
c. Select the 2-3/8" (60 mm) or 2-3/4" (70 mm) backset and
mark the center for the hole for the deadbolt on the door
face.
d. Mark the center for the latch hole on the door edge
according to the thickness of
Ba ck se t
your door.
2-3/8" (60 mm)
or
e. Drill a 2-1/8" (54 mm) hole on
2-3/4" (70 mm)
the door face from both sides to
avoid wood splitting.
f. Drill a 1" (25.4 mm) hole in the
2-1/8"
door edge for the latch.
54 mm
3. INSTALL STRIKE
a
a. Close the door and mark the centerline of the latch on the
door jamb exactly opposite the latch hole in the door
edge.
b. Measure one half of the door thickness from door stop and vertically
b
mark the centerline of the strike.
Door
Stop Drill a Ø1" (25.4 mm) hole by 1-1/8" (29 mm) deep in the door jamb at
the intersection of the horizontal and vertical lines.
Position the strike centered over the Ø1" (25.4 mm) hole and mark the
outline of the strike. Chisel 5/64" (2mm) deep until the strike plate is
ush with the door jamb.
c
c. Mark the strike plate screw holes and drill two Ø1/8" (3 mm) by
1" (25.4 mm) deep. Place the strike plate in the prepared cutout
and secure with two wood screws.
999-61507
4. INSTALL KEYPAD ASSEMBLY
Install cylinder into the deadbolt keypad assembly with tailpiece in horizontal position inserted
through hub of the latch.
Pass the IC wire under the latch to the interior side of the door.
Cylinder
Tailpiece
Battery Cover
5. INSTALL INSIDE MOUNTING PLATE
Pull the exterior IC wire through the right side of the wire access hole on the mounting plate.
Insert the two mounting screws and tighten. If the keypad assembly is lopsided, loosen the
screws to adjust its position and tighten the screws again.
NOTE: Ensure the IC wire is positioned as shown
on the right side and is not crimped when
the mounting plate is installed.
Mounting
Screws
6. IDENTIFY DOOR HANDING
Face the door from the outside.
The door is left-handed if the hinges are on the left side of the door, whereas the door is
right-handed if the hinges are on the right side of the door.
Hinge
c
f
Left-handed
7. ADJUST TURNPIECE
Rotate the turnpiece to the LEFT at 45 degrees for right-handed doors.
Rotate the turnpiece to the RIGHT at 45 degrees for left-handed doors.
1-3/8" – 1-3/4"
(35 mm – 45 mm)
1"
25.4 mm
FULL LIFETIME WARRANTY - This product is fully warranted to be free of defects in material and workmanship for the life of the
product. If a defect in material or workmanship occurs, call 800-562-5625 for instructions on how to have it replaced or repaired free of
charge. This warranty is null and void if the product was used for purposes for which it was not designed, is abused, misused, modi ed
or improperly installed, operated, maintained, and/or repaired. NOT LIABLE FOR INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you speci c rights, and you may also have other rights that vary from state to state.
999-61507
8. INSTALL RECEIVER ASSEMBLY
Remove the battery cover from the receiver assembly.
Connect the exterior and interior IC wires, making sure
that the blue sides of the connectors are aligned. Push
the excess IC wire back through the mounting plate into
the hole in the door.
IC Wire
Ensure that the deadbolt tailpiece is engaged with the turnpiece, and that no part of the IC wire is
extending beyond the side of the receiver assembly and will not be pinched during installation. Attach
the receiver assembly to the mounting plate using the two receiver screws. Test by rotating the
turnpiece to extend and retract the bolt of the latch.
Mounting
Plate
Receiver
Assembly
Exterior
9. INSTALL BATTERIES
IC Wire
Hinge
Insert 4 NEW AA 1.5V alkaline batteries using the diagram in the battery compartment and replace the
battery cover.
DO NOT MIX OLD AND NEW BATTERIES!
Install the battery cover by engaging the tab on the cover with the slot in the receiver assembly at the top,
Right-handed
and rotating until it snaps into place on the bottom.
10. TEST THE LOCKING & UNLOCKING
Finally, before proceeding to programming, test the unit by rotating the turnpiece to lock and unlock the
latch. Return to the unlocked position before beginning programming.
For right-handed door For left-handed door
TEMPLATE
Fit here on door edge
BRINKS A TRUSTED NAME IN SECURITY SINCE 1859 and all related logos
are trademarks or registered trademarks of Brink's Network, Inc,
45mm 40mm 35mm
and are used with permission.
1-3/4" 1-9/16"
Mark Ø1" (25.4 mm) hole at
50 Icon, Foothill Ranch, CA 92610-3000 USA
centre of door edge.
1-800-562-5625 • www.Hamptonproducts.com
©2021 Hampton Products International Corp.
www.brinksppr.com
999-61507 REVA 12/21
Receiver
Assembly
Receiver
Screws
Battery
Cover
Unlock Lock
FOR BACKSET 2-3/4" ( 70 mm)
FOR BACKSET 2-3/8" ( 60 mm)
1-3/8"
Ø 2-1/8" 54 mm ( )
