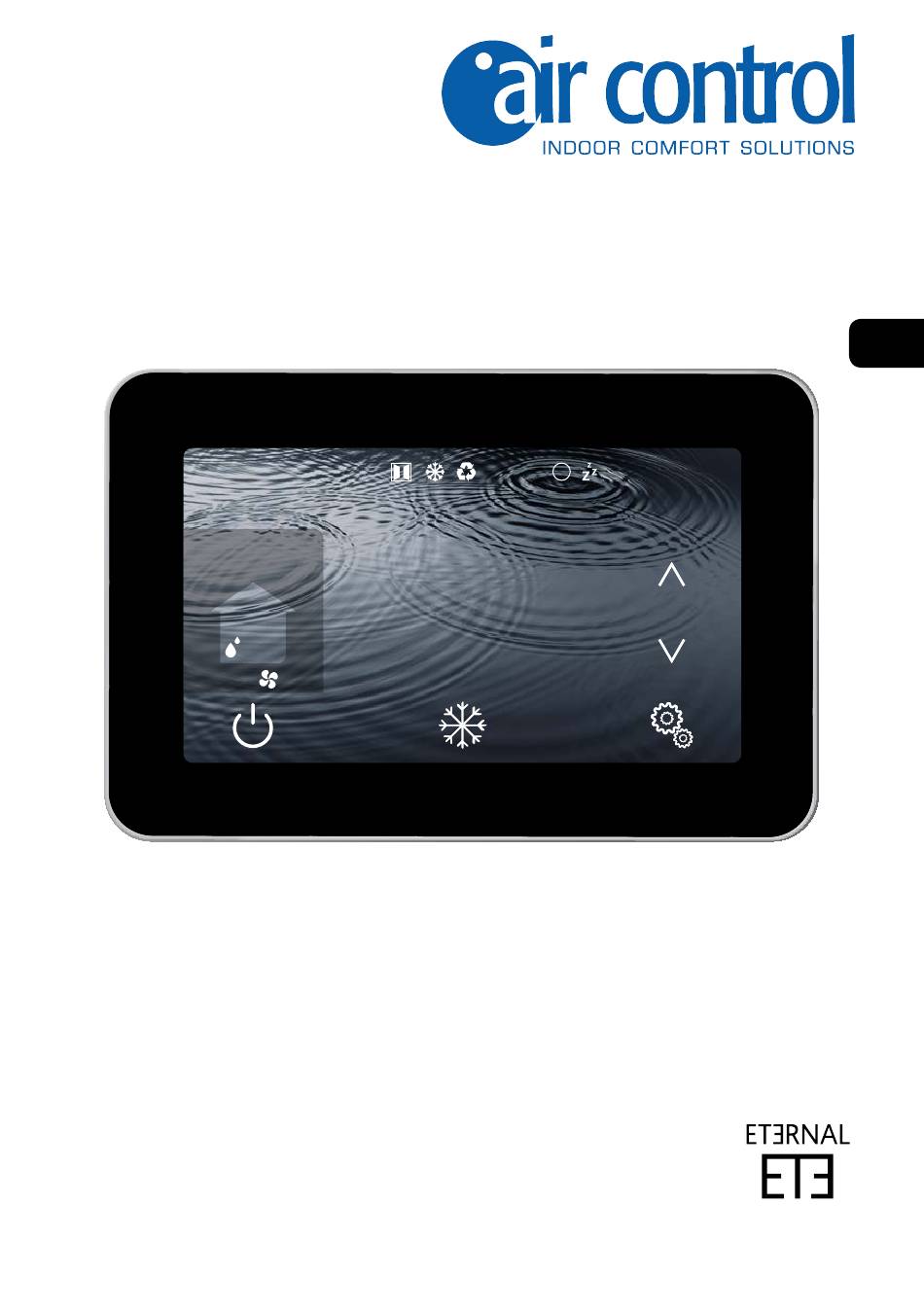

- Page 1 A4103001 123-00326 User manual KOOLNOVA ECHO MASTER'S DEGREE ROOM 3.34pm Thursday °C °C EFI3 Thermostat remote controlETERNAL KN-ETERNAL-M-FI (MASTER) www.aircontrolclima.it...
- Page 2 Customer support: Technical assistance and commercial consultancy: +39 02.45482147 For more information: www.aircontrolclima.it User manual...
- Page 3 Index Security and guarantee Chapter 1: General 1.1. Home screen 1.2. Functions Chapter 2: User Menu Enter user menu/Exit user menu 2.1. MODE 2.2. SLEEP 2.2.1. Delete stored SLEEP 2.3. PROGRAMS 2.3.1. Set a SCHEDULE 2.4. SPEED 2.5. DEGREES 2.6. BRIGHTNESS 2.7.
- Page 4 Security and guarantee ATTENTION:Read the safety instructions before proceeding with the installation and use of the system. Keep this manual for future reference. Incorrect installation or placement of system elements can cause electrocution, short circuit, fire and other damage to the system. Be sure to use only accessories manufactured and/or supplied by KOOLNOVA, designed specifically for the use of this system and leave the installation to a professional.
- Page 5 General www.aircontrolclima.it...
- Page 6 1. General 1.1. Home screen AREA SLEEP ACTIVE BUTTON ACTIVE PROGRAM ON/OFF DISPLAY HIGH HUMIDITY, RELAY ACTIVE ECO MODE ACTIVE ANTIFREEZE FUNCTION ACTIVE WINDOW CONTACT ACTIVE KOOLNOVA MASTER/SLAVE ECHO MASTER'S DEGREE FIRST NAME AREA 3.34pm °C TEMPERATURE °C ENVIRONMENT (ºC/ºF) Thursday BELOW PERCENTAGE OF...
- Page 7 1.2. Functions Graphic interface with 4.3" capacitive screen with metallic color finish. Functions: Powered by two-wire BUS without polarity. Zone On-Off. Shutdown of the complete system (MASTER). Setting the operating mode and thermal efficiency of the unit internal (MASTER) Indoor unit temperature and speed control. Reading of the ambient temperature and the % relative humidity of the area.
- Page 8 Chapter 1: General User manual...
- Page 9 User menu www.aircontrolclima.it...
- Page 10 2. User menu User menu SLAVE MASTER'S DEGREE MODE SLEEP SLEEP PROGRAMS PROGRAMS SPEED SPEED DEGREES(Celsius °C /Fahrenheit °F) DEGREES(Celsius °C /Fahrenheit °F) BRIGHTNESS BRIGHTNESS CLOCK CLOCK TONGUE(6 different languages) TONGUE(6 different languages) REMOTE ECHO Access to the user menu ECHO MASTER'S DEGREE O O ITM O RIO...
- Page 11 2.1. MODE MASTER'S DEGREE Only in the MASTER command. - Select an option. Example: - Press the button - The data is saved, the next time you access this screen it will show the last assigned mode. The main screen displays the selected mode. ICON MODE Cold air...
- Page 12 2.3. PROGRAMS The screen shows saved programs. Example: PROGRAMMM MTWTF Sa Su 20:00 22:45 24 ,0°C P1, P2, P3. Activate: Deactivate: MTWTF Sa Su 08:30 14:30 23 ,5°C MTWTF Sa Su 15:00 17:30 23 ,0°C - To activate a program, press the button. MTWTF Sa Su 16:30 20:00 23 ,5°C - To configure a program, press on the line.
- Page 13 2.4. SPEED S LPOECEIDTY SPEED:4 options available. Minimum / Average / Maximum / AUTO. - Select SPEED. - Press the button 2.5. Degrees Celsius°C/Fahrenheit °F) DE G G R R A EDEI S - Select the type of degree °C or °F (default °C). - Press the button 2.6.
-
Page 14: Days Of The Week
2.7. CLOCK LLOGIO ORCOOCK During configuration this parameter flashes. 8.34pm Clock The hours flash. TGhiuorvseddaìy - Use the and time to set the value buttons. Press the minutes, they flash. - Use the and keys to set the value of the minutes. Days of the week: To configure the days of the week, press the day of the week, this parameter flashes. - Page 15 2.9. REMOTE REMOTE Shows the system zones. ,0°C Z1 ROOM 1 ,0°C Example: Z1,Z2,Z5,Z6,Z7. Activate ,5°C Z2 ROOM 2 ,5°C Z3,Z4,Z8 Disable: ,0°C Z3 ROOM 3 ,0°C Zone name: ,0°C Z4 LIVING ROOM ,5°C - Press the name of the current zone for 2 seconds to change the name of each zone in the MASTER thermostat (local information).
- Page 16 2.11. CHANGE ZONE NAME ECHO MASTER'S DEGREE O O ITM O RIO SLEEP - Press the current zone name for 2 seconds and 3.34pm change the name on each thermostat. DGoim ovinegdoi °C °C - Press the buttonOK. EFI3 NOTE:the zone name is local information, so you also need to set it to REMOTE and APP.
- Page 17 www.aircontrolclima.it...
- Page 18 User manual...
- Page 19 www.aircontrolclima.it...
- Page 20 ITALY AIR CONTROL SRL Via Colico, 10 20158 Milan. Tel: +39 02.45482147 info@aircontrolclima.it aircontrolsrl@pec.it www.aircontrolclima.it...
