50NPB
Single-Packaged Air Conditioner System
with Puron Advance™ (R-454B) Refrigerant
Single Phase
2 to 5 Nominal Tons (Sizes 024-060)
IMPORTANT:
Effective January 1, 2015, all split system and
packaged air conditioners must be installed pursuant to applicable
regional efficiency standards issued by the Department of Energy.
NOTE:
Read the entire instruction manual before starting the
installation.
Installer: Make sure the Owner's Manual and Service Instructions are
left with the unit after installation.
50NPB 024-048

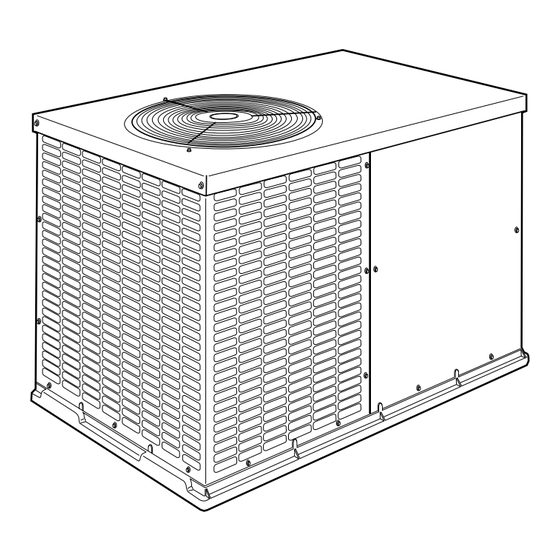

Fig. 1 - Unit 50NPB
Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1-in. W.C. with all present air inlets,
air outlets, and condensate drain port(s) sealed.

Table of Contents

Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Receiving and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Transport and Storage Considerations . . . . . . . . . . . . . . . . . . . . . . 2
Installing factory-supplied duct flanges;. . . . . . . . . . . . . . . . . . . 4
Leak Dissipation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Instructions
50NPB 060
Leak Dissipation Control Board (DSB) . . . . . . . . . . . . . . . . . . 11
Pre-Start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Unit Top Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Indoor Blower and Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Outdoor Fan Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Electrical Controls and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 21
Refrigerant Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Indoor Airflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Metering Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
High Flow Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
High Pressure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Puron Advance (R-454B) Compressor. . . . . . . . . . . . . . . . . . . 22
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Compressor Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Synthetic Roof Precautionary Procedure . . . . . . . . . . . . . . . . . 22
Liquid Line Filter Drier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
A10165
Sequence of Events - Dissipation Mode . . . . . . . . . . . . . . . . . . . 23
Flash Codes /Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
No Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flashing 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Start-up Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
A150067
This unit is equipped with electrically powered safety measures. For the
safety measures to be effective, the unit must be electrically powered at
all times after installation, other than when servicing.
Continuous fan mode required for proper functioning. Installation must
meet the Required Minimum Dissipation Airflow as outlined in the
Leak Dissipation System section. Follow instructions in the
Continuous Fan Speed Set-Up section to change speeds.
