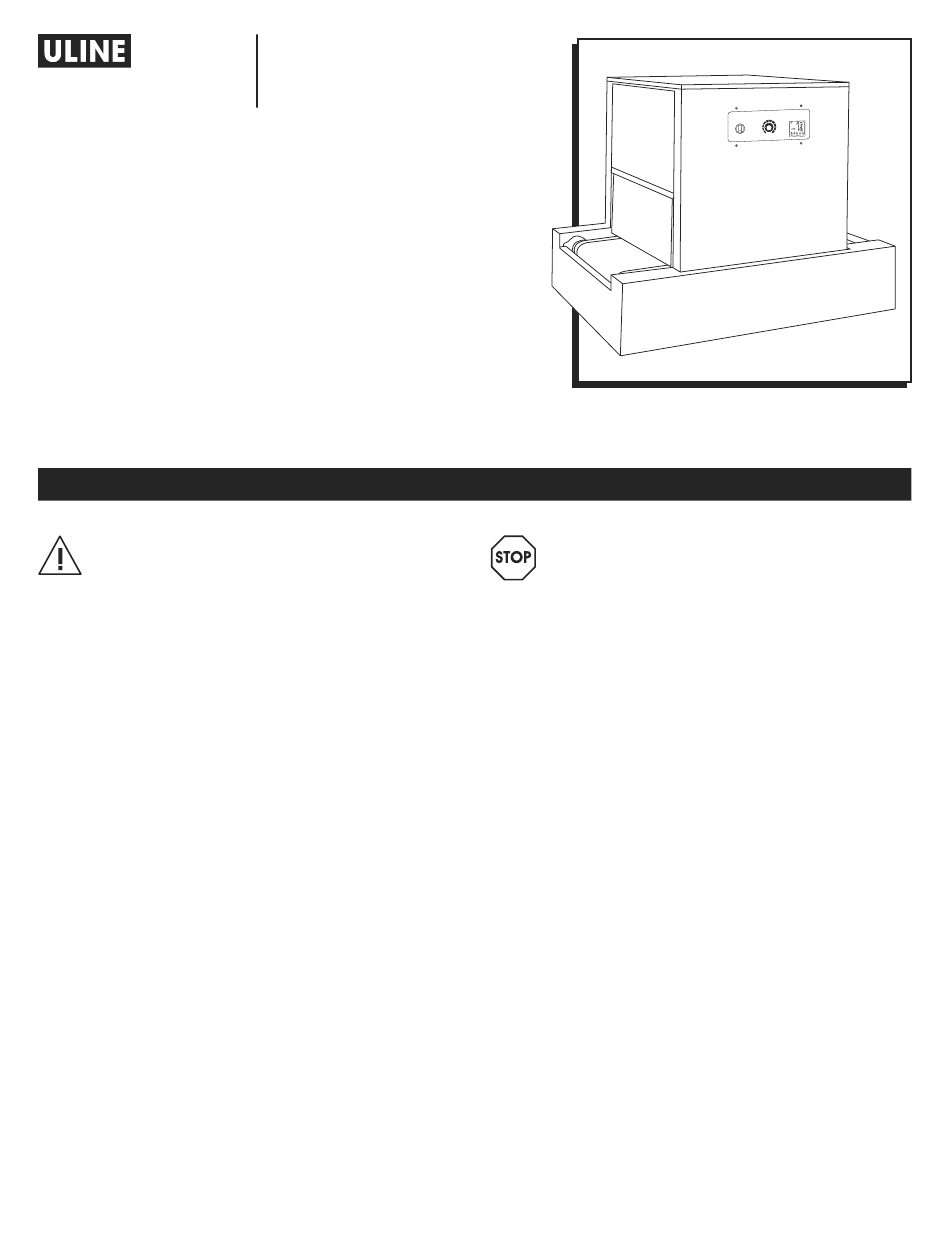

H-2034
SHRINK TUNNEL
IMPORTANT! Read this manual thoroughly
and familiarize yourself with ALL controls and
operating features. Keep this manual for future
reference and maintenance.
Unpacking: Check the machine for damage.
If damage is found, return to Uline.
MACHINE SPECIFICATIONS
• Package Size Capabilities: Tunnel 15 x 8".
• Speed: Will vary with length of package.
• Power Supply: 220 volt, 5 amp mesh belt conveyor.
• Overall Dimensions: 32" x 25" x 27" (L x W x H).
TUNNEL STANDARD FEATURES
• 2,100-Watt tunnel heating power.
• 360-degree air circulation.
MESH BELT CONVEYOR
• Teflon
-coated mesh belt.
®
• Speed controlled tunnel conveyor. 0-60 FPM.
WARRANTY
• Full 1-year warranty on parts.
PAGE 1 OF 15
1-800-295-5510
uline.com
SPECIFICATIONS
Para Español, vea páginas 6-10.
Pour le français, consulter les pages 11-15.
WARNING! Damage to the machinery can
be caused by (but not limited to): electrical
overload, mechanical overload, incorrect
power source, lifting and/or moving the
equipment improperly, and misuse of
assemblies. Any damage from the above
constitutes misuse and/or abuse and will not be
covered by the manufacturer's warranty.
This manual contains multiple precautionary
notes indicated with the word "CAUTION" and/
or "WARNING". Such notes are used to describe
functions that can cause bodily injury and/or
damage to the machine. Notes marked with
"WARNING" indicate a condition that can
cause harm to a person. Notes marked with
"CAUTION" indicate conditions which can
cause damage to the machine.
It is the employer's responsibility to ensure all
personnel associated with the operation of
this machine are adequately trained in the
operation, safety precautions and potential
hazards of this machinery.
TUNNEL TEMP
CONVEYOR SPEED
3 WAY SELECTOR
6
COOL
RUN
START
5
7
4
8
3
PV
2
9
SV
1
10
0524 IH-2034

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-2034 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-2034

  • Page 1 Para Español, vea páginas 6-10. Pour le français, consulter les pages 11-15. H-2034 1-800-295-5510 uline.com SHRINK TUNNEL TUNNEL TEMP CONVEYOR SPEED 3 WAY SELECTOR COOL START SPECIFICATIONS IMPORTANT! Read this manual thoroughly WARNING! Damage to the machinery can and familiarize yourself with ALL controls and be caused by (but not limited to): electrical operating features.
  • Page 2: General Controls

    INSTRUCTIONS GENERAL CONTROLS MACHINE STARTUP H-2034 Shrink Tunnel consists of a tunnel and a conveyor. 1. Turn on the conveyor using the ON/OFF rocker The conveyor is a Teflon -coated mesh belt. The mesh switch located on the back of the machine. Set ®...
  • Page 3: Machine Components

    MACHINE COMPONENTS MAIN FRAME ASSEMBLY ELECTRICAL PANEL Panel is located under the drive roller. Only a The main frame assembly of this machine consists of the qualified technician should access this panel. rails, conveyor drive motor and operator panel. WARNING! Do not tamper with electrical wiring TUNNEL CONVEYOR ASSEMBLY MESH BELT unless licensed or trained to do so.
  • Page 4: Setup Instructions

    OPTIONAL LEG KIT INSTALLATION AND SETUP CAUTION! Assembling the leg kit to the 4. Screw feet into threaded holes provided on bottom conveyor can be dangerous. Two people or of the shelf. Insert casters into nylon insert next to feet. (See Figure 3) a mechanical lift device must be used to position the conveyor above the leg kit until they are attached.
  • Page 5: Troubleshooting

    TROUBLESHOOTING The following guidelines are intended to ease the The cause/solution statements are generally arranged solution of potential problems that may be encountered in order of most probable, easiest solution first on up to during the everyday operations of the machine. more involved, difficult solutions.
  • Page 6: Especificaciones De La Máquina

    H-2034 800-295-5510 uline.mx TÚNEL TERMOENCOGIBLE TUNNEL TEMP CONVEYOR SPEED 3 WAY SELECTOR COOL START ESPECIFICACIONES ¡IMPORTANTE! Lea detenidamente este manual ¡ADVERTENCIA! Los daños a la máquina pueden ser y familiarícese con TODOS los controles y causados por (pero no limitados a): sobrecarga características de funcionamiento.
  • Page 7: Controles Generales

    INSTRUCCIONES CONTROLES GENERALES ARRANQUE LA MÁQUINA El túnel termoencogible H-2034 consiste de un túnel y Encienda la banda transportadora usando el interruptor una banda transportadora. La banda transportadora es oscilante localizado en la parte posterior de la máquina. una correa de malla recubierta de Teflón .
  • Page 8: Componentes De La Máquina

    COMPONENTES DE LA MÁQUINA ENSAMBLE DEL ARMAZÓN PRINCIPAL ENSAMBLE DEL PANEL DE ELECTRICIDAD El ensamble del armazón principal de esta máquina consiste Este ensamble se encuentra ubicado bajo el el rodillo de de los rieles, motor de tracción de la banda transportadora y tracción.
  • Page 9 INSTALACIÓN Y CONFIGURACIÓN DEL KIT DE PATAS OPCIONAL 4. Atornille las patas en los orificios roscados incluidos ¡PRECAUCIÓN! Montar el kit de patas a la banda transportadora puede ser peligroso. Deben trabajar en la parte inferior de la repisa. Inserte las ruedas dos personas o usar un dispositivo mecánico de en el inserto de nylon junto a las patas.
  • Page 10: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS Las siguientes directrices están destinadas a facilitar la Las declaraciones de causas/soluciones generalmente son solución de los problemas potenciales que se pueden organizadas por orden; comenzando con la solución la más presentar durante el funcionamiento cotidiano de la probable y fácil primero y terminando con las soluciones más máquina.
  • Page 11: Spécifications

    H-2034 1 800 295-5510 uline.ca TUNNEL DE RETRACTION TUNNEL TEMP CONVEYOR SPEED 3 WAY SELECTOR COOL START SPÉCIFICATIONS MISE EN GARDE! Veuillez lire attentivement ce AVERTISSEMENT! La machinerie peut être ARRÊT manuel et apprendre TOUTES les commandes et endommagée par, mais non de façon limitative : fonctions.
  • Page 12: Commandes Générales

    INSTRUCTIONS COMMANDES GÉNÉRALES MISE EN MARCHE DE LA MACHINE Le tunnel de rétraction H-2034 est composé d'un tunnel Mettez le convoyeur en marche à l'aide de et d’un convoyeur. Le convoyeur est une courroie l'interrupteur à bascule « ON/OFF » situé à l'arrière maillée revêtue de Teflon...
  • Page 13: Composants De L'appareil

    COMPOSANTS DE L'APPAREIL ENSEMBLE DE CADRE PRINCIPAL AVERTISSEMENT! N'altérez pas le câblage ARRÊT électrique à moins d'y être officiellement L'ensemble de cadre principal de cet appareil se compose des autorisé ou formé à cette fin. Débranchez la rails, du moteur d'entraînement du convoyeur et du panneau de source d'alimentation principale de l'appareil commande.
  • Page 14 INSTALLATION ET ASSEMBLAGE DE L'ENSEMBLE DES PIEDS OPTIONNEL MISE EN GARDE! L'assemblage de l'ensemble 4. Vissez les pieds dans les trous filetés sous la tablette. Insérez les roulettes dans l'encastrement de nylon des pieds au convoyeur peut être dangereux. Deux personnes ou un dispositif de levage près des pieds.
  • Page 15: Dépannage

    DÉPANNAGE Les directives qui suivent visent à faciliter la résolution des Les affirmations cause/solution sont généralement disposées problèmes potentiels qui peuvent survenir durant l'utilisation avec la solution la plus probable/facile en premier, suivie en ordre de difficulté ascendante des solutions plus quotidienne de l'appareil.
