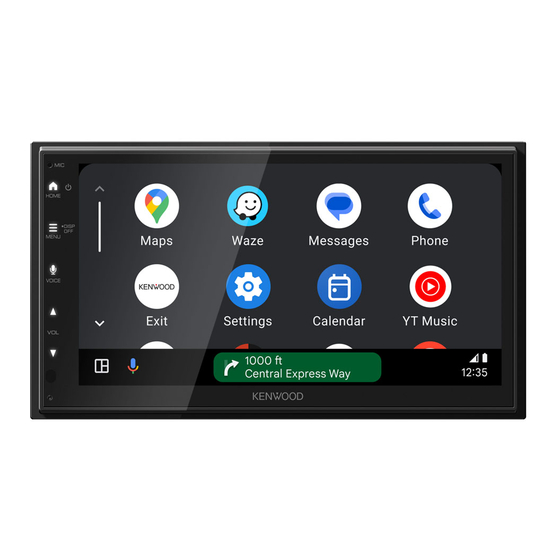

Monitor with receiver

Advertisement

Quick Links

© 2024 JVCKENWOOD Corporation
DMX5023DABS
DMX553DABS
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
• Updated information (the latest Instruction Manual, system updates,
new functions, etc.) is available from
<https://www.kenwood.com/cs/ce/>.
B5K-1157_ref_E_En_02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX5023DABS and is the answer not in the manual?

Questions and answers

Summary of Contents for Kenwood DMX5023DABS

  • Page 1 DMX5023DABS DMX553DABS MONITOR WITH RECEIVER INSTRUCTION MANUAL • Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https://www.kenwood.com/cs/ce/>. © 2024 JVCKENWOOD Corporation B5K-1157_ref_E_En_02...
  • Page 2: Table Of Contents

    Contents Before Use Radio Precautions ..............4 Radio Basic Operation ..........21 How to read this manual ......... 5 Memory Operation ..........22 Selecting Operation ..........22 Basic Operations Traffic Information ...........23 Radio Setup ..............23 Functions of the Buttons on the Front Panel ... 6 Turning on the Unit ...........
  • Page 3 Setting Up Monitor Screen Setup ..........38 System Setup .............38 User Interface Setup ..........39 Special Setup .............40 Display Setup .............40 AV Setup ..............41 Connection Setup ............42 Controlling Audio Speaker/ X’over setup ..........44 Controlling General Audio ........45 Equalizer Control ............46 Volume Offset ............47 Sound Effect ...............47 Listening Position/ DTA ..........48 Remote control...
  • Page 4: Before Use

    • Disconnect the USB device before pressing the • When you purchase optional accessories, <Reset> button. Pressing the <Reset> button check with your KENWOOD dealer to make with the USB device connected can damage sure that they work with your model and in your area.
  • Page 5: How To Read This Manual

    • For best results while pairing with your KENWOOD receiver, please be sure to close any unused applications. How to read this manual • The screens and panels shown in this manual are examples used to provide clear explanations of the operations.
  • Page 6: Basic Operations

    Basic Operations Basic Operations Functions of the Buttons on Name the Front Panel • Motion Reset • If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed. Turning on the Unit Press the [HOME] button.
  • Page 7: Getting Started

    Basic Operations Getting Started Touch [Finish]. Initial setup Perform this setup when you use this unit first time. Set each item as follows. NOTE • These settings can be set from the SETUP menu. See Setting Up (P.38). Calendar/clock settings Press the [MENU] button.
  • Page 8: Adjusting The Volume

    Basic Operations Adjusting the volume Set each item as follows. Scroll the page to show hidden items. To adjust the volume (0 to 40), Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously to level 15. Touch screen operations [Time Format] ■...
  • Page 9: Home Screen Descriptions

    Basic Operations HOME screen descriptions Source selection screen descriptions Most functions can be performed from the HOME screen. You can display all playback sources and options on the source selection screen. • Displays the control screen of current source. • Changes the playback source. •...
  • Page 10 Basic Operations Select the playback source To select the playback source on the HOME screen Touch [ ] on the HOME screen. From the screen, you can select the following sources and functions. • Switches to the Digital Radio broadcast. (P.24) •...
  • Page 11: Source Control Screen Descriptions

    Basic Operations Customize Short-cut buttons on Secondary screen HOME screen • [ ] [ ] : The Secondary screen changes every time you touch it. You can also change the You can arrange the position of the source icons Secondary screen by flicking left or right on as you like.
  • Page 12: Popup Menu

    Basic Operations Popup menu List screen There are some common function keys in the Press the [MENU] button. list screens of most sources. h Popup menu appears. The contents of the menu are as follows. • Displays the Screen Adjustment screen. (P.38) •...
  • Page 13: Apps

    APPS APPS Ñ Apple CarPlay Operation Preparation Connect your iPhone with the USB cable Apple CarPlay is a smarter, safer way to use your that matches the connector. (P.57) iPhone in the car. Apple CarPlay takes the things you want to do with iPhone while driving and Unlock your iPhone.
  • Page 14: Android Auto™ Operation

    APPS Ñ Android Auto™ Operation Use Siri You can activate Siri. Android Auto enables you to use functions Press the [VOICE] button. of your Android smartphone convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android smartphone while driving.
  • Page 15: Usb Mirroring Operation For Iphone

    APPS Ñ Operation buttons and USB Mirroring Operation for available Apps on the Android iPhone Auto screen You can display and control the App on the You can perform the operations of the Apps of unit while your iPhone is connected to the USB the connected Android smartphone.
  • Page 16: Usb Mirroring Operation For Android Smartphone

    APPS Ñ Connecting an iPhone USB Mirroring Operation for Android Smartphone Pair your iPhone with the unit via Bluetooth. You can display and control the App on the unit See Register the Bluetooth device (P.29) while your Android smartphone is connected to and Connect the Bluetooth device the USB terminal.
  • Page 17 APPS Ñ Ñ Connecting an Android Operation buttons smartphone Touch [ ] on the bottom left of the Pair your Android smartphone with the screen. unit via Bluetooth. 10:00 See Register the Bluetooth device (P.29) and Connect the Bluetooth device (P.30).
  • Page 18: Usb

    Connecting a USB device USB Basic Operation Most functions can be controlled from the Connect the USB device with the USB source control screen and playback screen. cable. (P.55) Control screen Press the [HOME] button. Touch [ Touch [USB]. (P.10) Ñ...
  • Page 19 Video screen • [ ] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; File random ([ ]), Random off ([ Track information Displays the information of the current file. Only a file name and a folder name are displayed if there is no tag information.
  • Page 20: Search Operation

    Ñ Search Operation Link search (Audio file only) You can search a file of same artist/album/genre You can search music or video files by the as the current track. following operations. Touch [Link Search]. Touch [1]. Touch the desired tag type. You can select Touch [S].
  • Page 21: Radio

    Radio Radio Radio Basic Operation Operation keys • [E] [F] : Tunes in a station. The method of Most functions can be controlled from the frequency switching can be changed (see 2 source control screen. in table). To enter Radio source, touch [Radio] icon in the •...
  • Page 22: Memory Operation

    Radio Selecting Operation • [RDS]: Indicates the state of the Radio Data System station when the AF function is on. Ñ White: Radio Data System is being received. Preset select Orange: Radio Data System is not being You can list and select memorized station. received.
  • Page 23: Traffic Information

    Radio Traffic Information (FM only) Radio Setup (FM only) You can listen and watch the traffic information You can set tuner related parameters. automatically when a traffic bulletin starts. Touch [ However, this feature requires a Radio Data System that includes the TI information. Touch [ ] on the left side of the screen.
  • Page 24: Digital Radio

    Digital Radio Digital Radio Digital Radio Basic Operation Seek mode Switches the seek mode in the following Most functions can be controlled from the sequence; [AUTO1], [AUTO2], [MANUAL]. source control screen. • [AUTO1]: Tunes in a ensemble with good To enter Digital Radio source, touch reception automatically.
  • Page 25: Storing Service In Preset Memory

    Digital Radio Selecting Operation Preset list • Touch [ ] / [ ] allows you to change the Ñ display size. Search by program type • Recalls the memorized service. You can tune to a station with a specific • When touched for 2 seconds, stores the program type when listening to Digital Radio.
  • Page 26: Traffic Information

    Digital Radio Ñ Service search Traffic Information You can select a service from a list of all services You can listen and watch the traffic information received. automatically when a traffic bulletin starts. Touch [1]. However, this feature requires a Digital Radio that includes the TI information.
  • Page 27: Digital Radio Setup

    Digital Radio Ñ Digital Radio Setup Announcement setup When the service for which “ON” is You can set Digital Radio related parameters. selected starts, switches from any source to Announcement to receive it. Touch [ ] on the left side of the screen. Touch [SETUP].
  • Page 28: Bluetooth Control

    Bluetooth Control Bluetooth Control Ñ About the cell-phone and Using the Bluetooth function, various functions Bluetooth audio player can be used: listening to the audio file, making/ receiving a call. This unit conforms to the following Bluetooth specifications: Information for using Bluetooth®...
  • Page 29: Register The Bluetooth Device

    Bluetooth Control Register the Bluetooth device Connection Setup It is necessary to register the Bluetooth audio Press the [MENU] button. player or cell-phone to this unit before using the h Popup menu appears. Bluetooth function. You can register up to 7 Bluetooth devices. Touch [ NOTE •...
  • Page 30: Playing Bluetooth Audio Device

    Bluetooth Control Ñ Connect the Bluetooth device Playing Bluetooth Audio Device Touch [Device List] in the Connection screen. Most function can be controlled from the source control screen. To enter Bluetooth source, touch [Bluetooth Audio] icon in the source selection screen.
  • Page 31: Using Hands-Free Unit

    Bluetooth Control Using Hands-Free Unit Play mode indicator/ Playing time • Touch [ ] / [ ] allows you to hide/display the You can use telephone function by connecting artwork area. the Bluetooth telephone to this unit. • [D], [H]: Current play mode indicator The meanings of each icon are as follows;...
  • Page 32 Bluetooth Control ● Device List Call using the preset number 1) Touch [ Device List screen appears. Touch [ NOTE Touch the Name or phone number. • The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.
  • Page 33 Bluetooth Control Ñ Ñ Voice Recognition Receive a call You can access the voice recognition function of Touch [ ] to answer a phone call or the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The ] to reject an incoming call.
  • Page 34 Bluetooth Control Ñ Ñ Operations during a call Phone number preset You can register frequently used phone numbers to this unit. Touch [ Touch [Edit]. ● Adjust the volume of your voice 1) Touch [Speech Quality]. 2) Touch [T] or [U] for [Microphone Level]. Select where to preset.
  • Page 35: Hands-Free Setup

    Bluetooth Control Hands-Free Setup ■ [Delete] To delete a preset number, touch [Delete] and then touch [Yes] on the confirmation You can make various settings for the Hands- screen. Free function. Ñ Phonebook transfer Press the [MENU] button. h Popup menu appears. You can transfer the phonebook in your Bluetooth smartphone via PBAP.
  • Page 36: Other External Components

    Other External Components Other External Components Ñ Camera Setup View Camera Press the [MENU] button. # CAUTION h Popup menu appears. The position of parking guidelines displayed on the monitor may differ from actual condition. Touch [ Please take the actual parking guidelines as h SETUP Menu screen appears.
  • Page 37 Other External Components To adjust the parking guidelines NOTE • Install the rear view camera in the appropriate position according to the instructions supplied with the rear view camera. • When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving.
  • Page 38: Setting Up

    Setting Up Setting Up Monitor Screen Setup System Setup You can adjust image quality in video screen. Press the [MENU] button. Press the [MENU] button. h Popup menu appears. h Popup menu appears. Touch [ Touch [ h Screen Control screen appears. Adjust each item as follows.
  • Page 39: User Interface Setup

    Setting Up Ñ User Interface Setup Learning function of steering remote You can setup user interface parameters. This function is available only when your vehicle is equipped with the electrical steering remote Press the [MENU] button. controller. h Popup menu appears. If your steering remote controller is not compliant, learning may not be completed and Touch [...
  • Page 40: Special Setup

    Setting Up Special Setup Display Setup You can setup Special parameters. Press the [MENU] button. Press the [MENU] button. h Popup menu appears. h Popup menu appears. Touch [ Touch [ h SETUP screen appears. h SETUP screen appears. Touch [Display]. Touch [Special].
  • Page 41: Av Setup

    Setting Up AV Setup To register original image You can load an image from the connected USB device and set it for the wallpaper image. You can set AV parameters. Before operating this procedure, it is necessary Press the [MENU] button. to connect the device which has the image to h Popup menu appears.
  • Page 42: Connection Setup

    Setting Up Connection Setup [Phone Calling/Talking Volume] ■ Adjust the level of phone calling/talking volume. Default is “15” Press the [MENU] button. [Speech Quality Adjust] ■ h Popup menu appears. Adjust the speech quality. [Microphone Level] : Adjust the level of Touch [ microphone gain.
  • Page 43 Setting Up Ñ Change the device name for Bluetooth Touch [Device Name] on the Connection screen. h Change Device Name screen appears. Touch [ Input the device name. Touch [Enter]. English...
  • Page 44: Controlling Audio

    Controlling Audio Controlling Audio Speaker/ X’over setup You can adjust the various settings such as audio balance or subwoofer level. Press the [MENU] button. Press the [MENU] button. h Popup menu appears. h Popup menu appears. Touch [ Touch [ h Audio screen appears.
  • Page 45: Controlling General Audio

    Controlling Audio [Tweeter] (Only for Front) [TW] (Tweeter) [Gain]* ■ ■ You can set the tweeter when you are Adjusts the tweeter level. (When front is selecting front speakers. selected on Speaker Select screen) [None], [Small], [Medium], [Large] [Phase Inversion]* ■...
  • Page 46: Equalizer Control

    Controlling Audio Equalizer Control [SW Level] ■ Adjusts the subwoofer volume. You can adjust equalizer by selecting the Ñ Recall the EQ curve optimized setting for each category. Press the [MENU] button. Touch [Preset Select]. h Popup menu appears. Select EQ curve. Touch [ h Audio screen appears.
  • Page 47: Volume Offset

    Controlling Audio Volume Offset Sound Effect Finely adjust the volume of the current source You can set sound effects. to minimize the difference in volume between Press the [MENU] button. different sources. h Popup menu appears. Press the [MENU] button. h Popup menu appears.
  • Page 48: Listening Position/ Dta

    Controlling Audio Listening Position/ DTA Position DTA control You can fine-adjust your listening position. Adjust the sound delay time as nearer speakers Touch [Adjust]. to the selected seat have more delay time, so that the sound from each speaker arrive a Touch [Delay].
  • Page 49: Remote Control

    Remote control Remote control Ñ Battery Installation This unit can be operated using the remote control KCA-RCDV340 (optional accessory). If the remote control operates only over shorter distances or does not operate at all, it is possible # CAUTION that the batteries are depleted. •...
  • Page 50: Functions Of The Remote Control Buttons

    Remote control Functions of the Remote Function control Buttons Name Switches the screen between the [DISP] • Aim the remote control directly at the remote current source and the App screen sensor on the faceplate. from the connected iPhone/ • DO NOT expose the remote sensor to bright Android.
  • Page 51: Connection/Installation

    Connection/Installation Connection/Installation This section is for the professional installer. • If the power is not turned ON (“There is an For safety’s sake, leave wiring and mounting error in the speaker wiring. Please check to professionals. Consult the car audio dealer. the connections.”...
  • Page 52: Installing The Unit

    Connection/Installation Installing the unit • Reception may drop if there are metal objects near the Bluetooth antenna. Ñ Mounting sleeve Bend the tabs of the mounting sleeve with Bluetooth antenna unit a screwdriver or similar Ñ utensil and attach it in Supplied accessories for place.
  • Page 53 Connection/Installation Ñ Ñ 1DIN install GPS antenna (without mounting sleeve) GPS antenna is installed inside of the car. It You can install the unit in a 1DIN size space by should be installed as horizontally as possible to removing the right, left, and rear brackets. allow easy reception of the GPS satellite signals.
  • Page 54 Connection/Installation Ñ Removing the trim plate 4) Pull out the unit halfway. 1) Insert the extraction key (accessory 4) between the trim plate and the main unit from between the claws. NOTE • Be careful to avoid injury from the catch pins 2) Pull the plate out towards yourself.
  • Page 55 Connection/Installation Ñ Connecting wires to terminals Subwoofer Preout (Blue) Visual Output (Yellow) SUB-W V-OUT CAM IN Rear view camera input (Yellow) Rear Audio Preout (Left; White, Right; Red) Front Audio Preout (Left; White, Right; Red) Fuse (15A) USB terminal (1.0 m) 2.1A USB device SUB-W...
  • Page 56 (Power control/Antenna control wire) P. CONT ANT. CONT Connect to vehicle’s steering remote harness. Connect either to the power control Contact your KENWOOD dealer for details. terminal when using the optional power amplifier, or to the power ST REMOTE Green/Red...
  • Page 57 • Make sure that the pin assignment of the DC 5 V = 2.1 A Sold separately connector matches with the KENWOOD unit. • Take extra notice of the power wire. • In case battery wire and ignition wire are not corresponding then change them accordingly.
  • Page 58: Troubleshooting

    Troubleshooting Troubleshooting Problems and Solutions Error Messages If any trouble occurs, first check the following When you fail to operate the unit correctly, the table for possible problems. cause of the failure appears as the message on the screen. NOTE [No Device] (USB device) •...
  • Page 59: Appendix

    Appendix Appendix Playable Media and Files You can play various kinds of media and files on this unit. Ñ About files The following audio and video files are supported. ■ Playable Audio files Format Bit rate Sampling frequency Bit count AAC-LC (.m4a) MPEG2/4 AAC LC 8 –...
  • Page 60: Specifications

    Appendix Specifications ■ Bluetooth section Technology ■ Monitor section : Bluetooth Ver. 5.0 Picture Size Frequency : 6.8 inches (diagonal) wide : 2.402 – 2.480 GHz Display System RF Output Power (E.I.R.P.) : Transparent TN LCD panel : +9 dBm (MAX), Power Class 1 Drive System Maximum Communication range : TFT active matrix system...
  • Page 61 Appendix ■ FM tuner section ■ Audio section Frequency Range (step) Maximum Power Output (Front & Rear) : 87.5 – 108.0MHz (50kHz) : 50 W × 4 Usable Sensitivity (S/N: 30 dB) Full Bandwidth Power (at less than 1% THD) : 16.2 dBf (1.8 μV/75 Ω) : 22 W ×...
  • Page 62: About This Unit

    Appendix About this Unit OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL ■ Copyrights INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM •...
  • Page 63 Appendix OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT ■ Information on Disposal of Old LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS Electrical and Electronic Equipment OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR and Batteries (applicable for EU BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, countries that have adopted separate STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR...
  • Page 64 Hereby, JVCKENWOOD declares that the radio equipment Slovensko DMX5023DABS/DMX553DABS is in compliance with Directive S tem JVCKENWOOD izjavlja, da je radijska oprema DMX5023DABS/ 2014/53/EU. The full text of the EU declaration of conformity is DMX553DABS v skladu z Direktivo 2014/53/EU. Celotno besedilo...
  • Page 65 Български език Watford, Hertfordshire WD24 4WH, UNITED С настоящото JVCKENWOOD декларира, че радиооборудването KINGDOM на DMX5023DABS/DMX553DABS е в съответствие с Директива 2014/53/ЕС. Пълният текст на ЕС декларацията за съответствие е Hereby, JVCKENWOOD declares that the radio достъпен на следния интернет адрес: equipment “DMX5023DABS / DMX553DABS”...
  • Page 66 Important Notice on Software EULA Ñ Ñ Software License on This Product Software License Agreement The software embedded in this product comprises a JVCKENWOOD Corporation (hereinafter called number of independent software components, each “Licensor”) holds either the copyright to the of which is copyrighted by JVCKENWOOD Corporation embedded software or the right to sublicense it.
  • Page 67 Article 3 (Terms of License) Article 8 (Cancellation of the Agreement) 1. In assigning this product, User may not retain Licensor reserves the right to cancel this agreement the original copy of the embedded Licensed forthwith and claim compensation from User for the Software (including associated literature, updates damages caused by such cancellation when User: and upgrades) and any duplicates and associated...
