Summary of Contents for Solem LR-BST-REACT

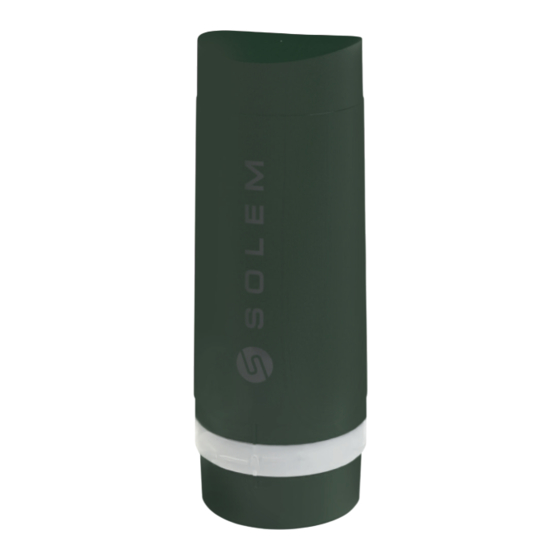

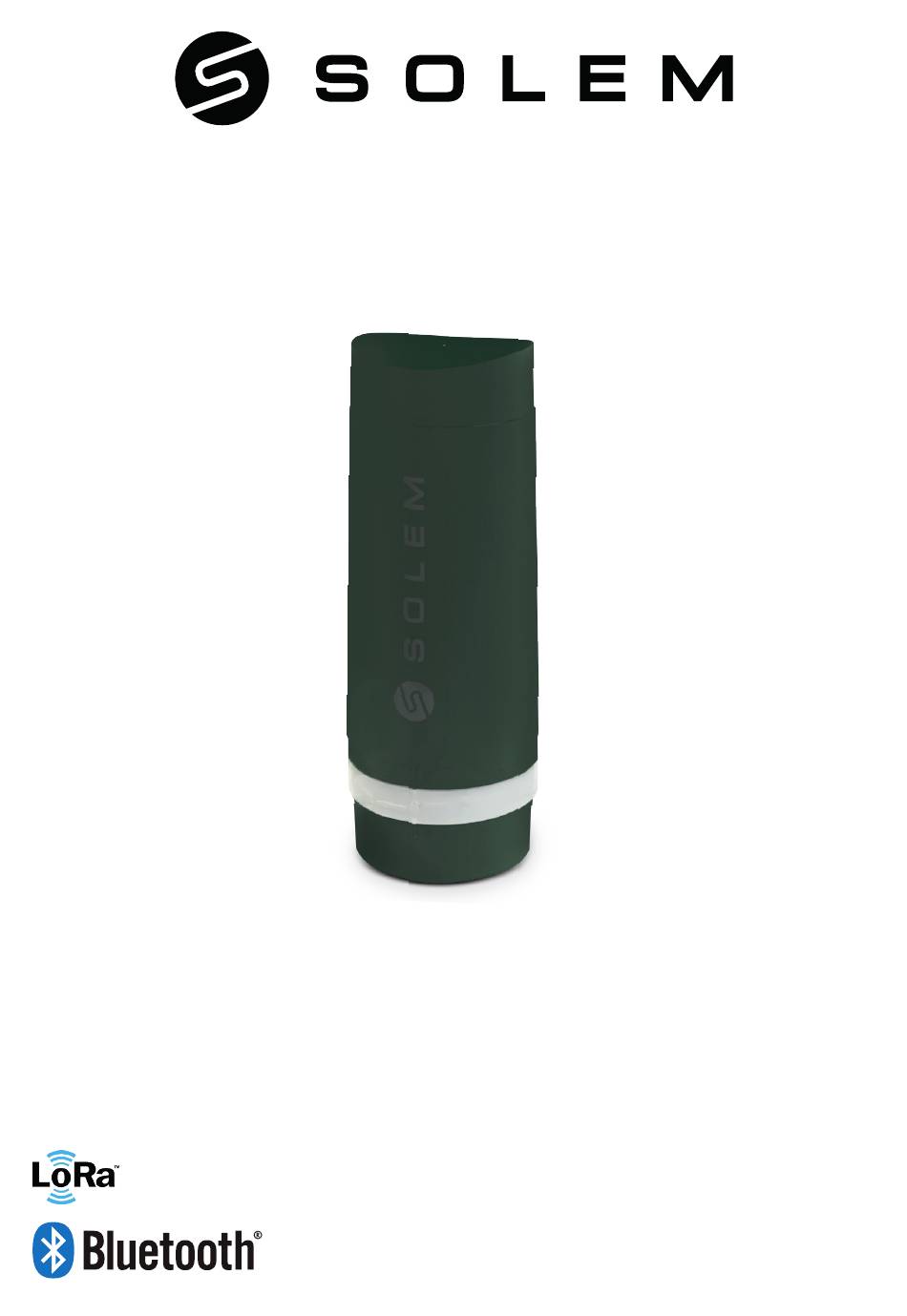

- Page 1 THE CONNECTED IRRIGATION EXPERT LR-BST-REACT T h e 4 G / L o R a G AT E WAY INSTALLATION GUIDE V060121...
- Page 2 PRESENTATION The LR-BST-REACT is a 4G gateway connected to the internet which makes it possible to retrieve programming data from the MySOLEM application or from the MySOLEM.com platform and transmit them to the LoRa modules used in your installations. It communicates by long range LoRa...
- Page 3 INFORMATIONS The frequency of 4G data communication : Thanks to its SIM card, the LR-BST-REACT communicates periodically over 4G with the MySOLEM platform in order to : • Transmit the informations to LR-IP / LR-AG / LR-IS-FL / LR-IPFL. (ex: irrigation programs, manual controls, ON / OFF, etc ...) •...
- Page 4 • Insert the SIM Card (if it is not present). POWER SUPPLY CONNECTION • Drill the grommet located under the lower part of the LR-BST-REACT. • Pass the cable through the grommet. • Connect the cable to the green connector.
- Page 5 Power Supply Connection and recommendations 230V 230V Recommendations of the power supply connection to the electricity network • Use the power supply supplied. • Connect the 230Vac input of the transformer to the electrical network, protecting it with a 2A disconnecting circuit breaker. •...
- Page 6 Prohibited connections 230V 230V 230V 230V 230V...
- Page 7 BATTERY CONNECTION • Branchez la batterie. • Set the Switch to ON. When starting up the LR-BST-REACT connects to the internet network and thus to the MySOLEM platform. (insofar as you have requested the acti- vation of the SIM card).
- Page 8 3. CLOSE THE LID OF THE LR-BST-REACT • Close the lower and upper parts using the locking pictograms.
-
Page 9: Pole Mounting
• Prepare the 2 LR-BST supports with 2 collars. • First fix the bracket on the pole. • Then fix the 2 LR-BST supports on the pole with the 2 collars. • Do not fully tighten the collars to allow you to adjust The LR-BST-REACT. - Page 10 If necessary readjust the height of the 2 plastic supports as well as the position of the square. • Once properly positioned, correctly tighten all clamps Cut off the excess collar NOTE: The LR-BST-REACT can also be mounted on a wall.
- Page 11 SOLAR PANEL ASSEMBLY The solar panel can be mounted on the wall or on a pole 40 to 60 mm in diameter, or with the addition of jaws on a pole of 60 to 120 mm. FOR THE DETAILS OF THE ASSEMBLY OF THE PANEL AND THE FLANGES, REFER TO THE INSTRUCTIONS PROVIDED IN THE BOX OF BINDINGS Jaws for 60 to 120 mm posts Nuts...
- Page 12 SOLAR PANEL ASSEMBLY HIGH WIND FIXATION The Solar panel has another type of attachment sold apart from the so-called "high wind" for exposures of the solar panel to winds above 50km / h. FOR THE DETAILS OF THE ASSEMBLY OF THE PANEL AND THE FLANGES, REFER TO THE INSTRUCTIONS PROVIDED IN THE BOX OF BINDINGS.
- Page 13 SUMMARY TABLE OF THE COMMUNICATION PERIODICITY OF THE LoRa RADIO DEPENDING ON THE BATERRY STATUS Periodicity Power 4G Plateform Battery Status LoRa supply mode (Internet) Ended Charge 230VAC Power supply or Solar panel Batterry charging 230VAC Power supply or Solar panel Communication corresponding to the chosen subscription : Battery...
-
Page 14: Led Status
LED STATUS The LEDs are functional for one hour when starting the LR-BST-REACT. Beyond this period the LR-BST-REACT goes into standby mode. • Green LED : fonctionnement normal. • Flashing green LED : LoRa communication. • Red LED flashing 3 times : Loss of GSM network. - Page 15 MySOLEM ACCOUNT CREATION Why create a MySOLEM Acount ? The possibility of remote connection of SOLEM products is not only linked to their connectivity (Wi-Fi, 4G, Sigfox). To allow remote programming of your product, you need a way to identify the product but also the person using it.
-
Page 16: Anti Theft Function
2. Follow the steps described on the application ANTI THEFT FUNCTION What is the anti-theft function : The ANTI-THEFT functionality applies to all SOLEM products, even those already installed in the field. It allows you to remotely deactivate / reactivate any device stolen by a third party. - Page 17 The objective of this function is both to render the product unusable but to no longer generate interest in stealing SOLEM products. (Inability to use or resell it). The more this function is used, the more the interest in stealing the product...
- Page 18 LR-BST-REACT ASSOCIATION IN THE MySOLEM APP 1. Verify that the Bluetooth® is activated on the settings of your smartphoner. 2. Launch MySOLEM App from your smartphone and/or tablet. 3. Push on : 4. Select the LR-BST-REACT picture No module already installed...
- Page 19 5. Select the required LR-BST-REACT to be installed from the list of the available modules. 6. Associete your LR-BST-REACT and activate the anti theft if you want to use it.
- Page 20 • The frequency of communication of the LoRa radio between the modules LR and LR-BST-REACT depend on the LR-BST-REACT power mode and battery charge status. (see table on page 13). It also depends on the wakeup of the LoRa radio of the LR module (wakeup every 3 minutes for battery modules).
-
Page 21: Pairing Mode
PAIRING MODE If you have powered LR-BST-REACT gateway on solar panel, to associate LoRa modules such as LR-FL / LR-MS / LR-IS / LR-IS-FL / LR-IP / LR-IP-FL / LR-AG to the LR-BST-REACT gateway, it must be switched to pairing mode. - Page 22 Example of a radio association between an LR-AG module and the LR-BST-REACT : You must first have associated your LR-AG module with the MySOLEM application before proceeding with the association of the module on your LR-BST gateway. Refer to the user manual to associate it and then perform the following steps.
- Page 23 3/ Sélect your LR-BST-REACT 4/ push on send to validate the operation. Your LR-AG is now associated.
-
Page 24: Test Connection
LR-BST, this connection test can be used to validate the positioning of the latter by going to temporarily install the LR-BST-REACT in its intended location then by going to position a module in each of the manholes to verify good communication with the LR-BST-REACT. - Page 25 LoRa connection betwen the LR-BST-REACT and the module is reliable. If the connection is not established, a "No connection established" message appears. Repeat this test several times to confirm that the connection cannot be made. If this is the case, it will be preferable to reposition the module.
-
Page 26: Status Connection
LoRa STATUS CONNECTION These icons indicate when the LR-BST-REACT was last connected to the LoRa modules. Connection < 5mn 5mn < Connection < 10mn Connection > 10mn Changes not transmitted Connection never done or very long time without communication with the gateway. -
Page 27: Technical Caracteristics
TECHNICAL CARACTERISTICS Use conditions : Allowable humidity : 90% (relative humidity) Ambient temperature of use of the product : -20°C à 60°C Warranty : 2 years Dimensions : Diameter 115mm x Height 307mm Power supply : Power supply unit : INPUT : 100-240V 50/60Hz OUTPUT : 24Vdc 0.6A Solar panel : 12V 20W Battery : 4V 2.5Ah Frequency band used :...
