Page 1: Instruction Manual - 7W+ Engraving Laser Head
Instruction Manual – 7W+ Engraving Laser Head INSTRUCTION MANUAL – 7W+ ENGRAVING LASER HEAD J Tech Photonics, Inc. | www.jtechphotonics.com August 22, 2024 Copyright 2024... -
Page 2: Table Of Contents
Version: 1.3 CONTENTS Instruction Manual – 7W+ Engraving Laser Head......................1 General ..................................3 7W+ Laser Head Overview ............................3 Absolute Maximum Ratings: ............................. 3 Electrical / Optical Characteristics ..........................3 Getting Started ................................4 Unpacking .................................. 4 Operation ..................................4 Laser Focus ................................ -
Page 3: General

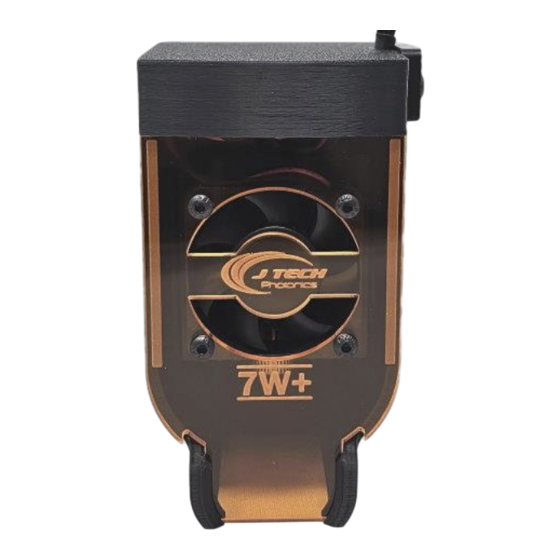

General GENERAL 7W+ LASER HEAD OVERVIEW The new 7W+ laser head is based on the hugly popular 7W PRO lasers we have been selling for the last 5 years. The beam in the laser is collimated and compressed into a square, increasing the power density and making the beam equal in both axis. -
Page 4: Getting Started
Getting Started GETTING STARTED UNPACKING Inspect the shipping container for damage. Verify the contents of the package: • 7W+ Laser Head • Focus Tool • OD4+ Safety Goggles with Case OPERATION LASER FOCUS The laser should be focused depending on what application you are completing. In the case of engraving, the laser should be focused on the top of the wood. -
Page 5: Beam Profile
Operation BEAM PROFILE The 7W+ laser uses proprietary technology inside the laser diode package to decrease the total beam size while increasing the total power. This makes it the smallest spot size possible in a diode laser. The energy from the sides of the rectangle are superimposed into the center, increasing the power density, reducing the spot size, and making the beam uniform. -
Page 6: Laser Safety
Operation LASER SAFETY Laser light can cause damage to eyesight and skin if proper laser safety is not used. Always wear the appropriate laser goggles to prevent any laser light, either directly or indirectly to contact the eye. Never expose skin directly to laser radiation. Focused light will increase the safety hazard.
