- Page 1 Instruction Manual – Dual PRO 14W Laser Head INSTRUCTION MANUAL – DUAL PRO 14W LASER HEAD Version: 1.0 J Tech Photonics, Inc. | www.jtechphotonics.com April 1, 2021 Copyright 2022...
- Page 2 CONTENTS Instruction Manual – Dual PRO 14W Laser Head ......................1 General ..................................3 Dual Pro 14W Laser Head Overview ......................... 3 Absolute Maximum Ratings: ............................. 3 Electrical / Optical Characteristics ..........................3 Getting Started ................................5 Unpacking .................................. 5 Operation ..................................
- Page 3 DUAL PRO 14W LASER HEAD OVERVIEW The new Dual Pro 14W laser head is the optical combination of two 7W PRO laser diodes. They are combined and then the beam is collimated and compressed into a square, increasing the power density and making the beam equal in both axis.
- Page 4 General Threshold Current Operating Voltage Focused Spot Size .0035 0.06 Inch Beam Divergence Full Angle (1/e^2) // deg. Beam Divergence Full Angle (1/e^2) - Perp deg. -Above specifications are for reference purposes only and are subject to change. Figures in specifications may contain measurement errors.

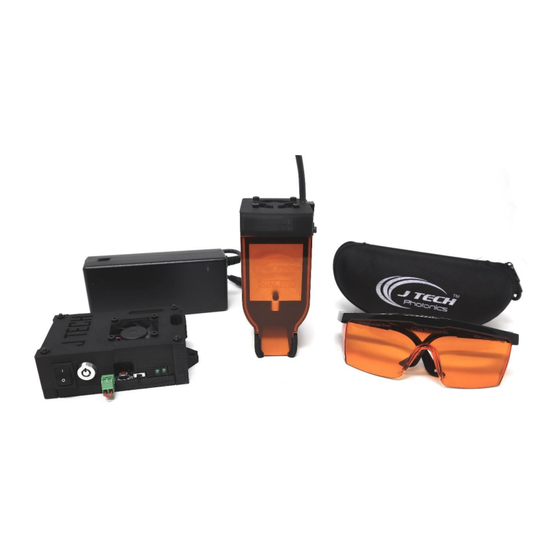

- Page 5 Getting Started GETTING STARTED UNPACKING Inspect the shipping container for damage. Verify the contents of the package: • Dual Pro 14W Laser Head • Focus Tool • OD4+ Safety Goggles with Case OPERATION LASER FOCUS The laser is fixed focus to ¼” below the laser shroud. For engraving, you can focus the laser to the top surface of the material using the focusing tool provided.
- Page 6 Operation BEAM PROFILE The 14W Dual Pro laser uses proprietary technology inside the laser diode package to decrease the total beam size while increasing the total power. This makes it the smallest spot size possible in a diode laser. The energy from the sides of the rectangle are superimposed into the center, increasing the power density, reducing the spot size, and making the beam uniform.
- Page 7 Operation LASER SAFETY Laser light can cause damage to eyesight and skin if proper laser safety is not used. Always wear the appropriate laser goggles to prevent any laser light, either directly or indirectly to contact the eye. Never expose skin directly to laser radiation.
- Page 8 Operation DISCLAIMER • All statements of safety are only applied when the laser is used in its intended purpose. • You are legally responsible for any injury to anybody resulting from the use of or assembly of the laser or their finished products.
