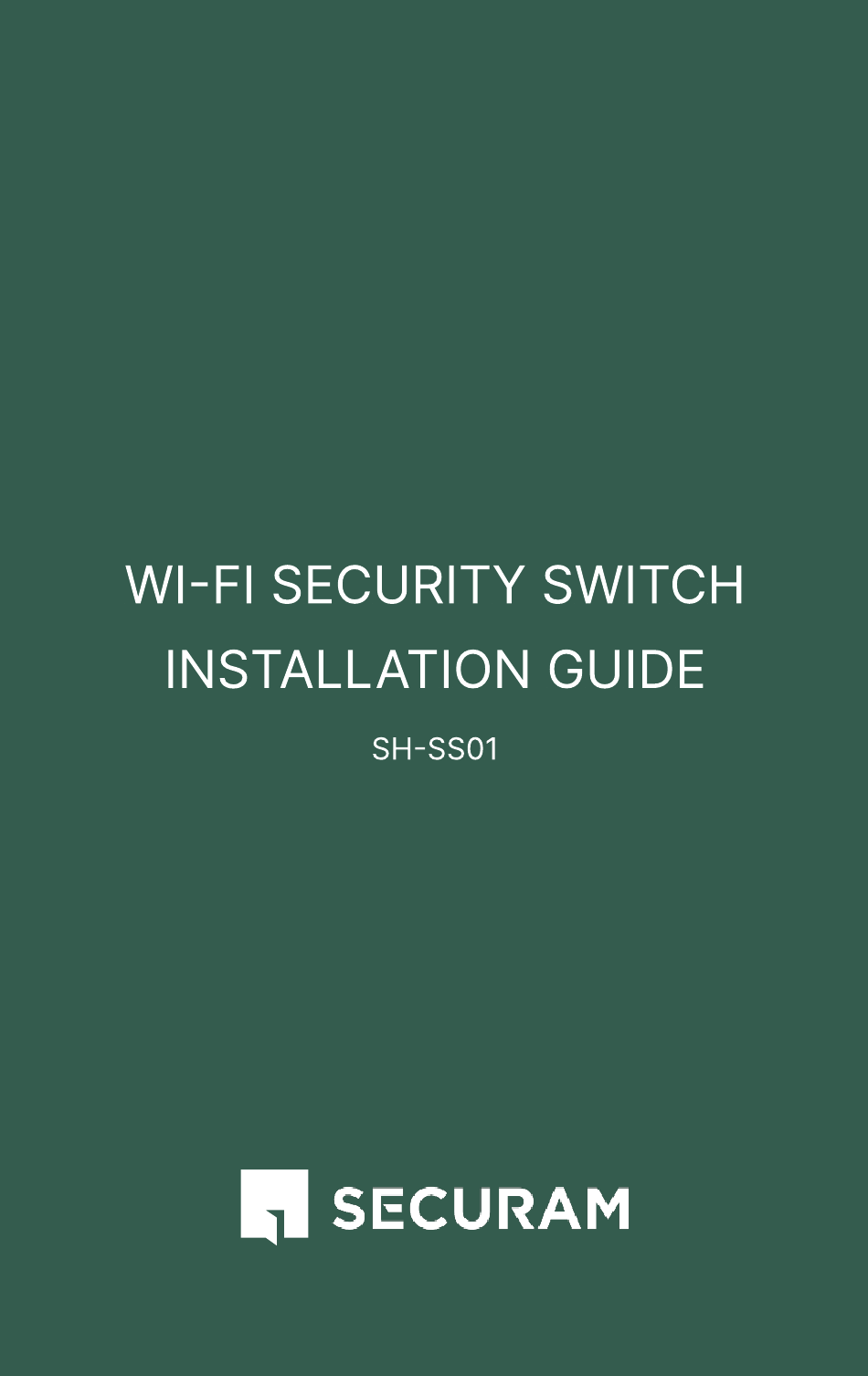

- Page 1 WI-FI SECURITY SWITCH INSTALLATION UIDE SH-SS01...
- Page 2 Thank you for purchasing your SECURAM smart home product. Our innovative products are designed to make your home safer, more convenient, and more energy-efficient. With the help of our easy-to-use app, you can control all of your SECURAM smart home devices from any here, at any time.
- Page 4 Switch Overview LED Indicator Smart Switch, ON / OFF Smart Switch, Laser Motion Ambient Light Sensor Sensor Reset Button...
- Page 5 Install STEP 1 STEP 2 Shut off power at the circuit Make sure the existing breaker for the switch you switch box has a neutral are replacing. More than wire*. Remove existing wall one disconnect switch may plate. be required to turn off *Neutral wire is typically power.
- Page 6 Install - Single Pole Switch STEP a Turn on power at the circuit breaker and use a noncontact voltage tester to check which wire is live (line). The tester will flash or chirp when it comes close to a line wire. Turn off the power at the circuit breaker and label the wires.
- Page 7 Install - Single Pole Switch, cont. STEP a Follow the wiring diagram to connect the wires in the wall box to the switch. Insert the wire into the connector hole of the switch, and use the screwdriver to fasten it firmly. Or you can connect the switch wires to the wires in the wall box with the wire nuts. ...
- Page 8 Install - 3-Way Switch STEP 3b Turn on power at the circuit breaker and use a noncontact voltage tester to check which wire is live (line). The tester will flash or chirp when it comes close to a line wire. Turn off the power at the circuit breaker and label the wires.
- Page 9 Install - 3-Way Switch, cont. STEP 4b Follow the wiring diagram to connect the wires in the wall box to the switch. Insert the wire into the connector hole of the switch, and use the screwdriver to fasten it firmly. Or you can connect the switch wires to the wires in the wall box with the wire nuts. ...
- Page 10 Install, cont. STEP 5 Use screws to secure Switch into your wall. Then, snap on included faceplate. STEP 6 Restore power by turning on the breaker. STEP 7 Screw Once power is connected, Faceplate the LED indicator will blink blue to indicate it is ready to connect to Wi-Fi.
- Page 11 Download the SECURAM Guard app...
- Page 12 Register SECURAM Guard account STEP 1 STEP 2 Enter your email address Enter the verification code. or mobile phone number. STEP 3 STEP 4 Create a password. Log into the app.
- Page 14 LED Indicator Status LED Indicator Switch Status Blinking Blue Device in pairing mode Blinking Red Device network disconnected Blinking Orange Home Security System is armed Rapid Blinking Orange Motion detected when armed Solid White Device working normally No motion detected, or switch has no power Indicator Light...
- Page 15 This button toggles the wired light on and off. Smart Switch, ON Both smart switches can be programmed to control other linked SECURAM Smart Switches. By default, this turns the wired light on. The indicator will turn on when the linked switches are off, and vice-versa.
- Page 16 12AWG and 14AWG. Requirement R Neutral WirY R Single Pole, or 3-Way Switch with >2” deep bo0 R 2.4GHz Wi-Fi network (5GHz Wi-Fi i not upported R SECURAM Guard Ap7 R Phone with iOS 9.0 or later, or Android 8.0 or later...
-
Page 17: Specifications
Specifications † Rating: 100-120VAC 60Hz 600W Incandescenl † Supported Load Types:f † 100-120V~ 5A, Incandescente † 100-120V~ 5A, Electronic Fluorescent Ballaste † 100-120V~ 3A, LEDe † Wireless Frequency: 2. GH † Wireless Standard: IEEE802.11 b/g/i † Laser sensor detection range: ≤ 6FTD †... -
Page 18: Children Safety
Children Safety This device and its accessories may contain small parts. Please keep them out of reach of children. Remember, this device is not a toy. Children should only use it under adult supervision. Be sure to keep it away from children and pets. - Page 19 FCC Notic This d vic compli s with part 15 of th FCC Rul s. Op ration is subj ct to th following two conditions: (1) this d vic may not caus harmful int rf r nc , and (2) this d vic must acc pt any int rf r nc r c iv d, including int rf r nc that may caus und sir d op ration.
- Page 20 We are here to hel . Contact us if you have any questions, or need assistance with our roducts. support.securamsys.com +1 (805) 988-8088...
