Set-Up Instructions for Models:
968999310/LZ25C
Equipped With One of the Following Decks:
968999343 TRD52 Tunnel Ram Deck,
968999344 TRD61 Tunnel Ram Deck,
968999348 CD52 Combi Deck,
968999349 CD61 Combi Deck
Setup
Uncrate machine.
Tires
Mount rear drive wheels using the lug nuts installed on the
hubs.
Check the tire pressure in all four tires. All tires should be
103 kPa (15 psi.)
Control Arms
Remove top bolt in control arm and loosen bottom bolt,
rotate the control levers to the upright position. Align the
levers so they are even in the neutral position. Reinstall
hardware and tighten.
Wire Harness
1. Connect the wire harness from the seat to the frame
harness.
Engine Oil
Check engine oil with dip stick. Add if needed per the
engine manufactures specifi cations. See engine manual for
oil type and fi lling specifi cations.
Loosen the discharge chute slightly and lower into position.
Chute should be snug but still pivot freely.
115 02 29-26
1

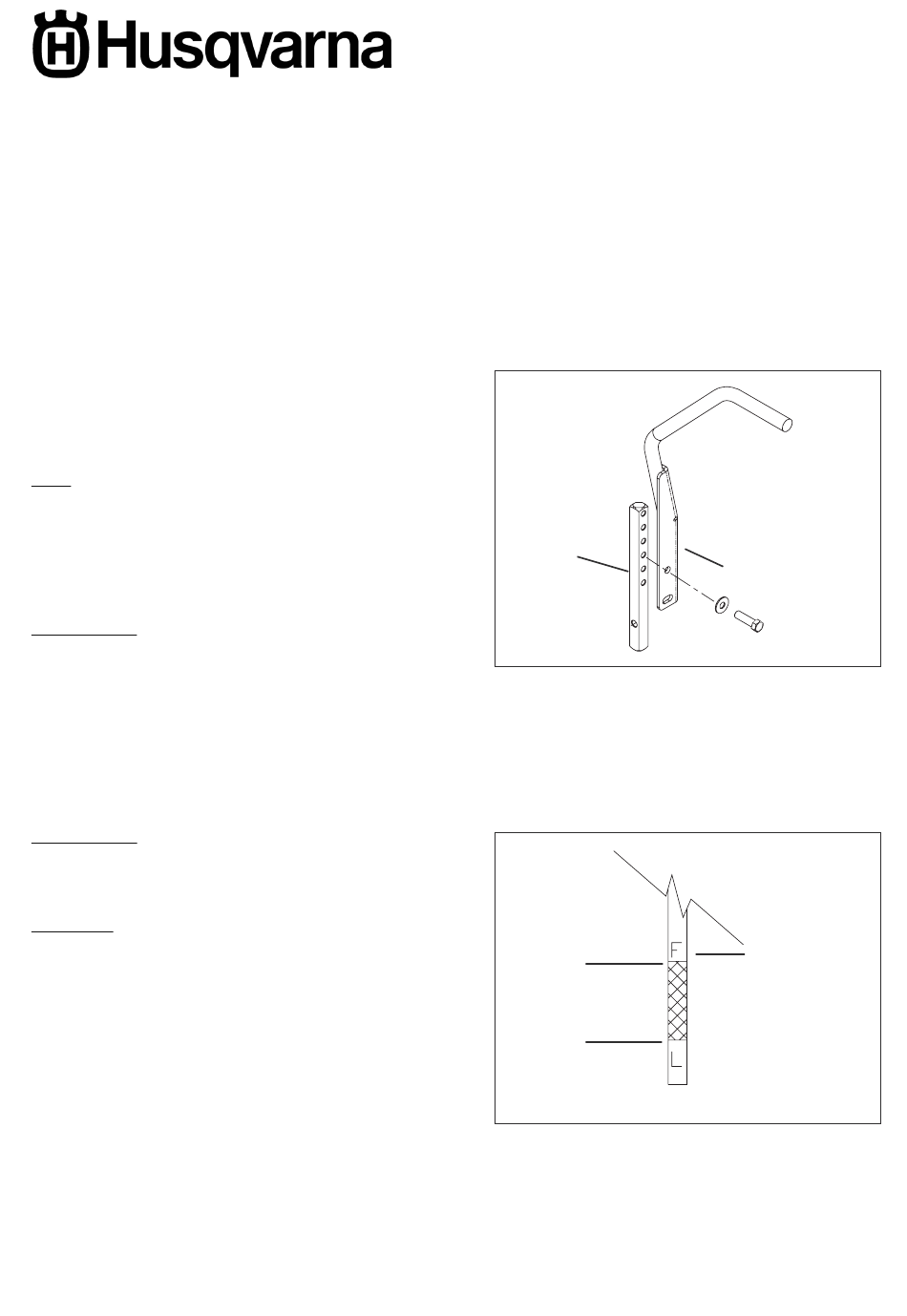

Install Control Arm Hardware
1. Control Arm
2. Motion Control Lever
1
Check Engine Oil Level
1. Operating Range
2. "F" Full Mark
2
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LZ25C and is the answer not in the manual?

Questions and answers

Summary of Contents for Husqvarna LZ25C

  • Page 1 Set-Up Instructions for Models: 968999310/LZ25C Equipped With One of the Following Decks: 968999343 TRD52 Tunnel Ram Deck, 968999344 TRD61 Tunnel Ram Deck, 968999348 CD52 Combi Deck, 968999349 CD61 Combi Deck Setup Uncrate machine. Tires Mount rear drive wheels using the lug nuts installed on the hubs.
  • Page 2 Adjustments Deck Installation Combi Deck Remove the four (4) bolts that pass through the struts that are connected to the unit. Attach the deck struts to the rear of the deck and secure with strut pins. Place the deck under the mower in the approximate position for installation.
  • Page 3 Deck Leveling Combi Deck Locate the three deck leveling blocks from the loose parts. Deck Leveling Block Raise the front of the deck and position the blades so they are parallel with the sides of the unit. Place one (1) height block under the front of the center blade on the mower deck.
  • Page 4 Adjustments Deck Installation Tunnel Ram Deck Locate lift spring and hardware. The tunnel ram deck requires an additional lift spring on the center tab of the rear lift shaft. Install center deck lift assist spring. Install Additional Deck Lift Spring 1.
  • Page 5 Remove the hairpin and washer from the four (4) lift pins on the deck lift arm at the unit. Place the four (4) deck chains on the lift pins and secure with the washer and hairpin previously removed. Deck Lift Arm 1.
  • Page 6 Lower the deck lift lever to 6.35 cm (2.5”). The lift lever may have to be held down to prevent spring back. Connect the chains to the deck. Make sure to remove all slack from the chains by holding the mounting hardware toward the bottom of the slot while tightening the hardware.
