Home Entertainment System
HT-EM53C_ZA_0316.indd 1
HT-EM53C_ZA_0316.indd 1

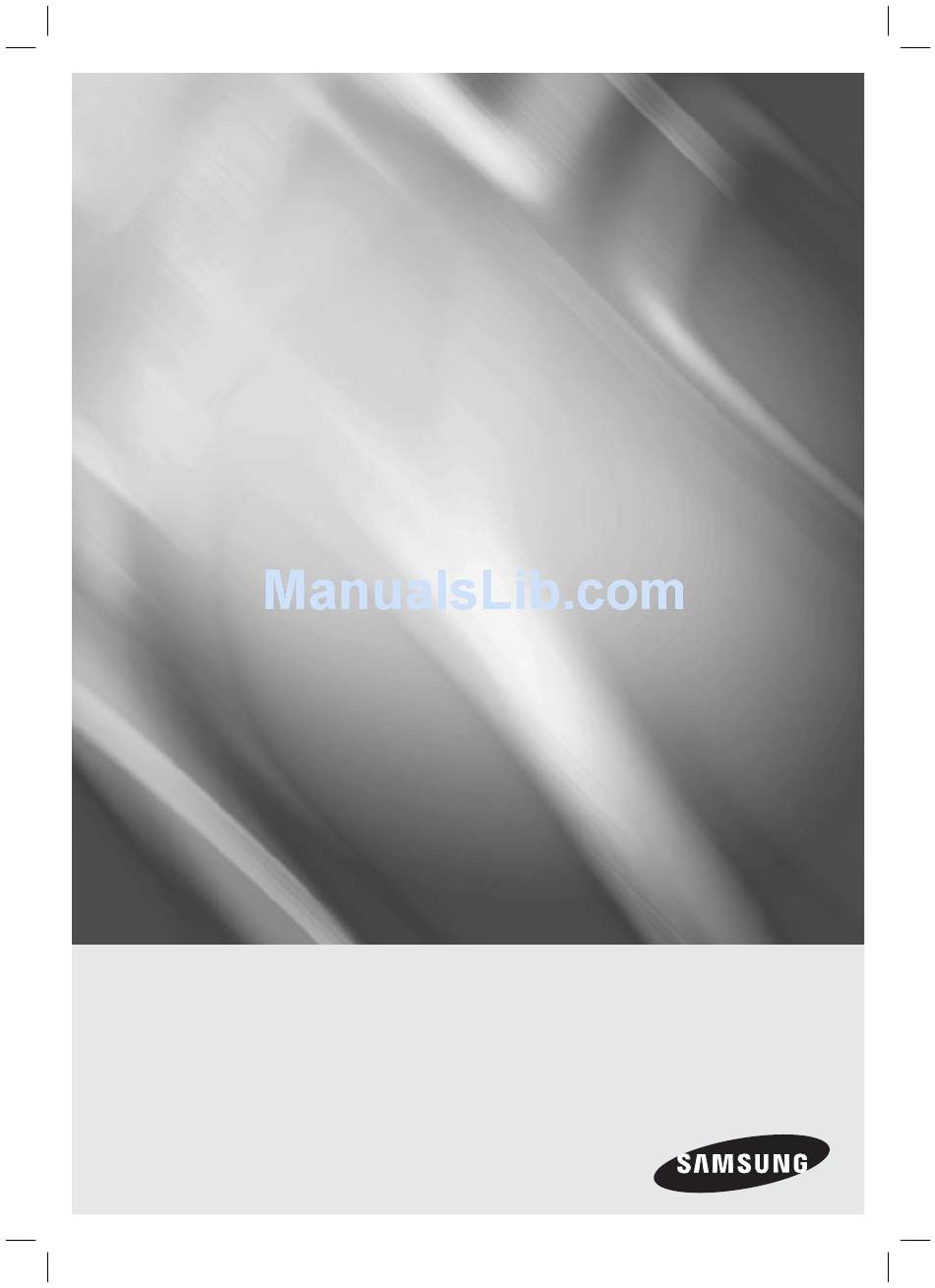

5.1CH Blu-ray™

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
HT-EM53C
2012-03-16 오후 5:59:15
2012-03-16 오후 5:59:15

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-EM53C

Summary of Contents for Samsung HT-EM53C

  • Page 1: User Manual

    HT-EM53C 5.1CH Blu-ray™ Home Entertainment System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register HT-EM53C_ZA_0316.indd 1 HT-EM53C_ZA_0316.indd 1 2012-03-16 오후 5:59:15 2012-03-16 오후 5:59:15...

  • Page 2: Warning

    Safety Information Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and Arrowhead...

  • Page 3: Precautions

    Consequently, the power plug must be easily moving the cart/apparatus combination to and readily accessible at all times. avoid injury from tip-over. • Do not touch the power plug with a wet hand. It can cause an electric shock. English HT-EM53C_ZA_0316.indd 3 HT-EM53C_ZA_0316.indd 3...

  • Page 4: Using The 3D Function

    Do not use the product. • Some functions such as BD Wise, screen size Using the product as it is may cause a fire or an adjustment, and resolution adjustment may not electric shock. operate properly in 3D play mode.

  • Page 5: Copyright

    • iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks • Dolby and the double-D symbol are registered of Apple Inc., registered in the U.S. and other trademarks of Dolby Laboratories. countries. • This product uses Cinavia technology to...

  • Page 6: Table Of Contents

    Copyright Upgrading Software License MEDIA PLAY GETTING STARTED The AllShare Play Screen Playing Files on a USB Storage Device or Disk and Format Compatibility iPod/iPhone Logos of Discs the product can play iPod/iPhone Models You Can Use with Accessories This Product...

  • Page 7: Getting Started

    \ Your product will not play content that has been recorded on a DVD-R at a bitrate that exceeds 10 Mbps. \ Your product will not play content that has been recorded on a BD-R or USB device at a bitrate that exceeds 30 Mbps.

  • Page 8: Region Code

    Logos of Discs the product can play Both products and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this product is displayed...
  • Page 9 1920x1080  Limitations - Even when a file is encoded by a supported codec listed above, the file might not be played if its content has a problem. - Normal playback is not guaranteed if the file’s container information is wrong or the file itself is corrupted.
  • Page 10 - Does not support WMA 9 PRO multi-channel • You must remove the USB storage device safely files if the number of channels is more than 2 or (by performing the “Safely Remove USB” the files require lossless audio decoding.

  • Page 11: Accessories

    \ AVCHD format discs need to be finalized. \ “x.v.Color” offers a wider color range than normal DVD camcorder discs. \ Some MKV and MP4 format discs may not play, depending on their video resolution and frame rate. Accessories Check for the supplied accessories below.

  • Page 12: Front Panel

    \ To upgrade the product's software through the USB Host jack, you must use a USB memory stick. \ When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or the remote.

  • Page 13: Remote Control

    Turn the product on and off. FUNCTION Press to select TV's video mode. SOURCE To change to TV mode, press the TV button. Set a Sleep time to shut off the RECEIVER SLEEP product. To change to Home Theater, press the BD button.

  • Page 14: Installing Batteries In The Remote Control

    NOTE 15, 17, 18, 40, 48, Citizen 03, 18, 25 Philips 54, 62, 72 \ Make sure to match the “+” and “–” ends of the batteries Cinema Pioneer 63, 66, 80, 91 with the diagram inside the compartment. Classic...

  • Page 15: Connections

    Connections This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers Position of the product Place it on a stand or cabinet shelf, or under the TV stand.

  • Page 16: Speaker Components

    Speaker Components FRONT SURROUND CENTER SUBWOOFER Connecting The Speakers 1. Connect the connecting plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks. Front Speaker (L) Surround Speaker (L) Center Speaker Surround...

  • Page 17: Connecting The Optional Wireless

    Connecting the Optional Wireless Receiver Module To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX card from your Samsung retailer. • This product should be connected with the SWA-5000 only. Center Speaker Front...

  • Page 18: Receiver Module

    CAUTION \ If you want to install the product on the wall, fasten the screws or nails on the wall firmly and use the holes on the rear of speaker to install. However, when you install it, accessories (nails or screws) and installation is not provided by the company.

  • Page 19: Using A Usb Cable

    1. Pull the fixing tab of the Toroidal ferrite core to open it. 2. Make a loop twice in the main unit power cord. 3. Attach the Toroidal ferrite core to the main unit power cord as the figure shows and press it until it clicks. English HT-EM53C_ZA_0316.indd 19...

  • Page 20: Method 2 Connecting To A Tv With A

    Select either Method 1 or Method 2. • If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control, and then select the correct external source from the TV's source list (HDMI, Video In, etc.) to view video from the home theater.

  • Page 21: External Analog Component

    Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the external analog component.  Select the AUX mode. • Be sure to match the colors on the cable plugs to the colors on the input and output jacks. NOTE \ To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.

  • Page 22: Connecting To A Network Router

    Router NOTE \ If your wireless IP router supports DHCP, this product can use a DHCP or static IP address to connect to the wireless Broadband network. service \ Set your wireless IP router to Infrastructure mode. Ad-hoc Broadband mode is not supported.

  • Page 23: The Initial Settings Procedure

    \ The product starts the wireless network connection procedure by default. If you want to set up a wired • The Home menu will not appear if you do not configure connection, select Skip, and then go to "Configuring the initial settings.
  • Page 24 Anynet+ (HDMI-CEC) feature to ON in both aspect ratio. Content formatted in 4:3 will be the TV and the product and 2.) You have set the TV to a displayed with black bars on left and right.

  • Page 25: The Home Screen

    AllShare Play Play videos, photos, or music from Disc or connected devices. \ If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

  • Page 26: Settings Menu Functions

    When you connect a Samsung product and a Samsung TV BD Wise with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc.
  • Page 27 Lets you select which speakers you want active, either the Selection TV's speakers or the Home theater's speakers. Lets you direct the sound from the TV to the Home Theater speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV.
  • Page 28 For more information about Disc to Digital, see page 52. Disc to Digital NOTE \ Disc to Digital lets you upload DVD movies to your own personal, Internet Disc to Digital repository and then stream them in HD format to other Internet connected devices. English HT-EM53C_ZA_0316.indd 28...
  • Page 29 The Simple Menu appears. 3 . Click the menu options you want. NOTE \ Depending on the model of the USB HID keyboard and mouse may not be compatible with your product. \ Some HID keyboard keys may not work.
  • Page 30  If you forget your PIN 1 . Remove any disc or USB storage device. 2 . Press and hold the 5 button on the front panel for 5 seconds or more. All settings will revert to the factory settings.

  • Page 31: Networks And The Internet

    E button. you begin. The IP Settings screen appears. To begin configuring your network connection, 3 . Select the IP Mode field, and then set it to follow these steps: Manual. 1 . In the Home screen, select Settings, and 4 .
  • Page 32 - Wireless Automatic \ You should be able to find the Security Code or Pass - Wireless Manual Phrase on one of the set up screens you used to set up - WPS(PBC) your router or modem. When you configure the wireless network...
  • Page 33 Wi-Fi Direct 9 . Select the IP Mode field, and then set it to Manual. The Wi-Fi Direct function allows you to connect Wi-Fi 10 . Use the number keypad on your remote to Direct devices to the product and each other using a enter the Network values.

  • Page 34: Allshare Settings

    Direct has requested to connect. Select OK, and then press the E button to accept. 4 . Select On or Off, and then press the E button. 3 . The Connecting pop-up appears, followed < To Set the Soft AP Security Key >...

  • Page 35: Upgrading Software

    The Software Update menu allows you to upgrade the product’s software for performance 5 . If you do not make a selection in one minute improvements or additional services. or select Update later, the product stores the new upgrade software. You can upgrade •...
  • Page 36 NOTE decided not to install immediately. \ There should be no disc in the product when you upgrade 1 . If upgrade software has been downloaded, the software using the USB Host jack.

  • Page 37: The Allshare Play Screen

    The first source selection on the right side is highlighted. AllShare Play My List 3 . Use the ▲▼ buttons to select the source of Latest play My List the content, and then press the E button. Recently played files will be displayed here.
  • Page 38 2 . Turn on the product. When the Main screen button. appears, select AllShare Play > Videos, 5 . Press the RETURN ( ' ) button to exit a folder Photos or Music > Connected Device, and or to return to the Main screen.

  • Page 39: Playing Commercial Video Discs

    Playing Commercial Video Discs Play tracks in random order. Display the Equalizer. 1 . Place a disc into the disc tray with the disc’s label facing up and then close the disc tray. Adjust the equalizer manually. Playback starts automatically.
  • Page 40 \ Even though the product will display folders for all content 2 . Click Support at the top of the page. types, it will only display files of the content type you selected 3 . On the Support page, enter the model in Step 2.
  • Page 41 3 . On your computer, using the AllShare appears. software, confirm your phone is connected. 5 . Select the file you want to play or view, and 4 . On the phone, select the file you want to view then press the E button.
  • Page 42 Media Play Controlling Video Playback You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the disc, some of the functions described in this manual may not be available.
  • Page 43 ( ' ) button to go back to the TOOLS NOTE menu. \ Depending on the disc or storage device, the Tools menu \ When you use the BD wise function, may differ. All options may not be displayed. this menu will not appear.

  • Page 44: Controlling Music Playback

    2 . Use the ▲▼ to select the repeat mode you want - Off, One Song, or All - and then \ You can create a playlist with up to 99 tracks on Audio press the E button. CDs (CD-DA).

  • Page 45: Playing Photo Contents

    • Use Select All to select all tracks. This cancels NOTE your individual track selections. When you press the \ When Ripping is done, a folder called MP is created in the RETURN ( ' ) button on your remote or select PLAY and USB.
  • Page 46 However, the sound quality can be affected by the bitrate Monthly Select to sort all photo or video files on of the MP3 file, the size of the photo, and the encoding a storage device by the month created. method.
  • Page 47 Depending on the screen you are NOTE viewing, select Delete to erase a file Delete (Playlist) \ You can also move to Select All on from erasable media (such as a USB the right, and then press the E device) or to delete a playlist.

  • Page 48: Presetting Stations

    STEREO and MONO. and provides thudding sound effects. • In a poor reception area, select MONO for a • Virtual 7.1 : Applies the 7.1 CH sound effect using the clear, interference-free broadcast. 5.1 CH speaker system. • Off : Select this for normal listening.
  • Page 49 NOTE performance. \ If you move to the Home or Smart Hub Home menu in • Game : Enhances the excitement of the game’s sound. 3D mode, it will switch to 2D automatically.

  • Page 50: Network Services

    5 . On the Download Center page, click the • Presents fitness videos from various content Manuals tab. partners with feedback on calories burned after 6 . On the Manuals tab, click the file icon to the every workout. right of Smart Hub Users Manual. The manual downloads.
  • Page 51 • : Allows you to bookmark specific pages so \ If you attempt to download a file, and the file can not be that you can move to them easily. saved, an error message will appear. •...
  • Page 52 2 . On the Home screen, select Smart Hub, and then press the E button. 1 . Attach a USB memory stick to the USB jack 3 . Select Samsung Apps, and then press the on the front of the product, and then check E button.
  • Page 53 XXXXXX (2010) supported by this function. XXXX Activate Your Account to Create A Digital Copy To create a digital copy, you must first activate your account. Go to www.flixster.com/activate and enter the above code. Cancel / Open Menu ' Back 5 .

  • Page 54: Additional Information

    Settings appears in the Resolution menu. • If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function. • For proper operation of BD Wise, set the BD Wise option in both the product and the TV to On.
  • Page 55 • If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function. BD Data Management • In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback.
  • Page 56 • Before selecting Dolby Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
  • Page 57 Resolution according to the output mode Blu-ray Disc/E-contents/Digital Contents playback HDMI/not HDMI/connected connected Output HDMI Mode Setup VIDEO VIDEO Mode E-contents/ Mode Blu-ray Disc Digital contents BD Wise Resolution of Blu-ray Disc 1080p@60F 480i Auto Max. Resolution of TV input Max.
  • Page 58 Dolby digital Effects. bitstream or PCM. * If the Source Stream is 2ch or mono, “Re-encoded Dolby D” Setting are not applied. Output will be PCM 2ch. Blu-ray Discs may include three audio streams : - Main Feature Audio : The audio soundtrack of the main feature.

  • Page 59: Troubleshooting

    Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).
  • Page 60 • The Product is not working normally. • With no disc in the product, press and hold the product's 5 button for longer than 5 You have forgotten the rating level password. seconds. INIT appears on the display and all settings will return to the default values.
  • Page 61 If you contact us to repair your product, an administration fee may be charged if either: 1. An engineer is called out to your home at your request and there is no defect in the product. 2. You bring the unit to a repair center and there is no defect in the product.

  • Page 62: Specifications

    Reading Speed : 9.834 m/sec Reading Speed : 6.98 ~ 7.68 m/sec. DVD (Digital Versatile Disc) Approx. Play Time (Single Sided, Single Layer Disc) : 135 min. Disc Reading Speed : 4.8 ~ 5.6 m/sec. CD : 5 inches (COMPACT DISC) Maximum Play Time : 74 min.
  • Page 63 Weights Center : 1.08 Ibs, Subwoofer : 8.09 Ibs • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. • Design and specifications are subject to change without prior notice.
  • Page 64 Rovi Data only by means of the intended End User functions of this application software. - You agree that you will use the Rovi Data, the Rovi Technology, and the Rovi Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Rovi Data to any third party.
  • Page 65 (*90 Days Parts and Labor for Commercial Use) This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
  • Page 66 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT WRITE Samsung Electronics America, Inc. 1-800-SAMSUNG IN THE US www.samsung.com 85 Challenger Road Ridgefield Park, (726-7864) NJ 07660-2112 AH68-02446F-01 HT-EM53C_ZA_0316.indd 66 HT-EM53C_ZA_0316.indd 66 2012-03-16 오후 6:01:25 2012-03-16 오후 6:01:25...

This manual is also suitable for:
