Matchmaster 10MM-DTM2 Instruction Manual

10MM-DTM2
INSTRUCTION MANUAL
CONTENTS
1 General
1.1 Description
1.2 Specifications
2 Installation
2.1 Power Supply
2.1.1 Operation via External Power Supply
2.2 Connection
2.2.1 Connection Diagram Examples
2.3 Navigation and Edition of Values
3 Operating Instructions
3.1 Description of Controls and Components
3.2 Starting
3.3 Configuration Menu
3.4 Menu Tree
1 GENERAL
1.1 Description
The 14MM-DTM2 modulator is able to generate a signal in DVB-T format
(Digital Terrestrial Television) from HDMI input.
14MM-DTM2 is an H.264 encoding, DVB-T modulator device to convert 4K Pass
FHD HDMI signal to DVB-T RF out. The DTM2 is equipped with one HDMI input,
one HDMI out(with 4K pass-though) and one DVB-T RF out.
The 14MM-DTM2 module automatically adjusts the compression rate to the
available Bandwidth using the modulation DVB-T parameters.
1.2 Specifications
Source input
Input Channel 1
Video HDMI
Video System 480i/p, 576i/p, 720p, 1080i/p, 4K (3840x2160 or 4096x2160)
Audio System HDMI
Compression
Video H.264 Baseline Profile Level 4.0
Video Resolution 1080p 25 / 30 Max
Video Bit Rate 18Mbps Max
Audio MPEG-2 / AAC
Audio Bit Rate 192 Kbit/s
DVB Insertion Tables SDT, NIT
Editable Field Service Name, Network Name, Provider Name, TS ID, Network ID,
Original NET ID, LCN, NIT Version, Private Data, Country
RF Output
Type 1 Multiplex DVB-T with a digital TV service
Frequency 177–858 MHz
MER 30dB Min.
Output level 100dBµV
RF Level Adj. 0dB ~ -30dB
Attenuation step 1dB per step
Connections
HDMI In HDMI In
HDMI Out 4K Pass Through
RF Output 1 DVB-T RF output with type F female, 75 ohm
RF Input RF Combiner
PAGE 1 OF 2 | AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU
Modulation Standard
Constellation
Guard Interval
Code Rate
FFT Carriers Mode
Bandwidth
Power Supply 12V Adaptor
Display LCD panel @ 2 x 16 characters (on front panel).
Configuration 6 Local keys on front panel:
- ENTER Key: Select parameter, or menu
- L / R Keys: Move menu, or characters
- Up / down: Select value of the figure, or field
- MENU keys: Return to start menu
Environmental for Temperature range
operating Relative Humidity
Note
To be able to see the 4K signal output from HDMI OUT (HDMI Pass through)
port , the specifications requirement of connected TV listed as below:
- 4K Ultra HD (3840x2160) Resolution
- HDMI 2.0
- HDCP 2.2
- Support 4K50P/60P
- HDMI 2.0 Cable
*Specifications subject to change without prior notice.
2 INSTALLATION
2.1 Power Supply
To start using it, connect the external power supply to the 100~230V mains and
the 12V to the instrument input.
Once connected to power, the device turns on and it takes about 37 seconds to
be operational. Then the message "Keyboard Locked" appears on the display.
2.1.1 Operation via external power supply
Use only the external power adapter supplied with the instrument.
2.2 Connection
2.2.1 Connection diagram examples

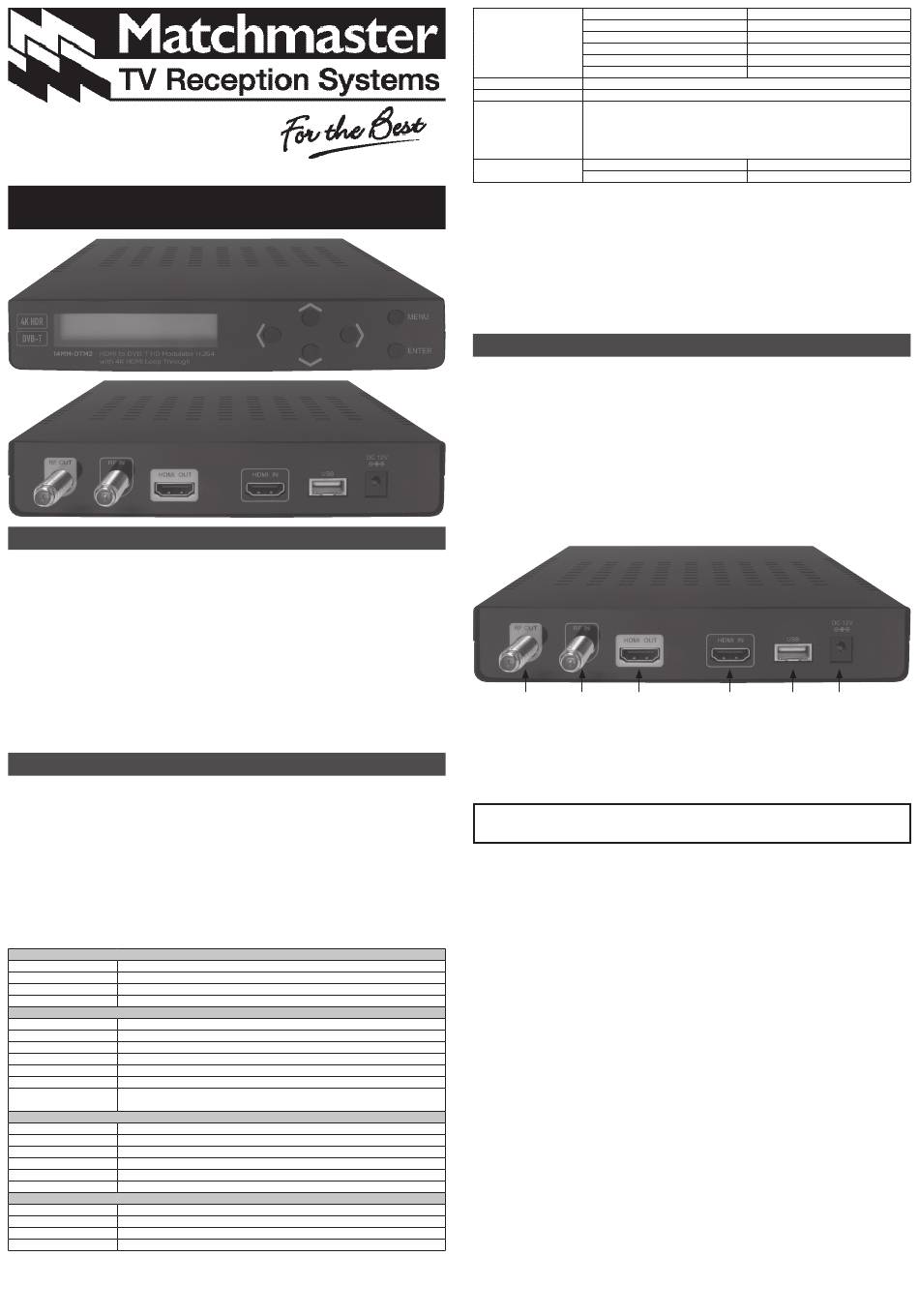

Connection diagram for one module
1 2 3
1. TV with DVB-T built in or DVB-T STB
2. RF Combiner
3. HDMI Out (4K Pass Through)
4. HDMI In (Media Device)
5. USB (S/W update)
6. DC 12V
ATTENTION! For this configuration you should use output frequencies
different from the ones that your TV is currently using.
2.3 Navigation and edition of values.
The instrument is configured through its 6 keys and front panel display. In
general, it is not necessary to configure the instrument to generate a DVB-T
signal compatible with any digital terrestrial television receiver.
Enter Button - Select parameter/menu
Left/Right Button - Move left/right between menu/characters
Up/Down Button - Increase/decrease value of the figure/field
Menu Button - Return to start menu
| NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ
DVB-T (ETSI EN 300 744)
QPSK, 16QAM, 64QAM
1/4, 1/8, 1/16, 1/32
1/2, 2/3, 3/4, 5/6, 7/8
2K, 8K
6MHz, 7MHz, 8MHz, 7-8MHz
5°C- 40°C
80% @ 30°C
4 5 6
