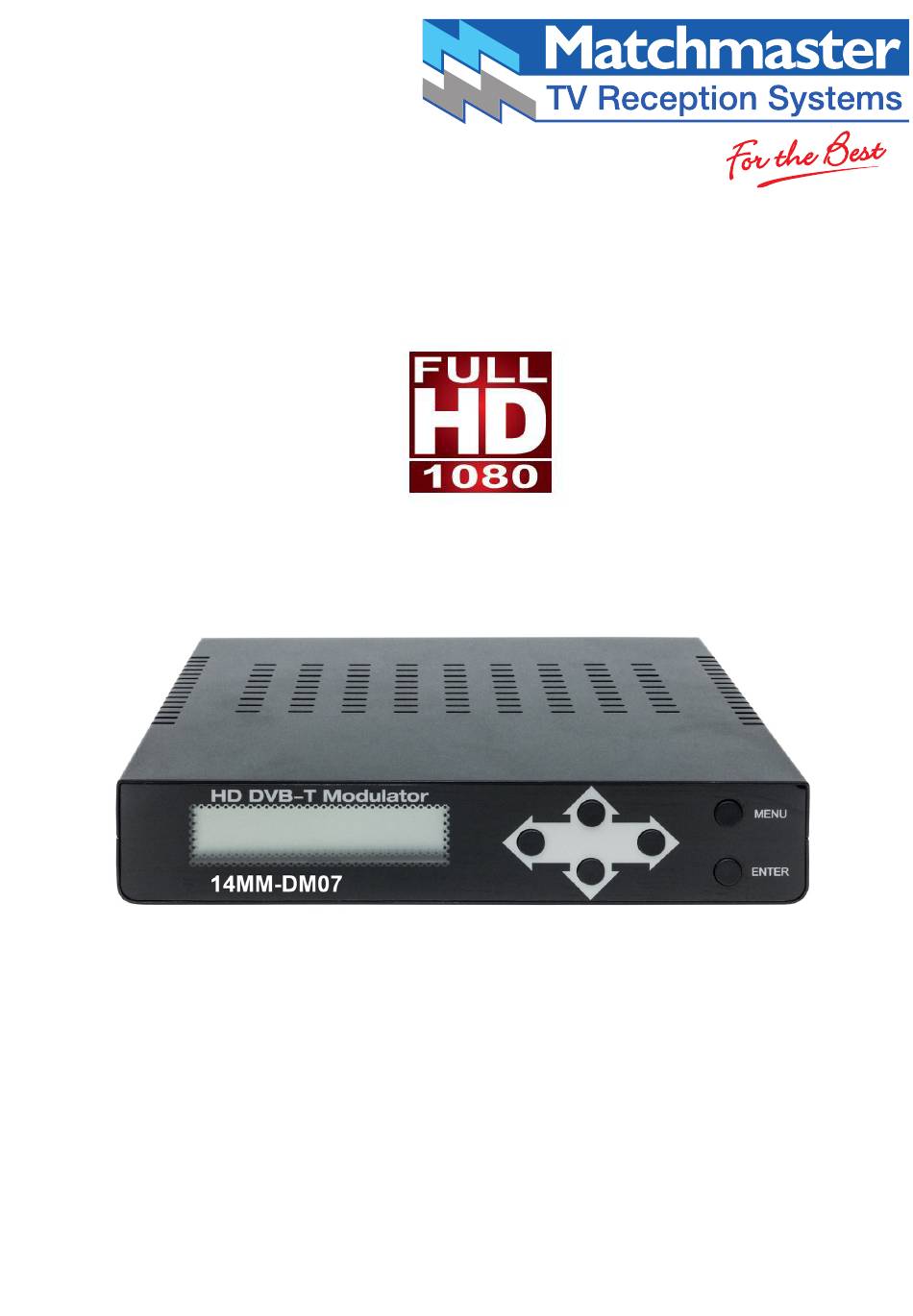

- Page 1 14MM-DM07 HDMI to DVB-T Modulator...
- Page 2 - 1 -...
-
Page 3: Table Of Contents
TABLE OF CONTENT 1 GENERAL ......................... 2 1.1 Description ....................2 1.2 Specifications ....................3 2 INSTALLATION ....................5 2.1 Power Supply ....................5 2.1.1 Operation via external power supply ............5 2.2 Connection ....................5 2.2.1 Connection diagram examples .............. 5 2.3 Navigation and edition of values. -
Page 4: General
HOME DIGITAL MODULATOR 1 GENERAL Description This modulator is able to generate a signal in DVB-T format (Digital Terrestrial Television) from an HDMI input. It is an H264 encoding, DVB-T modulation integrated device to convert HDMI signal to DVB-T RF out. It is equipped with one HDMI input, one HDMI out (HDMI pass-though) and one DVB-T RF out. -
Page 5: Specifications
Specifications Source input : ‧Input Channel ‧Video HDMI ‧Video System 480i/p, 576i/p, 720p, 1080i/p ‧Audio system HDMI Compression : ‧Video H.264 Baseline Profile Level4.0 ‧Video Resolution 1080p30 ‧Video Bit rate 12Mbps MAX ‧Audio MPEG-2 / AAC ‧Audio Bit rate 192 Kbit/S ‧DVB insertion tables SDT, NIT SERVICE NAME , Network Name , Provider Name , TS ID , NETWORK ID , ORIGINAL... - Page 6 Standard DVBT (ETSI EN 300 744) Constellation QPSK, 16QAM, 64QAM Modulation Guard Interval 1/4, 1/8, 1/16, 1/32 Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 FFT Carriers Mode 2K, 8K Bandwidth 6MHz, 7MHz, 8MHz, 7-8MHz Power Supply 12V 1.0A ADAPTOR Display LCD panel @ 2 x 16 characters (on front panel).
-
Page 7: Installation
2 INSTALLATION Power Supply To start using, connect the external power supply to the 230V mains and the 12V to the instrument input. Once connected to power, the device turns on and it takes approximately 37 seconds to be operational. When operational the message “... -
Page 8: Navigation And Edition Of Values
Navigation and edition of values. The instrument is configured through its 6 keys and front panel display. In general, it is not necessary to configure the instrument to generate a DVB-T signal compatible with any digital terrestrial television receiver, you may only need to change the output frequency to suit your local broadcast. -
Page 9: Starting
Starting After connecting power to the instrument, the message “Initial….” “Please Wait...” appears for approximately 37 seconds. Then the message “Keyboard Locked” appears. To access to the configuration menus, the user has to enter a password. Press The field “Enter Password” appears. Enter the access code. (By default: 0000). Press The field “Network Setting”... -
Page 10: Configuration Menu
Configuration menu Frequency: It sets the frequency value for the output signal. Important: Check that the selected frequency is not already being used by another service. RF Level Adj: It adjusts the power level of the output signal, in dB units. Its range from 0 to -30dB. Bandwidth: Channel bandwidth (6, 7, 8, 7 - 8 MHz). -
Page 11: Menu Tree
1/2,2/3,3/4,5/6,7/8 5 FFT Carrier 2K,8K 6 Bandwidth 7MHz 6,7,8,7-8MHz 7 RF Level ADJ. 00dB 00~-30dB Information 1 FW APP 5.1.2.3.2 1D,B0,00,03 Load Default 1 Yes,No Change Password 1 0000 AU Technical Support NZ Technical Support 237425 237425 1800-AERIAL 0800-AERIAL www.matchmaster.com.au www.matchmaster.co.nz - 10 -...
