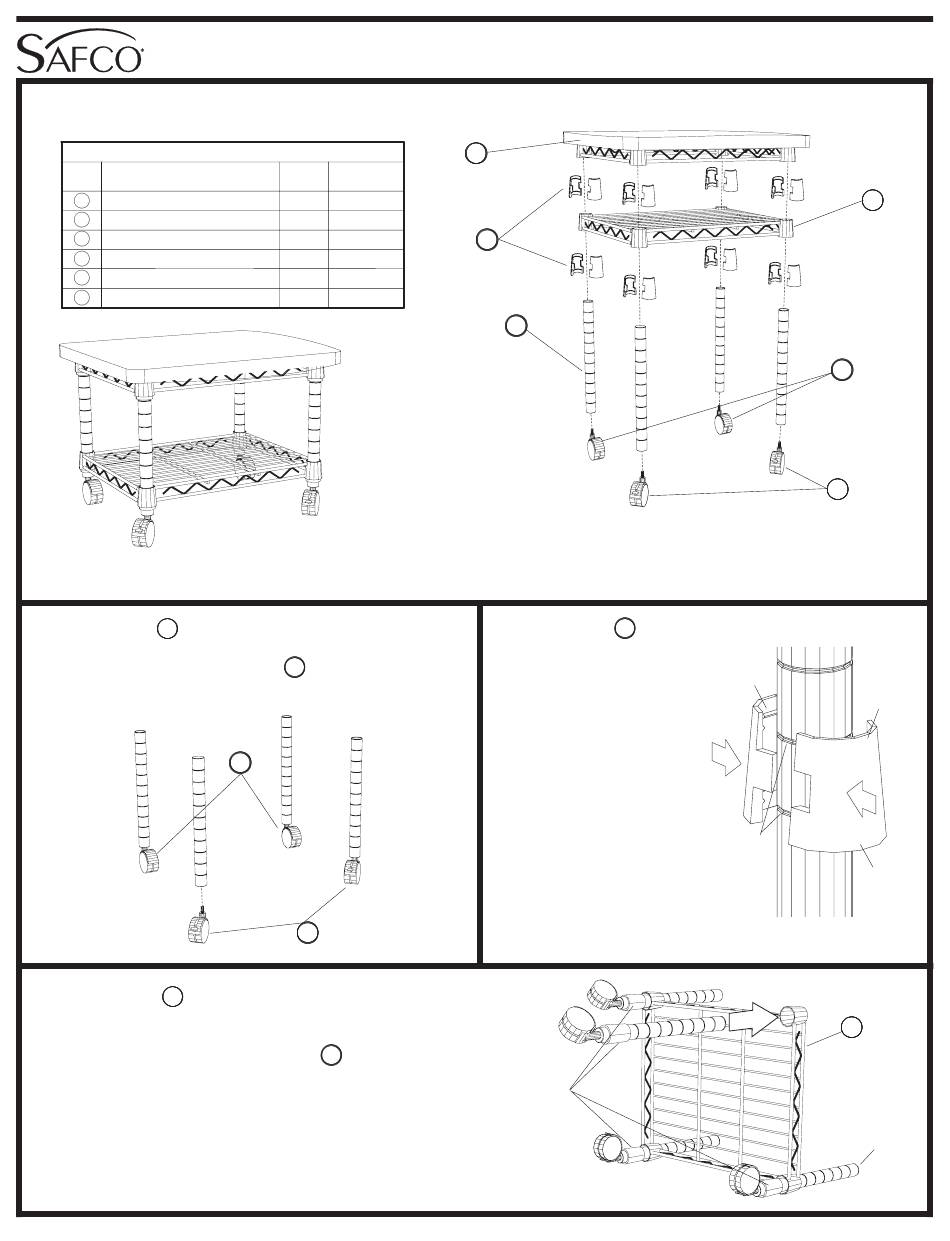

Safco 5206 Assembly Instructions

PARTS LIST
LETTER
DESCRIPTION
CODE
A
Top Shelf Assembly
B
Wire Shelf
C
Posts
D
Half-Sleeves
E
Swivel Casters
F
Swivel/Locking Casters
ASSEMBLED UNIT
1
Locate two E Swivel Casters (the ones without a
locking tab) and insert them into the bottom of two
posts. Insert each remaining F Swivel/Locking
Casters on the two remaining posts.
3
Position the B Wire Shelf on one long side.
Working from the BOTTOM side of the frame (the
bottom side has the wider cone openings), slide
the TOP end (without casters) of a C Post
through a corner hole until the connected half-
sleeves are all the way into the corner hole.
Repeat with the remaining posts.
5206-37: 1 of 2; 03/00

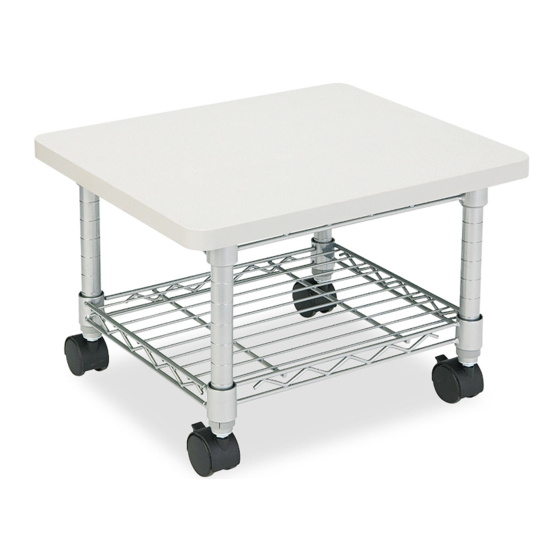

Under-Desk Printer/Fax Stand
ASSEMBLY INSTRUCTIONS
QTY. PART NO.
1 5206-01
1 5206-05
4 5206-06
16 5280-05
2 5205-25
2 5205-24
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
E
F
Safco Products Company, New Hope, MN 55428
A
D
C
(English-speaking operators)
2
Place two D Half-
Sleeves near the
bottom of each post.
Position the LARGE
ends of the sleeves
toward the BOTTOM
of the post. Slide the
inner ridges of the
sleeves into the
grooves in the post.
Press the two halves
until they snap
together. The half-
sleeves must be at
the same level on
each post.
CONNECTED
HALF-SLEEVES
MODEL
5206
NUMBER
B
E
F
RIDGE
SMALL
END
GROOVE
LARGE
END
B
POST
(TOP
END)
