TOOLS REQUIRED: Screwdriver
PARTS LIST
LETTER
DESCRIPTION
CODE
Caster
o
A
Base Grid
o
B
Screw
o
C
Nut
o
D
L-Shaped Grid
o
E
o
Front Grid
F
Large Grid
o
G
Metal Clip
o
H
Outer Support Bar
o
I
Dust Guard
o
J
Small Grid Divider
o
K
Large Grid Divider
o
L
o
o
A
3084-37: Rev. 1; 1 of 3; 7/97

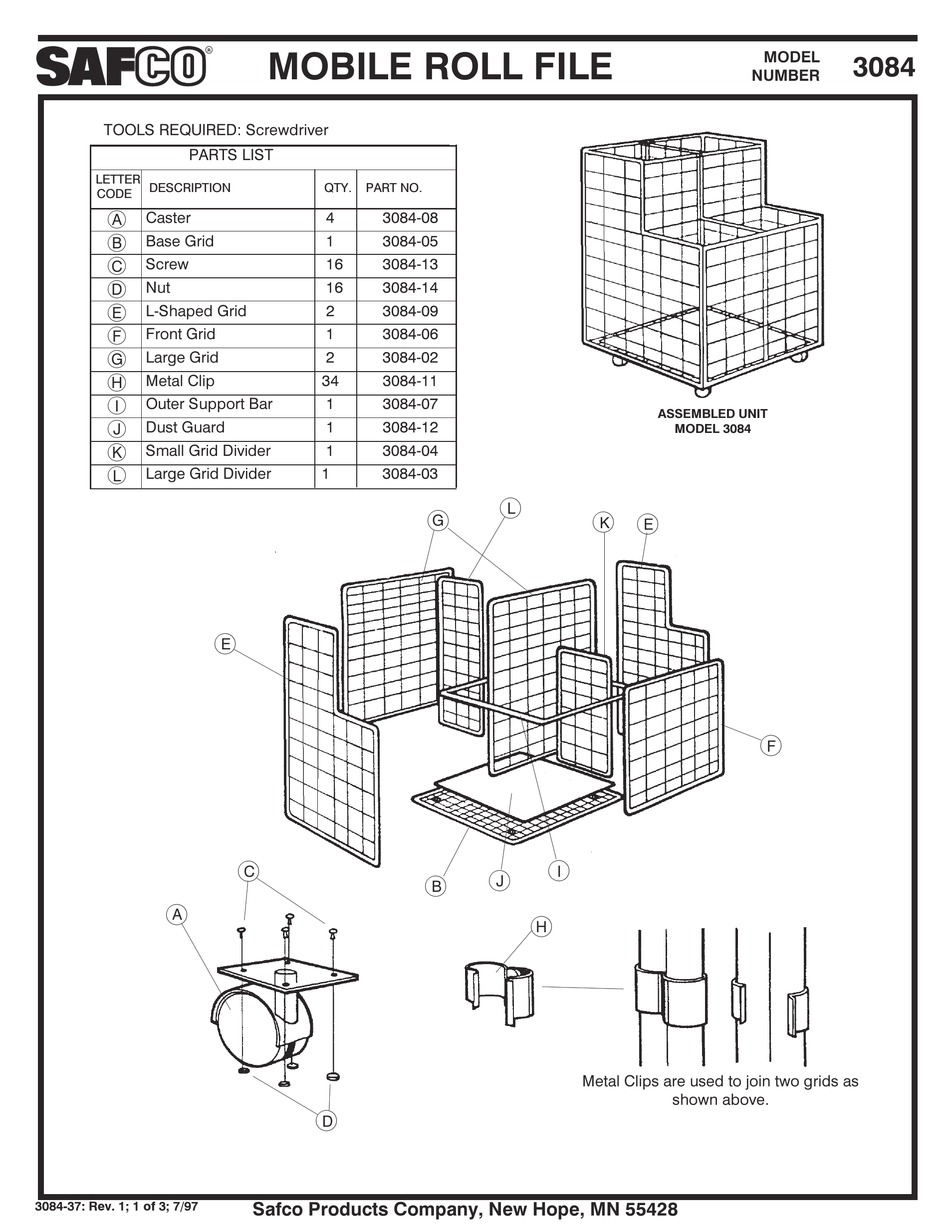

MOBILE ROLL FILE
QTY.
PART NO.
4
3084-08
1
3084-05
16
3084-13
16
3084-14
2
3084-09
1
3084-06
2
3084-02
34
3084-11
1
3084-07
1
3084-12
1
3084-04
1
3084-03
E
o
C
o
D
Safco Products Company, New Hope, MN 55428
o
L
o
o
G
K
o
I
o
J
o
B
o
H
Metal Clips are used to join two grids as
MODEL
NUMBER
ASSEMBLED UNIT
MODEL 3084
o
E
o
F
shown above.
3084
