Njoy UPAC-MBUSCRD-AZ01B User Manual

Modbus card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Modbus card
UPAC-MBUSCRD-AZ01B
User manual
388.44.23.0
Before using this product, carefully read all product documentation and retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPAC-MBUSCRD-AZ01B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Njoy UPAC-MBUSCRD-AZ01B

Summary of Contents for Njoy UPAC-MBUSCRD-AZ01B

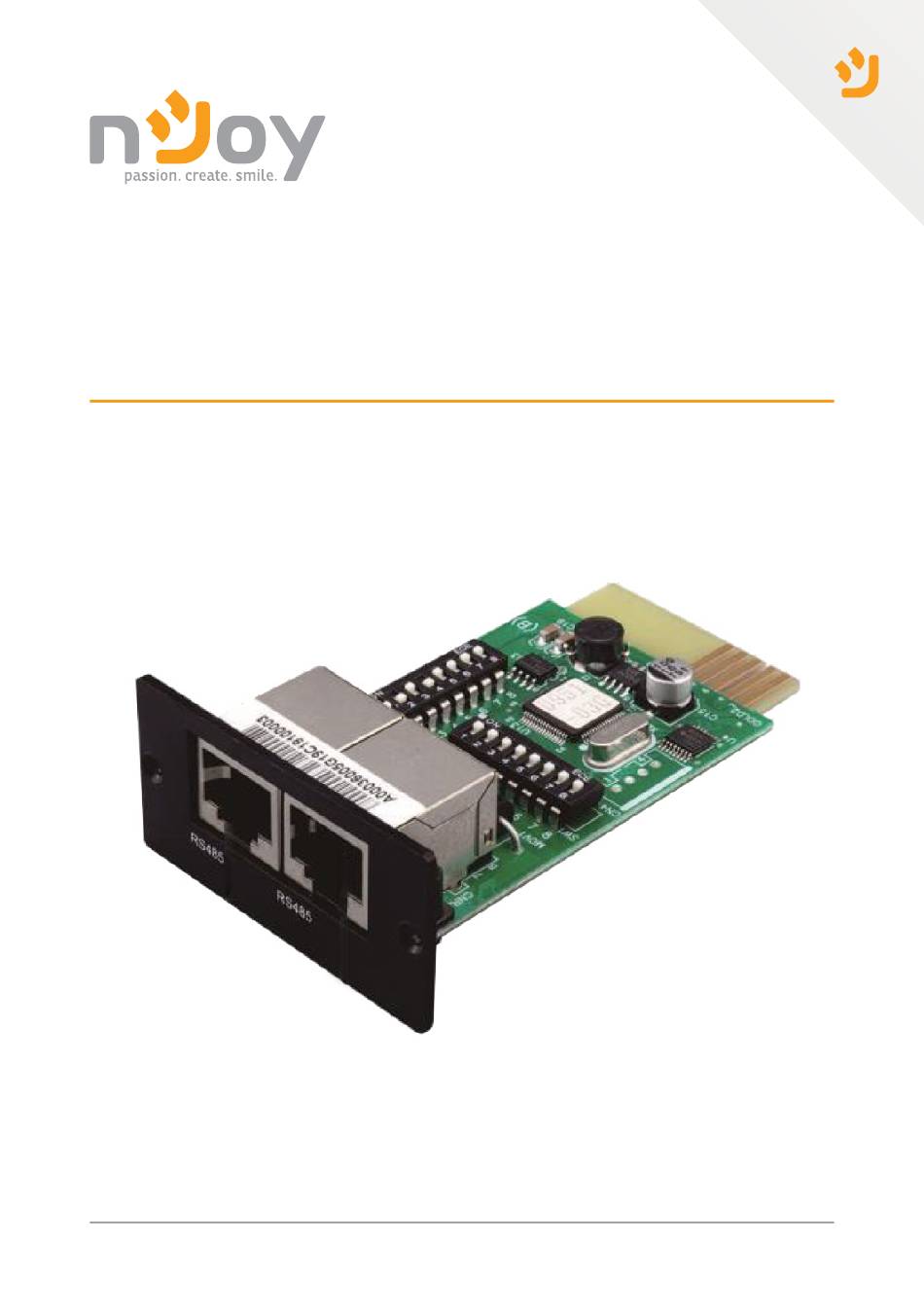

  • Page 1 Modbus card UPAC-MBUSCRD-AZ01B User manual 388.44.23.0 Before using this product, carefully read all product documentation and retain it for future reference.

  • Page 2: Table Of Contents

    Table of contents 1. Package contents ................3 2. Product overview ................4 3. Product Introduction ..............4 4. Installation and Operation ............5 5. Configuration ................... 5 5.1 Machine ID Configuration ............5 5.2 Communication Format Configuration ........5 5.3 RS-485 Resistance Configuration ..........6 5.4 Interface Configuration ...............6 5.5 Connection ..................6 6.

  • Page 3: Package Contents

    Thank you for purchasing our products! Please read this manual before using the product. nJoy is a brand of power and backup protection products that create solutions for multiple levels of environment complexity, residential to industrial. A Modbus card is a hardware component that allows electronic devices or systems to communicate using the Modbus protocol.

  • Page 4: Product Overview

    NOTE! If any of the above package content is missing or is damaged please contact the shop where you have bought the product from. • If the card must be stored prior to installation; storage must be in a dry place. •...

  • Page 5: Installation And Operation

    Installation and Operation Follow below steps to install and use this modbus card: 1. Configure Modbus ID (Refer to section 5.1 for the details) 2. Configure communication format (Refer to section 5.2 for the details) 3. Insert this modbus card into intelligent slot 4.

  • Page 6: Rs-485 Resistance Configuration

    5.3 RS-485 Resistance Configuration Function Setting Meaning Enable (Default) Push up resistance Disable Enable (Default) Pushdown resistance Disable Enable (Default) Terminate resistance Disable 5.4 Interface Configuration RS-485 Pin Configuration Function RS-485 - B RS-485 - A 5.5 Connection First, please use one RS485 to RS232 converter or RS-485 to Modbus/TCP converter as media converter between Modbus card and computer.

  • Page 7: Multiple Monitoring

    Then, follow below diagram to connect personal computer: Use RS-485 to Modbus/TCP converter Using RS-485 to RS-232 converter Using RS-485 to PLC converter Multiple Monitoring One modbus card only can be used in one UPS at the same time. When each UPS installed with one modbus card, up to 31 UPSs can be monitored from one computer.
  • Page 8 APPENDIX: Machine ID Configuration Table (SW1) √=ON ×=OFF Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 8 × × × × × × × × × × × × × × × × ×...
  • Page 9 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 10 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 11 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 12 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 13 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 14 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

  • Page 15: Continut Pachet

    Vă rugăm citiți manualul de utilizare înainte de a pune în funcțiune acest produs. nJoy este un brand de solutii UPS dedicate protectiei si rezervei de energie din diferite medii de utilizare, de la rezidential la industrial. Un card Modbus este o componentă hardware care permite dispozitivelor sau sistemelor electronice să...

  • Page 16: Prezentare Produs

    NOTA! Dacă oricare dintre conținutul pachetului de mai sus lipsește sau este deteriorat, vă rugăm să contactați magazinul de unde ați cumpărat produsul. • Dacă cardul trebuie depozitat înainte de instalare pastrati-l într-un loc uscat. • Intervalul de temperatură de depozitare acceptat este de la -10ºC la +70ºC. Prezentare produs Port RS-485 Conexiune electrica (placata cu aur)

  • Page 17: Instalarea Si Operarea

    Instalarea si operarea Urmați pașii de mai jos pentru a instala și utiliza cardul modbus: 1. Configurați ID Modbus (Consultați secțiunea 5.1 pentru detalii). 2. Configurați formatul de comunicare (Consultați secțiunea 5.2 pentru detalii). 3. Introduceți cardul modbus în slotul inteligent. 4.

  • Page 18: Configurare Rezistenta Rs-485

    5.3 Configurare rezistenta RS-485 Functie Setare Semnificatie Pornit (implicit) Rezistenta impingere sus Oprit Pornit (implicit) Rezistenta impingere jos Oprit Pornit (implicit) Opriți rezistența Oprit 5.4 Configurare interfata Configurare pin RS-485 Functie RS-485 - B RS-485 - A 5.5 Conexiunea În primul rând, vă rugăm să utilizați un convertor RS485 la RS232 sau un convertor RS-485 la Modbus/TCP ca un convertor media între cardul Modbus și computer.

  • Page 19: Monitorizare Multipla

    Folositi diagrama de mai jos pentru conexiune ala PC: Use RS-485 to Modbus/TCP converter Using RS-485 to RS-232 converter Using RS-485 to PLC converter Monitorizare multipla Un singur card Modbus se utilizează cu un singur UPS. Fiecare UPS va utiliza cardul sau propriu Modbus, se pot monitoriza 31 de UPS de la un singur PC.
  • Page 20 ANEXĂ: Tabelul de configurare a ID-ului Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 8 × × × × × × × × × × × × × × × × × × ×...
  • Page 21 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 22 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 23 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 24 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 25 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
  • Page 26 Memo...
  • Page 27 Dezafectarea echipamentelor electrice și electronice vechi (Se aplică pentru ţările membre ale Uniunii Europene și pentru alte țări europene cu sisteme de colectare separată). Acest simbol aplicat pe produs sau pe ambalajul acestuia indică faptul că acest produs nu trebuie tratat ca pe un deșeu menajer. El trebuie predat punctelor de reciclare a echipamentelor electrice și electronice.
