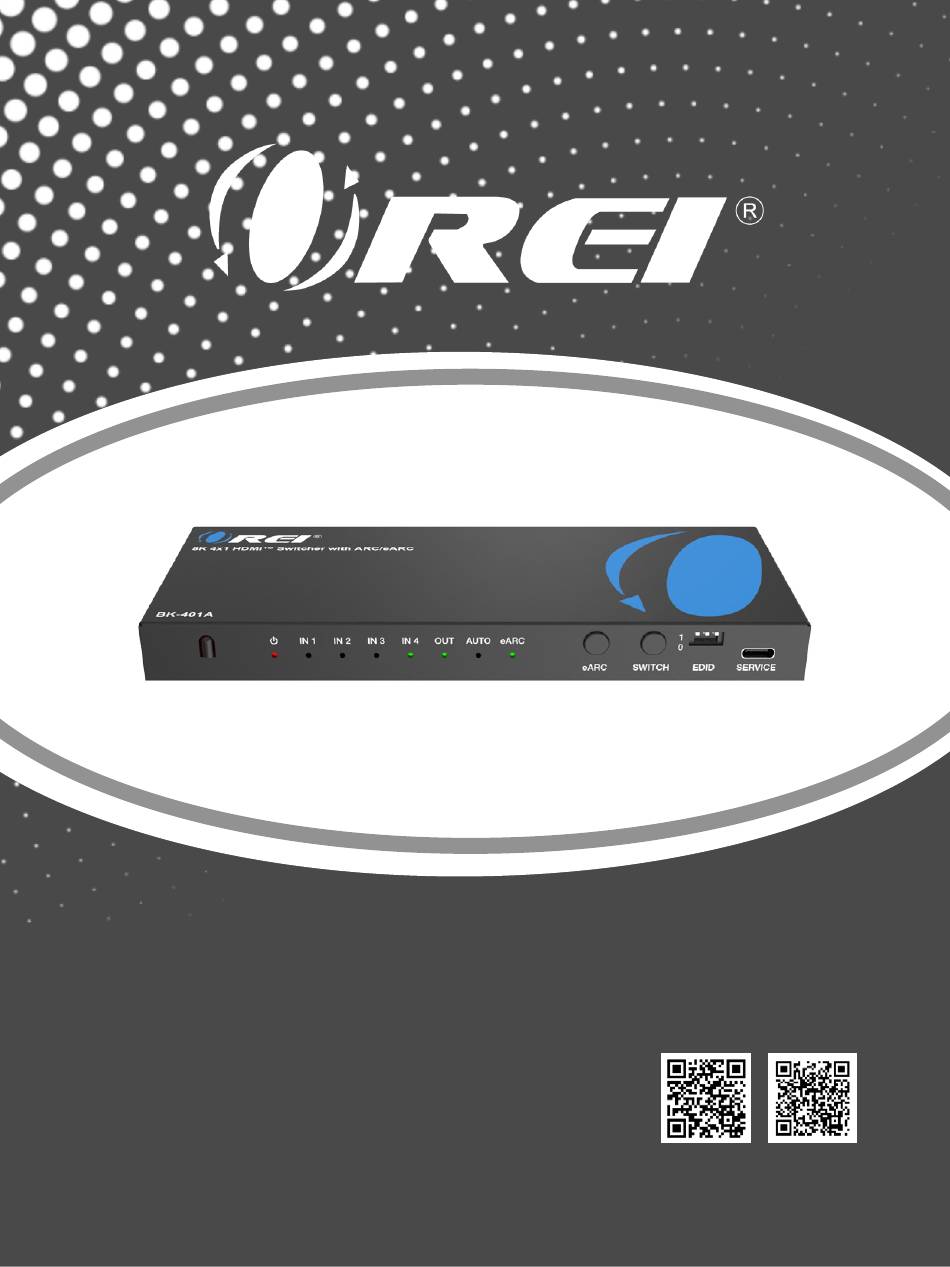

- Page 1 BK-401A 8K 4x1 HDMI Switcher Follow us on Youtube and Facebook with ARC/eARC US ER MANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The BK-401A HDMI Switch can take up to 4 media sources and allow you to connect them to a single display and switch between them with ease. The device supports video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit. The device supports CEC control and eARC features. -
Page 5: Features
5. VRR, ALLM, QMS, QFT and SBTM support 6. CEC Control: Control the soundbar and input devices through the TV remote. 7. Advanced EDID Management 8. Plug and play setup Package Contents BK-401A Switch 1pcs IR Remote 1pcs 5V/1A Power Adapter 1pcs... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Audio Latency No Latency Video Latency No Latency Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, Video Resolution 4K@120Hz 4:4:4 12bit Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12bit... - Page 7 Specifications Connection Input 4 × HDMI IN [Type A, 19-pin female] 1 × HDMI OUT [Type A, 19-pin female] Output 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] Control 1 × SERVICE [USB Type C, Update port] Mechanical Housing Metal Enclosure Color...
-
Page 8: Operation Controls And Functions

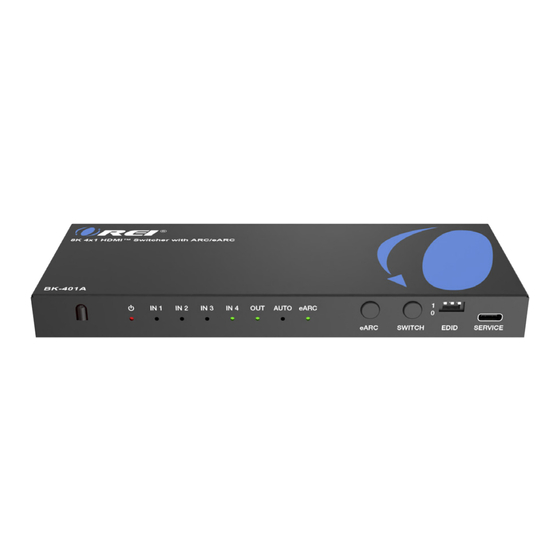

Operation Controls and Functions Front Panel IN 1 IN 2 IN 3 IN 4 AUTO eARC eARC SWITCH EDID SERVICE Name Function Description IR window IR signal receiving window. Power LED The Red LED will light up when the device is powered on. IN 1/2/3/4 The corresponding Green LED will light up when the respec- tive input source is selected. - Page 9 Operation Controls and Functions Name Function Description Use the DIP switch to set EDID. 111 - Copy OUT port sink EDID (as default) 110 - Video EDID copy sink EDID, Audio EDID Copy soundbar EDID 101 - FRL 12G_8K_HDR, Audio 2ch PCM EDID DIP 100 - FRL 12G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY switch...
-
Page 10: Ir Remote
Operation Controls and Functions & IR Remote Name Function Description OUT (eARC) Connect a HDMI display device such as a TV, Projector, etc. OPTICAL Optical fiber audio output port. Analog audio output port. DC 5V Connect the included power adapter IR Remote eARC: Press this button to turn on/off ARC/eARC function. -
Page 11: Application Example
Application Example Situation 1 When the ARC/eARC function is turned off, the connection is as fol- lowing. In this situation, the Optical and L/R audio outputs will output audio from the selected media device. IN 1(eARC) IN 2 IN 3 IN 4 OUT(eARC) DC 5V... - Page 12 Application Example In this situation, the Optical and L/R audio outputs will output audio from the TV. IN 1(eARC) IN 2 IN 3 IN 4 OUT(eARC) DC 5V Power Supply Soundbar 2.0 Speakers 8K TV Audio Amplifier Note: 1. If the 8K TV supports ARC/eARC function, the Soundbar will receive the audio signal returned from the TV, and then emit the sound;...
- Page 13 Application Example Situation 3 When the ARC/eARC function is turned on, select the input port 2/3/4 by pressing the “SWITCH” button on the front panel or the buttons on the IR remote. If you connect the “IN 1(eARC)” port to a Soundbar now, it will output the audio signal from the selected input channel.
-
Page 14: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What is the maximum length of the HDMI outputs? We recommend using High Quality HDMI cables under 30 feet. 2. Can I use a Capture Card to record games from my PlayStation or Xbox? Our devices are HDCP compliant and will not work with capture cards. 3. - Page 15 Application Example 7. Audio outputs not working Please check the audio output format from the source. The audio format from the source should match the capabilities of the audio outputs. (Refer Page 06) Still have some questions? Please feel free to contact us at: info@orei.com. OR Fill out the form on the ‘Contact Us’...
- Page 16 8K 4x1 HDMI Switcher with ARC/eARC BK-401A www.orei.com © 2024...
