REI HDS-402MV User Manual

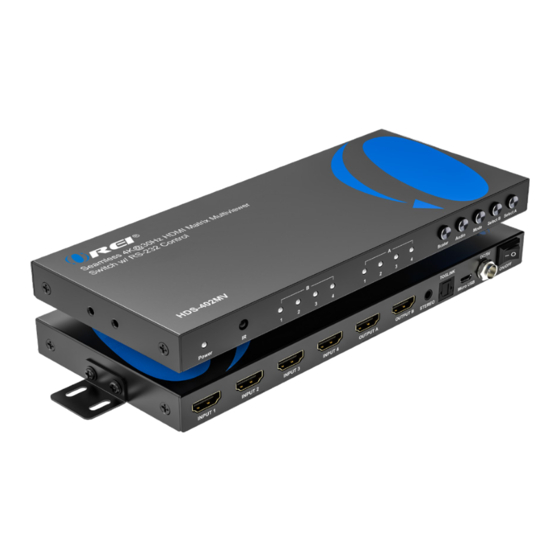

Seamless 4k 30hz hdmi matrix multiviewer switch w/ rs-232 control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Seamless 4K@30Hz HDMI Matrix
Multiviewer Switch w/ RS-232 Control
US E R M ANUA L
HDS-402MV
Follow us on Youtube
and Facebook
www.orei.com
page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS-402MV and is the answer not in the manual?

Questions and answers

Related Manuals for REI HDS-402MV

Summary of Contents for REI HDS-402MV

  • Page 1 HDS-402MV Seamless 4K@30Hz HDMI Matrix Follow us on Youtube and Facebook Multiviewer Switch w/ RS-232 Control US E R M ANUA L www.orei.com page 1...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features & Package Contents Specifications Ports and Interfaces Special Function Description RS-232 Connection Protocol Micro USB Port Help Command ( H ) . Returns Entire API in Readable Format Status Command (STA). Returns Unit Status and Settings in Readable Format Connection Diagram Troubleshooting Thank you for purchasing this product...
  • Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email or chat with us now.

  • Page 4: Introduction

    The power-off memory function retains the last setup when the device is restarted. Features versatile control through the front panel, the included remote, or RS-232. The HDS-402MV is the perfect device for various security and multimedia applica- tions.

  • Page 5: Features & Package Contents

    4. Features seamless switching 5. Multi-resolution output 6. Built in Scaler to upscale and downscale resolution 7. Features Aspect ratio change and PIP functions 8. Control via front panel, IR Remote and RS-232 Package Contents HDS-402MV 1pcs Remote Control 1pcs Power Adapter 1pcs...

  • Page 6: Specifications

    Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps 4K@24/25/30Hz, 1080P@50/60Hz, 720P@50/60Hz Video Resolution up to 480p Color Depth Support 8/10/12/16 bits color depth RGB/YCbCr444/YCbCr422/yCbCr420(only support Color Space input) Audio Formats LPCM/AC3/DTS contact discharge (±4KV), air discharge (±8kv), ESD Protection lmplementation of the standard: IEC61000-4-2...
  • Page 7 Specifications Mechanical Housing Metal Enclosure Color Black Dimensions 215mm [L] x 90mm [W] x 18mm [H] Weight 450g / 15.8oz Input: AC 100-240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption ≤ 2W Operating Operating Temperature: 0°C to 70°C Temperature Storage Temperature Storage Temperatur: -10°C-80°C...

  • Page 8: Ports And Interfaces

    Ports and Interfaces Remote Control Name Function Description Power Power standby/power on Mute Mute the audio output Press the button 1~4 to select the appropriate source for Output A Output A Page 08...
  • Page 9 Ports and Interfaces Name Function Description Press the button 1~4 to select the appropriate source Output B for Output B Press the button to switch between different Multiview Mode modes When in PIP mode, press this button to cycle between different positions of the PIP window Press this button to copy the Output A display model COPY...
  • Page 10 Ports and Interfaces 17 18 19 20 21 10 11 Name Function Description INPUT 1-4 HDMI Input1-4 port OUTPUT A-B HDMI Output A/B port STEREO Stereo Audio Output TOSLINK Toslink Digital Audio Output Firmware Update port for factory reset and RS-232 10.
  • Page 11 Ports and Interfaces Name Function Description 15. B 1-4 Input1-4 LED Indicator for OUTPUT B 16. A 1-4 Input1-4 LED Indicator for OUTPUT A HDMI output resolution 1080p/1600P/4K@30Hz switch 17. SCALER button 18. AUDIO Audio channel output select button Press the button to change display mode as 2x2 four equal picture-IN1/IN2 left/right picture - IN1/IN2 up/ 19.

  • Page 12: Special Function Description

    Special Function Description 1. For 2x2 four equal picture mode, the four HDMI input sourc- es are displayed in 2x2 on one screen, press mode key once and it will be displayed with the below in default: Press (modify key) + numerical key N (N=1, 2, 3, 4), these different numbers means different mode (The user can choose the mode he desires within 5s after pressing the ‘modify’...
  • Page 13 Special Function Description Press (modify key) + numerical key 2, then the output pictures will be: Press (modify key) + numerical key 3, then the output pictures will be: Press (modify key) + numerical key 4, then the output pictures will be: 2.
  • Page 14 Special Function Description Press (modify key) + numerical key N (N=1, 2, 3, 4) + numeri- cal key M (N=1, 2, 3, 4, N≠M), these different numbers means dif- ferent input source, N means to choose the left output picture input source, M means to choose the right output picture input source (The user can choose the mode he desires within 5s after pressing the ‘modify’...
  • Page 15 Special Function Description Press (modify key) + numerical key 2+ numerical key 1/3/4, then the output pictures will be: Press (modify key) + numerical key 3+ numerical key 1/2/4, then the output pictures will be: Press (modify key) + numerical key 4+ numerical key 1/2/3, then the output pictures will be: 3.
  • Page 16 Special Function Description Press (modify key) + numerical key N+ numerical key M (N, M=1, 2, 3, 4, N≠M), these different numbers means different input source, N means to choose the up output picture input source, M means to choose the down output picture input source (The user can choose the mode he desires within 5s after pressing the ‘modify’...
  • Page 17 Special Function Description Press (modify key) + numerical key 2 and numerical key 1/3/4, then the output pictures will be: Press (modify key) + numerical key 3 and numerical key 1/2/4, then the output pictures will be: Press (modify key) + numerical key 4 and numerical key 1/2/3, then the output pictures will be: Page 17...
  • Page 18 Special Function Description Press (modify key) + numerical key N (N=1, 2, 3, 4), these different numbers means different mode, N means to choose the up output picture, M means to choose the down output pic- ture (The user can choose the mode he desires within 5s after pressing the ‘modify’...
  • Page 19 Special Function Description Press (modify key) + numerical key 3, the output picture will be: Press (modify key) + numerical key 4, the output picture will be: Press PIP+ (modify key) + numerical key N+ numerical key M (N, M=1, 2, 3, 4, N≠M), these different numbers means different input source, N means to choose the main output picture input source, M means to choose the small output picture input source (The user can choose the mode he desires within 5s after...
  • Page 20 Special Function Description Press PIP+ (modify key) + numerical key 1+ number 2/3/4, the output picture will be: Press PIP+ (modify key) + numerical key 2+ number 1/3/4, the output picture will be: Press PIP + (modify key) + numerical key 3+ number 1/2/4, the output picture will be: Page 20...
  • Page 21 Special Function Description Press PIP + (modify key) + numerical key 4+ number 1/2/3, the output picture will be: Note: Press the key PIP to cycle control the location of the PIP small windows shown as below: When the PIP small picture location is changed, the modify input function is remain working as upon combination key control.

  • Page 22: Rs-232 Connection Protocol

    RS-232 Connection Protocol Baud Rate = 57,600 bits per second as default Data Bits = 8 Stop Bits = 1 Parity = None Flow Control = None Notes: 1. Carriage Return is required at end of each string 2. Commands are not case-sensitiveSpaces are shown for clarity : commands should NOT have any spaces 3.

  • Page 23: Micro Usb Port

    Micro USB Port Micro USB port used for configuration and control from third-party control terminals Used for firmware updates Supports USB driver for Windows 8.1/10/11 , Mac OS 10.10 above Will register as CDC Config Series Port in Device Manag- er.

  • Page 24: Help Command ( H ) . Returns Entire Api In Readable Format

    Help Command ( H ) . Returns Entire API in Readable Format Help Command ( H ) . Returns entire API in readable format : ----------------------------------------------------------------------------------------------------------- Systems HELP ----------------------------------------------------------------------------------------------------------- -- 4PET0401QMS F/W Version : 1.00 -- -- H: Help -- PF: Power Off -- PN: Power ON -- STA: Show Global System Status -- Video Output Setup Commands: yy = [01-04,U,D]...
  • Page 25 Help Command ( H ) . Returns Entire API in Readable Format -- Picture; x=[1,2,3,4], y=[1,2,3,4] -- SPOA PIP x y: Set Output A to two Video Input Main x/small y PIP -- mode -- SPOA PIP ROTATE: Set the PIP Mode Small Picture Location from Right -- Down Corner-Left Down corner- Left Up Corner-Right Up Corner -- SPOA SCALER ROTATE: Set the OutputA Resolution from -- 4K30/2560x1600p/1080p circularly...

  • Page 26: Status Command (Sta). Returns Unit Status And Settings In Readable Format

    Status Command (STA). Returns Unit Status and Settings in Readable Format Status Command (STA). Returns unit status and settings in readable format: #if HDMI input 2 is disconnected. ----------------------------------------------------------------------------------------------------------- Systems STATUS ----------------------------------------------------------------------------------------------------------- Device Name: 4PET0401QMS_0001 -- -- 4PET0401QMS, -- F/W Version: 1.00 -- Power: ON -- Front Panel Button : Enabled -- RS232: Baud Rate=57600bps, Data=8bit, Parity=None, Stop=1bit...

  • Page 27: Connection Diagram

    Connection Diagram Page 27...

  • Page 28: Troubleshooting

    Troubleshooting Problems Causes Solutions Power light Is the power adapter Please check if the power is off and properly connected adapter is connected product is and the power on/off properly and turn on not working; button is on turn on the power on/off button;...
  • Page 29 Seamless 4K@30Hz HDMI Matrix Multiviewer Switch w/ RS-232 Control HDS-402MV www.orei.com © 2023 page 29...
