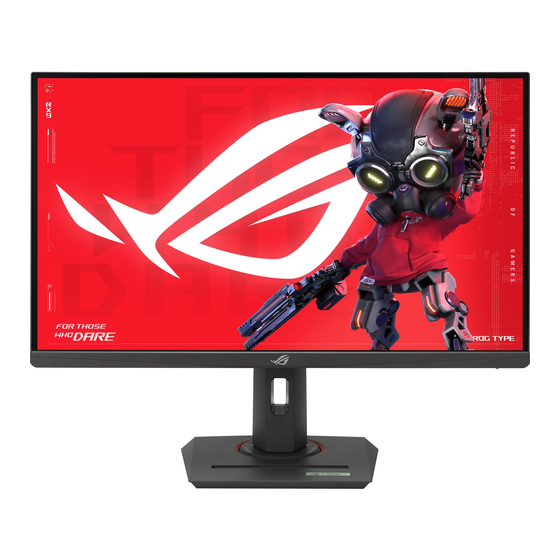

Asus ROG STRIX XG27UCG User Manual
Asus ROG STRIX XG27UCG User Manual

Asus ROG STRIX XG27UCG User Manual

Gaming lcd monitor

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROG STRIX XG27UCG and is the answer not in the manual?

Questions and answers

Summary of Contents for Asus ROG STRIX XG27UCG

  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Table Of Contents

    Contents Notices ......................iv Safety information ..................v Care & Cleaning ..................vii Takeback Services ..................viii Product information for EU energy label ..........viii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front/side view ..............
  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 5: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 6 Prevent Tipping When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Cord or chain • Display design may differ from those illustrated. •...
  • Page 7: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
  • Page 8: Takeback Services

    About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 9: Welcome

    Welcome! Thank you for purchasing the ROG gaming monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...
  • Page 10: Monitor Introduction

    Monitor introduction 1.3.1 Front/side view 5-way) button: • Turns on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/ right. • Turns on the OSD menu when the monitor enters standby mode or displays the “NO SIGNAL“...
  • Page 11: Back View

    USB 3.2 Gen 1 Type-C (supports DP Alt mode). This port is for connection with a DisplayPort/USB Type-C compatible device. This port is also for connection with a USB Type-C cable, which supports USB power delivery (depending on the signal source). ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 12: Other Function(S)

    The monitor is Super-Speed USB 3.2 Gen 1 compatible (5Gbps). The port offers 15W power delivery with output voltage of 5V/3A. Earphone jack. This port is only available when an HDMI/DisplayPort/USB Type-C cable is connected. Kensington lock slot. Control buttons. 1.3.3 Other Function(s) •...
  • Page 13: Assembling The Monitor Arm/Base

    Base screw size: M6 x 15 mm. Cable management You can organize the cables with the help of the cable management hole. • Arranging the cables • Using the input/output port cover: the cover can be attached or detached. ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 14: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •...
  • Page 15: Detaching The Arm (For Vesa Wall Mount)

    • The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm) ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 16: Connecting The Cables

    When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. • To use the earphone: connect the audio cable to the monitor’s earphone jack.
  • Page 17: Osd (On-Screen Display) Menu

    ) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the button or move the ) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-3. ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 18: Osd Function Introduction

    3.1.2 OSD function introduction Gaming GameVisual Input Select ROG STRIX XG27UCG Racing Mode DisplayPort 3840x2160 160Hz Frame Rate Boost Gaming Variable OD Variable Refresh Rate Image ELMB Setup GamePlus Color GameVisual Shadow Boost Input Select ASUS DisplayWidget Center Lighting Effect...
  • Page 19 In the MOBA Mode, the following function(s) are not user-configurable: • Shadow Boost, VividPixel, Dynamic Dimming, Saturation, Six-axis Saturation. In the sRGB Mode, the following function(s) are not user-configurable: • Shadow Boost, Color, Contrast, Dynamic Dimming, ASCR. ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 20 This function is only available in RTS/RPG Mode, Mode, Night Vision User Mode. • ASUS DisplayWidget Center: Displays a QR code for you to access the information about ASUS DisplayWidget Center. Image GameVisual Input Select ROG STRIX XG27UCG Racing Mode DisplayPort...
  • Page 21 Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter reduces 70% (max.) harmful blue light to avoid CVS (Computer Vision Syndrome). ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 22 Color GameVisual Input Select ROG STRIX XG27UCG Racing Mode DisplayPort 3840x2160 160Hz Display Color Space Gaming Color Temp. Saturation Image Six-axis Saturation Gamma Color Input Select Lighting Effect Volume Back Enter Exit • Display Color Space: Selects the color space for the monitor color output.
  • Page 23 Available function choices: GamePlus, Frame Rate Boost, GameVisual, Variable OD, Brightness, Mute, Shadow Boost, Contrast, Input Select, HDR Setting, Blue Light Filter, Color Temp., Volume (Earphone Out), Customized Setting-1, Customized Setting-2. • Customized Setting: ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 24 Setting 1/Setting 2: Loads/Saves all settings on the monitor. System Setup GameVisual Input Select ROG STRIX XG27UCG Racing Mode DisplayPort 3840x2160 160Hz Language MyFavorite Sound Power Indicator System Setup Power Key Lock Key Lock Power Setting OSD Setup DisplayPort Stream...
  • Page 25: Aura

    Aura function, you need to re-connect the USB 3.2 Gen 1 upstream port of the monitor to the computer and then restart the computer. • Visit https://rog.asus.com/innovation/armoury_crate/ for more details. ROG STRIX XG27UCG Series Gaming LCD Monitor...
  • Page 26: Specifications Summary

    3.2 Specifications summary Panel type TFT LCD Panel size 27”W (68.5 cm) wide screen Max. resolution 3840 x 2160 Pixel pitch 0.155 mm x 0.155 mm Brightness (Typ.) 350 cd/m ; 400 cd/m (HDR peak) Contrast ratio (Typ.) 1000:1 Viewing angle(H/V) CR>10 178˚/178˚...
  • Page 27 Adaptive Sync, WHQL Windows 10/11, TUV Flicker free, TUV Low Blue Light, EU Energy label *Specifications are subject to change without notice. **Measuring a screen brightness of 200 nits without audio/USB/Card reader connection. ROG STRIX XG27UCG Series Gaming LCD Monitor 3-11...
  • Page 28: Outline Dimensions

    3.3 Outline dimensions 3-12 Chapter 3: General Instructions...
  • Page 29: Troubleshooting (Faq)

    • Turn off the monitor by disconnecting the power cord and then turn on the monitor. • Reactivate the HDR function on your device. ROG STRIX XG27UCG Series Gaming LCD Monitor 3-13...
  • Page 30: Supported Operating Mode

    3.5 Supported operating mode When Frame Rate Boost is OFF: Aspect Control Resolution 640 x 480 60Hz 640 x 480 75Hz 800 x 600 60Hz 800 x 600 75Hz 1024 x 768 60Hz 1024 x 768 75Hz 1280 x 1024 60Hz 1280 x 960 60Hz Fill Up 1280 x 720 59.94Hz/60Hz 1600 x 1200 60Hz...
  • Page 31 1024 x 768 160Hz 1152 x 864 160Hz (DisplayPort/USB Type-C) 1280 x 960 160Hz 1440 x 1080 160Hz 1728 x 1080 160Hz 1920 x 1440 160Hz 2880 x 2160 160Hz (DisplayPort/USB Type-C) ROG STRIX XG27UCG Series Gaming LCD Monitor 3-15...
  • Page 32 Video Timings Aspect Control Resolution 3840 x 2160p 119.88/120Hz 3840 x 2160p 100Hz 3840 x 2160p 59.94Hz/60Hz 3840 x 2160p 50Hz 3840 x 2160p 29.97Hz/30Hz 3840 x 2160p 25Hz 3840 x 2160p 23.98Hz/24Hz 1920 x 1080p 119.88/120Hz 1920 x 1080p 100Hz Fill Up 1920 x 1080p 59.94Hz/60Hz 1920 x 1080p 50Hz...
  • Page 33 1920 x 1080p 23.98Hz/24Hz 1280 x 720p 59.94Hz/60Hz 1280 x 720p 50Hz 720 x 576p 50Hz 720 x 576p 50Hz 720 x 480p 59.94Hz/60Hz 720 x 480p 59.94Hz/60Hz 640 x 480p 59.94Hz/60Hz ROG STRIX XG27UCG Series Gaming LCD Monitor 3-17...
  • Page 34 Aspect Control Resolution 3840 x 2160p 119.88/120Hz 3840 x 2160p 100Hz 3840 x 2160p 59.94Hz/60Hz 3840 x 2160p 50Hz 3840 x 2160p 29.97Hz/30Hz 3840 x 2160p 25Hz 3840 x 2160p 23.98Hz/24Hz 1920x1080p 119.88/120Hz 1920 x 1080p 100Hz 1920 x 1080p 59.94Hz/60Hz Square 1920 x 1080p 50Hz 1920 x 1080p 29.97Hz/30Hz...
  • Page 35 1280 x 720 59.94Hz/60Hz 1600 x 900 60Hz 1920 x 1080 59.94Hz/60Hz 1920 x 1080 119.88Hz 1920 x 1080 180Hz 1744 x 982 60Hz 1744 x 982 120Hz 1744 x 982 180Hz ROG STRIX XG27UCG Series Gaming LCD Monitor 3-19...
  • Page 36 Aspect Control Resolution 640 x 480 60Hz 640 x 480 75Hz 800 x 600 60Hz 800 x 600 75Hz 1024 x 768 60Hz 1024 x 768 75Hz 1280 x 1024 60Hz 1280 x 960 60Hz (deafult) Square 1280 x 720 59.94Hz/60Hz 1600 x 900 60Hz 1920 x 1080 59.94Hz/60Hz 1024 x 768 320Hz...
  • Page 37 1920 x 1080p 29.97Hz/30Hz 1920 x 1080p 25Hz Square 1920 x 1080p 23.98Hz/24Hz 1280 x 720p 59.94Hz/60Hz 1280 x 720p 50Hz 720 x 576p 50Hz 720 x 480p 59.94Hz/60Hz 640 x 480p 59.94Hz/60Hz ROG STRIX XG27UCG Series Gaming LCD Monitor 3-21...
  • Page 38 3-22 Chapter 3: General Instructions...
