Summary of Contents for POSITAL MCD-AV002-0412-R060-CAW

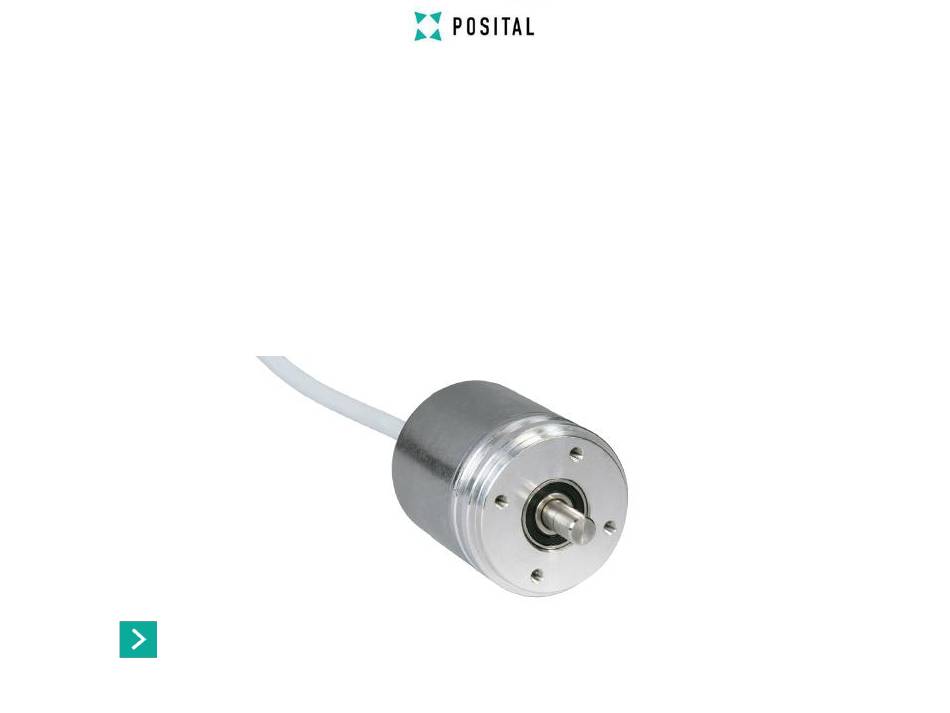

- Page 1 ABSOLUTE IXARC MAGNETIC ROTARY ENCODER WITH ANLALOG INTERFACE Sample: MCD-AV002-0412-R060-CAW...
- Page 2 1. Systematic Graph We need Analog IXARC, Power Supply and Multimeter Connect the Analog IXARC with 12-30VDC Power Supply Connect with meter to monitor Analog Output...
- Page 3 2. Wiring Be aware of the wire color. Connect them correctly according to the graph.
- Page 4 3. Displaying Mid of Default Scale outputs 5.0 VDC. Output reduces as the encoder rotates clockwise, the default direction.
- Page 5 4. Reset SET1 (Brown), SET2 (White). Apply ‘H’ signal pulse to SET1 and SET2 at the same position to Reset Mid of Default Scale Input ≥ 12V / Input ≤ Vs...
- Page 6 5. Scaling Connect SET1 signal to high level for 1 second at the start position. Connect SET2 signal to high level for 1 second at the end position. Measurement Direction can be altered through Scaling Function.
